You Are Buying
Brand: ISUMO
Aftermarket Premium High Quality

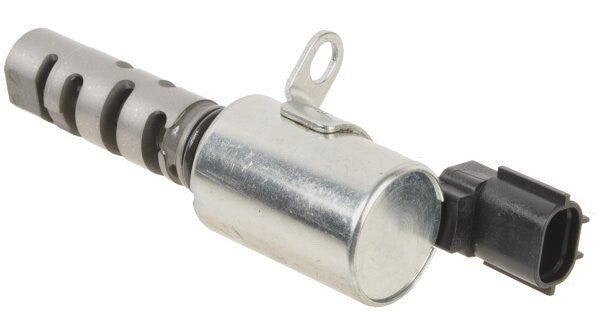

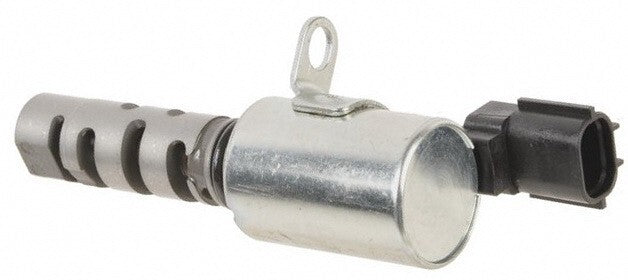

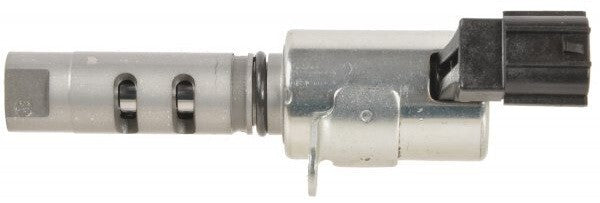

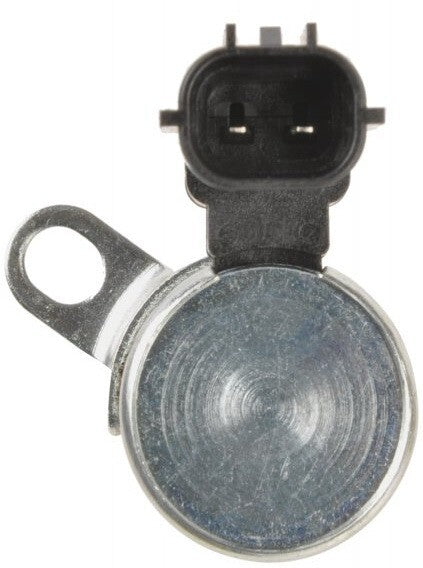

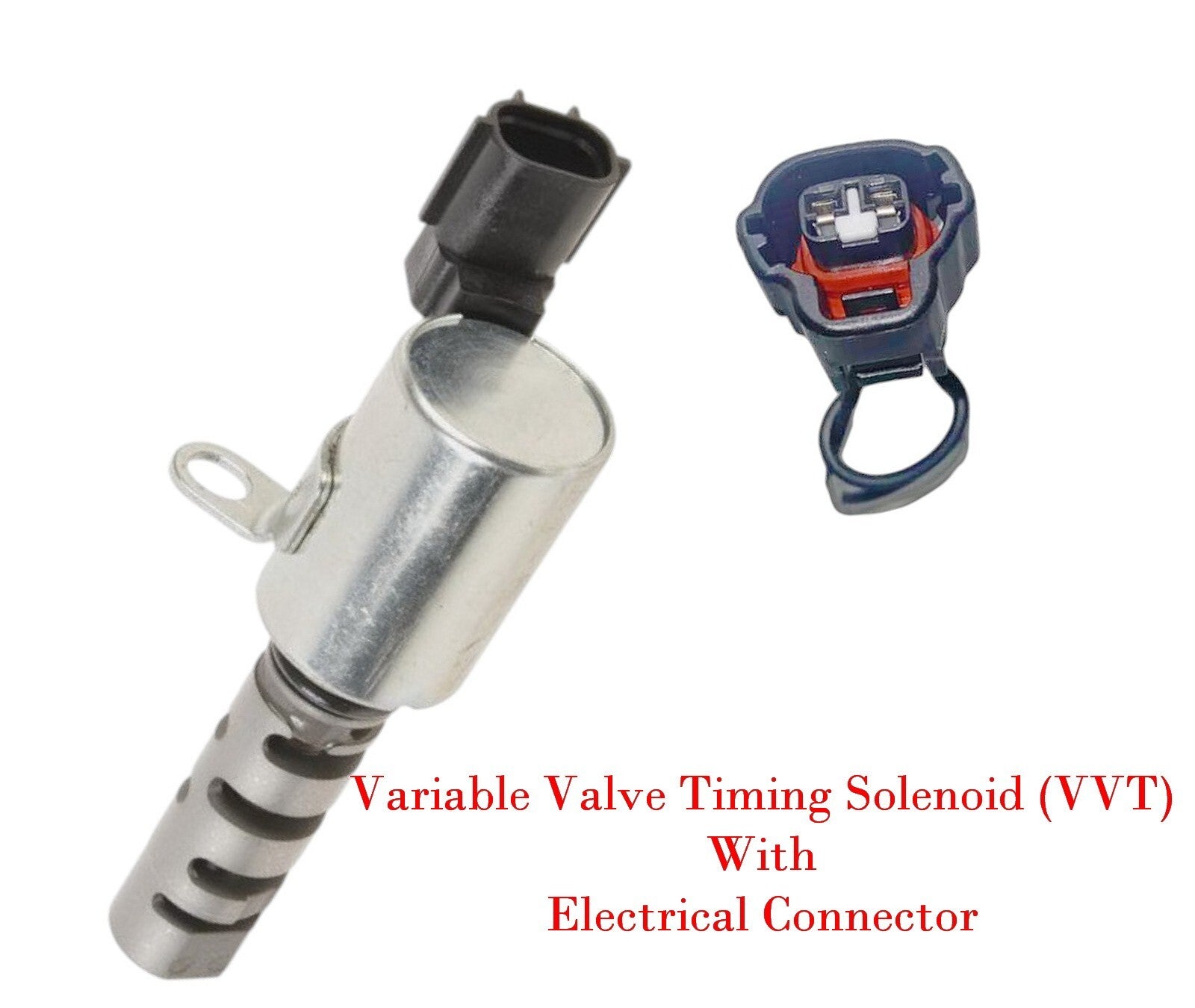

Engine Variable Timing Solenoid Actuator
With

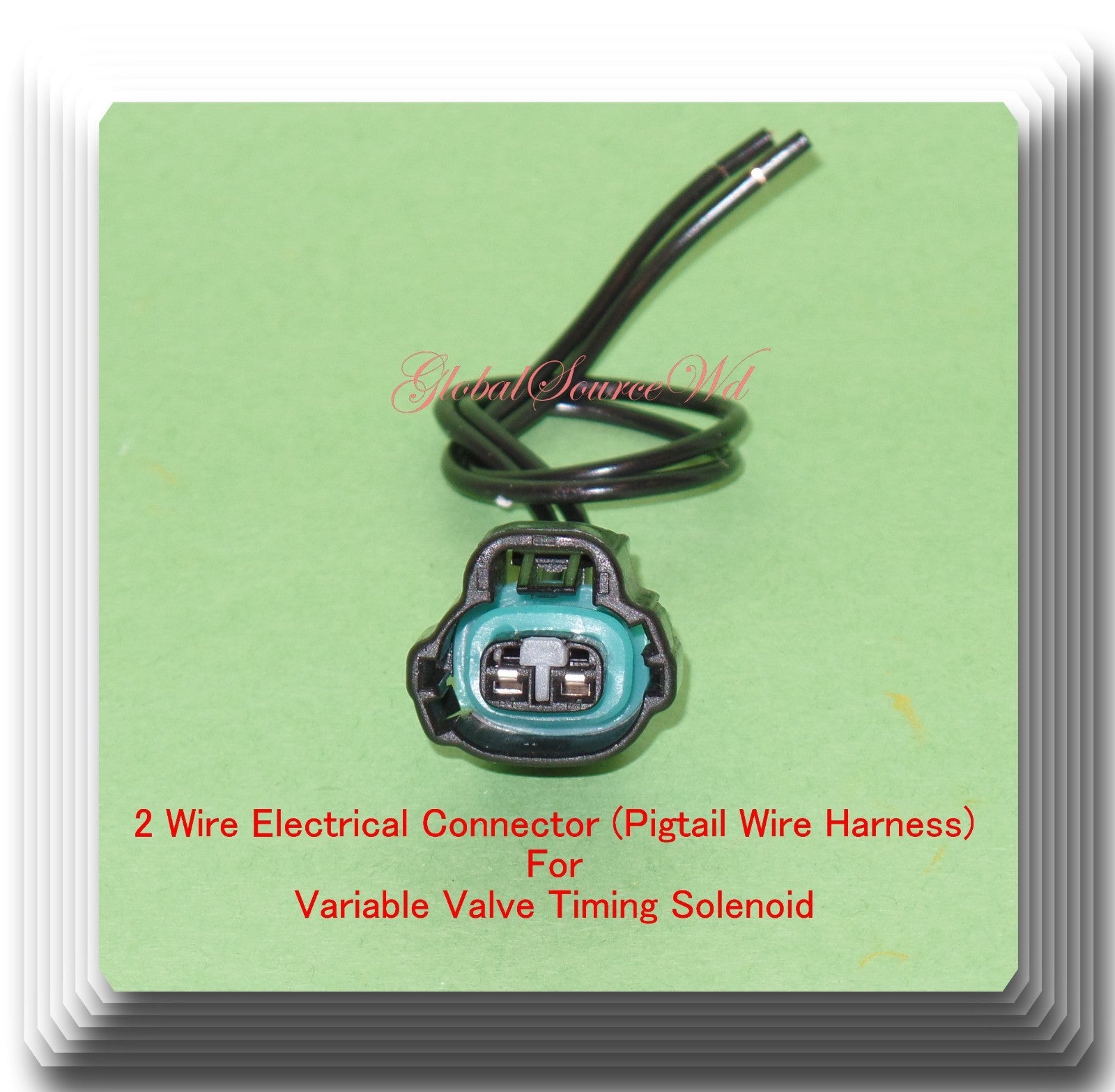

Electrical Connector
(Pigtail Wiring Harness)
Quantity: 1 Kit
=============
PART#
VVT4162
=========
Cross-Reference
VVT162
1533021010
15330-21010
1533021011
15330-21011
1533021020
1S2234
SW2401
TS1091
2T1091
917-210
917210
VTS1010
0241959
024-1959
2VTS0006
=========
Specifications:
| Terminal Quantity | 2 |
| Terminal Type | Blade |
| Terminal Gender | Male |
| Number of Connectors | 1 |
| Connector Gender | Female |
| Contents | SOLENOID |
| Activation Style | Electromagnetic |
| Voltage (VAC) | 12 |
| Gasket/Seal Included | Yes |
| Housing Material | Steel |
| Overall Height (in) | 1.126 |
| Overall Height (MM) | 28.6 |
| Overall Length (IN) | 4.843 |
| Overall Length (mm) | 123 |
| Overall Width (in) | 1.126 |
| Overall Width (MM) | 28.6 |
| Shaft Diameter (in) | 0.709 |
| Shaft Diameter (mm) | 18 |
| Mounting Bolt Included | No |
| Electrical Connector | Included |
===================================
Fits:
| SCION | XA | 2004-2006 |
| SCION | XB | 2004-2006 |
| TOYOTA | ECHO | 2000-2005 |
| TOYOTA | PRIUS | 2001-2009 |
| TOYOTA | YARIS | 2006-2017 |
| TOYOTA | YARIS IA | 2017 |
=========================
The Variable Valve Timing Solenoid alters the supply of oil pressure to the camshaft depending on the speed and load of the engine and can either advance or retard cam position which provides several benefits, including improved engine operation, increased engine power reduced fuel consumption and decreased emissions. Holstein focuses on using only the highest quality materials, manufactured to exacting standards for an aftermarket product that is truly built to match or exceed the OE part.
Features & Benefits:
Features & Benefits:
====================
Made with reinforced materials to protect against sludge build-up and oil leaks
Each unit is tested to ensure correct flow and oil pressure to maximize performance
Premium O-rings and gaskets are used to enhance product life and reliability
Made with reinforced materials to protect against sludge build-up and oil leaks
Each unit is tested to ensure correct flow and oil pressure to maximize performance
Premium O-rings and gaskets are used to enhance product life and reliability
==================================================
El solenoide de sincronización variable de la válvula altera el suministro de presión de aceite al árbol de levas dependiendo de la velocidad y la carga del motor y puede avanzar o retrasar la posición de la leva, lo que proporciona varios beneficios, que incluyen una mejor operación del motor, mayor potencia del motor, menor consumo de combustible y menores emisiones. . Holstein se enfoca en usar solo materiales de la más alta calidad, fabricados de acuerdo con los estándares más exigentes para un producto del mercado de accesorios que está verdaderamente diseñado para igualar o superar la parte de equipo original.
==========================================================================
Características y beneficios:
Hecho con materiales reforzados para proteger contra la acumulación de lodos y fugas de aceite.
Cada unidad se prueba para garantizar el flujo correcto y la presión de aceite para maximizar el rendimiento
Se utilizan juntas tóricas y juntas de primera calidad para mejorar la vida útil y la confiabilidad del producto
Características y beneficios:
Hecho con materiales reforzados para proteger contra la acumulación de lodos y fugas de aceite.
Cada unidad se prueba para garantizar el flujo correcto y la presión de aceite para maximizar el rendimiento
Se utilizan juntas tóricas y juntas de primera calidad para mejorar la vida útil y la confiabilidad del producto
=================
Brand: ISUMO
Aftermarket Premium High Quality
Engine Variable Timing Solenoid Actuator
With Electrical Connector(Pigtail Wire Harness) S1716
1 Kit
==================================
PART#
VVT4162
=========
Compatible with the following part numbers
VVT162
1533021010
15330--21010
1533021011
15330-31011
1533021020
15330-3102
1S2234
SW2401
TS1091
2T1091
917-210
917210
VTS1010
============
Specifications:
| Connector Gender | Female |
| Connector Quantity | 1 |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Blade |
============================
Fits:
| SCION | XA | 2004-2006 |
| SCION | XB | 2004-2006 |
| TOYOTA | ECHO | 2000-2005 |
| TOYOTA | PRIUS | 2001-2009 |
| TOYOTA | YARIS | 2006-2016 |
=======================================
