You are Buying
Brand: ISUMO
aftermarket High Premium Quality

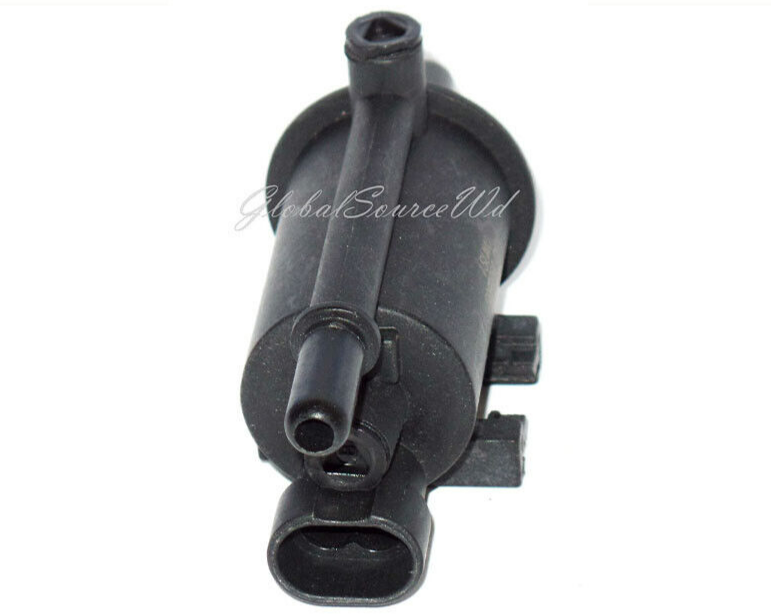

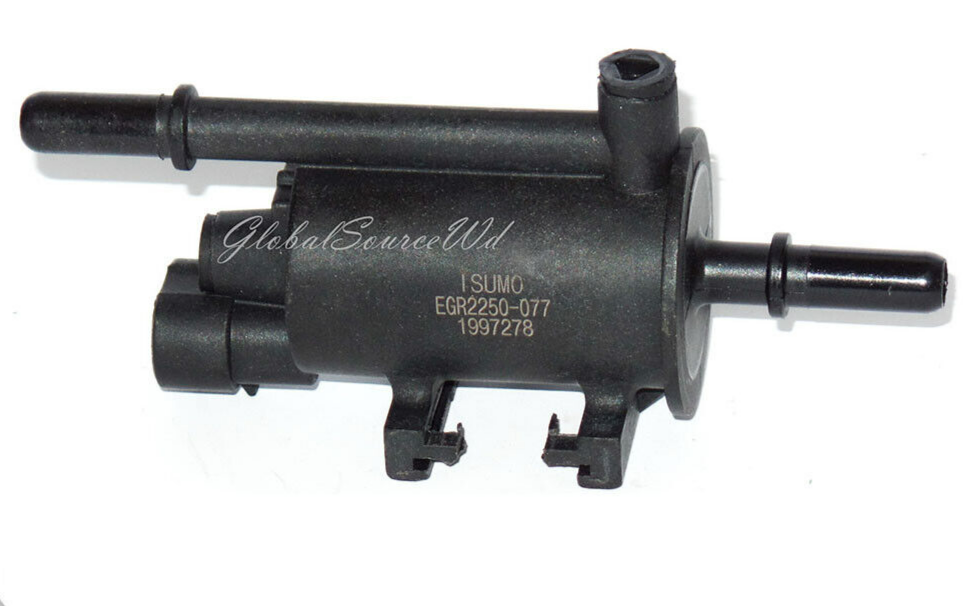

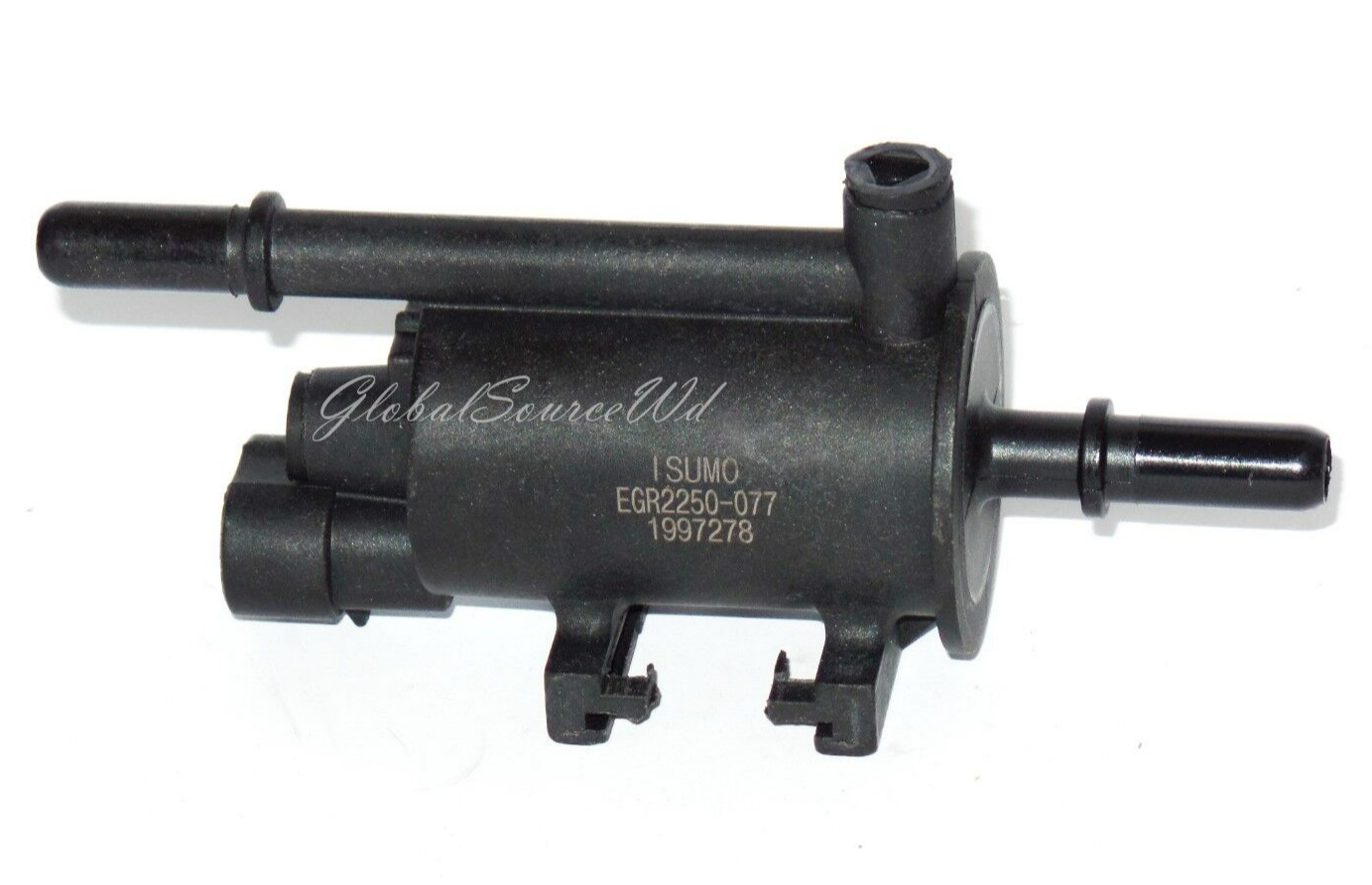

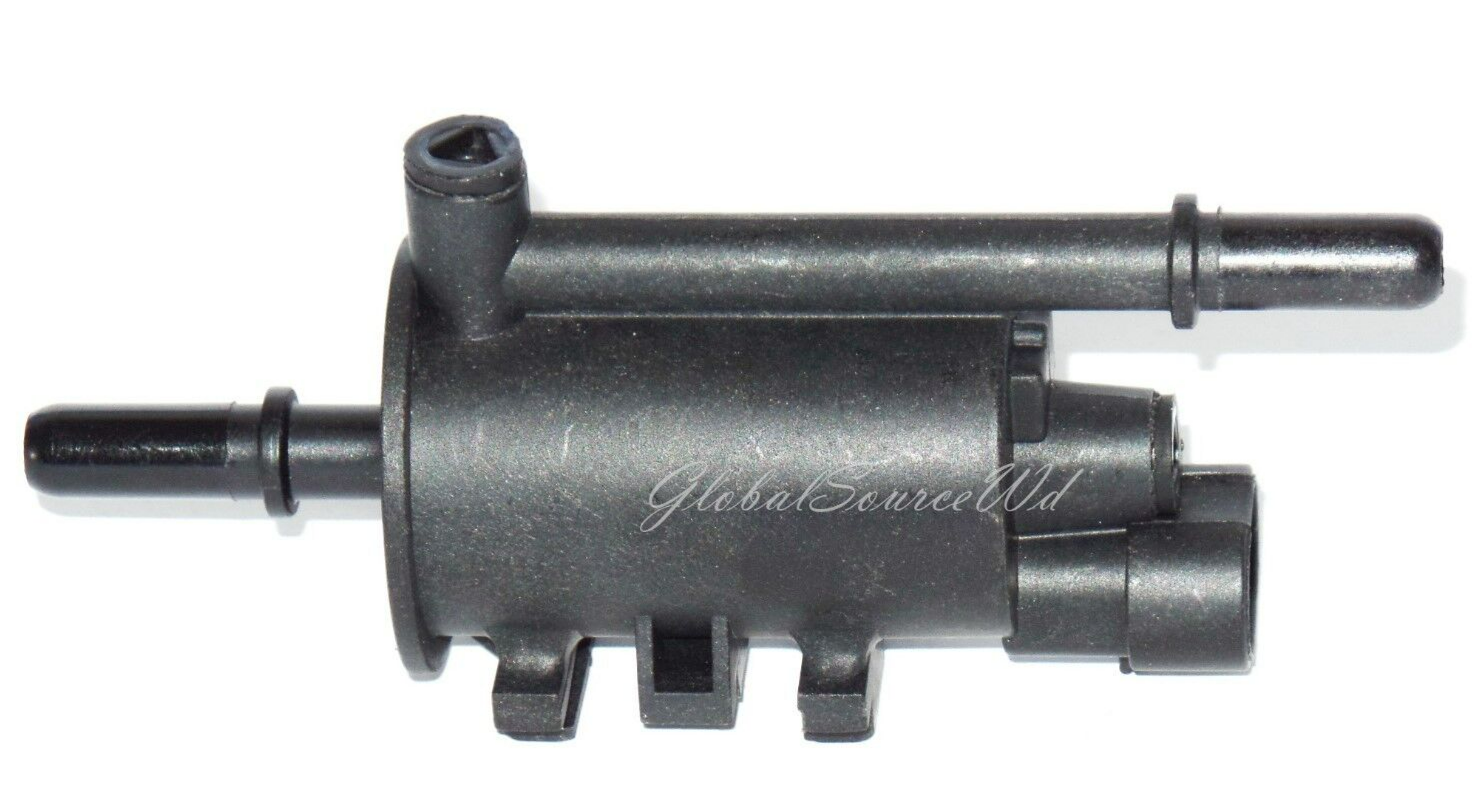

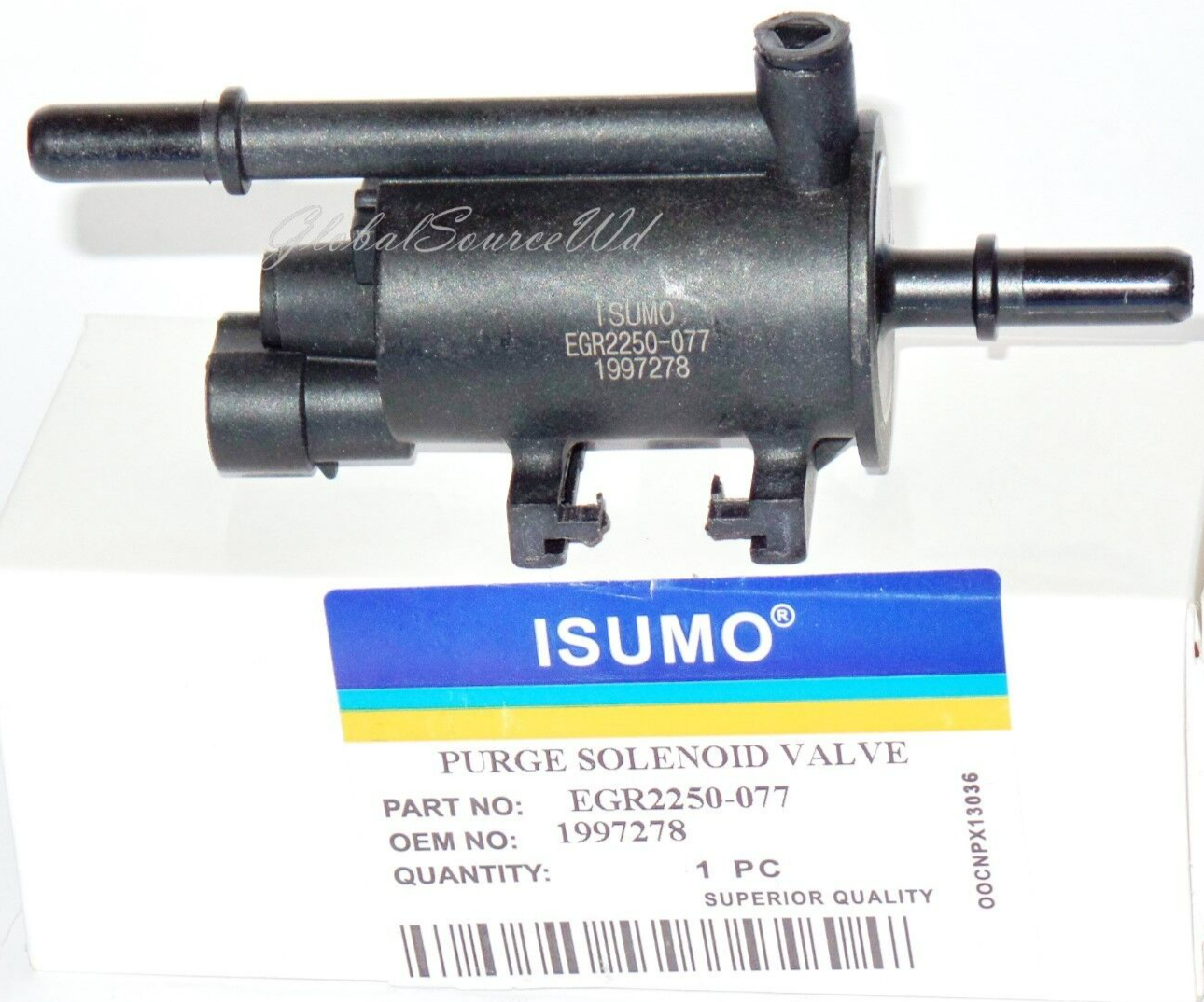

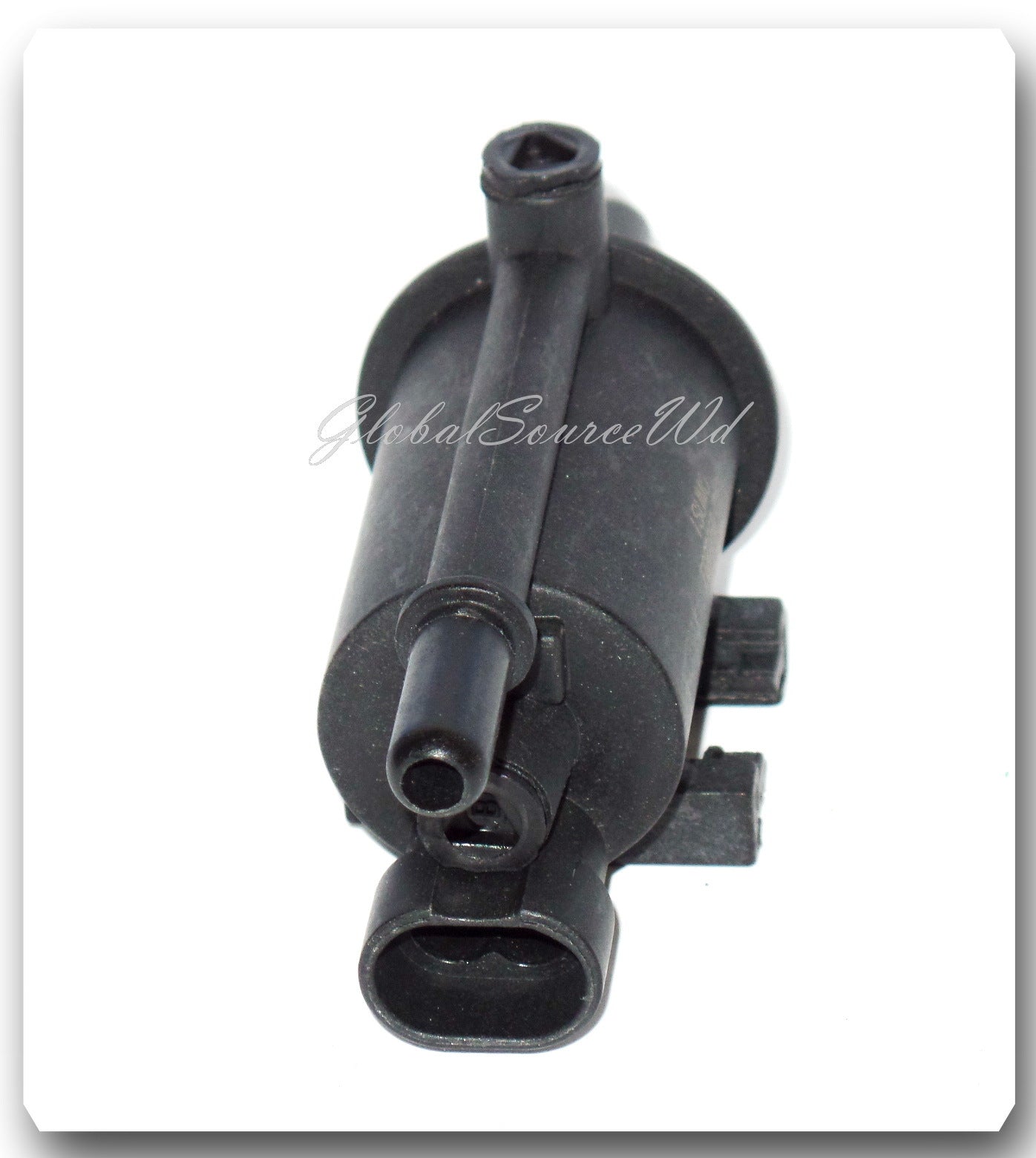

Vapor Canister Purge Valve / Solenoid

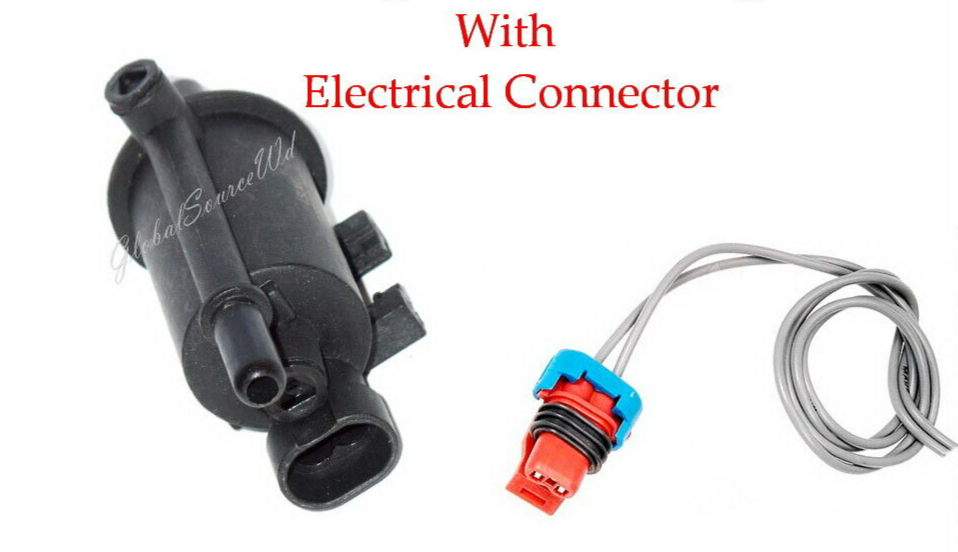

With

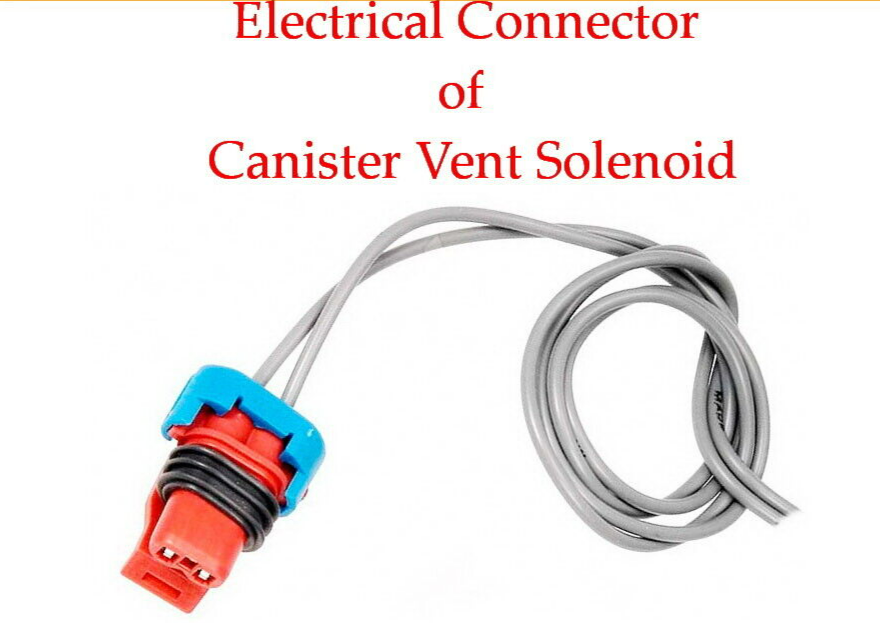

Electrical Connector S1350
(Pigtail Wiring Harness)
Quantity: 1 Piece
===============
Part#
1997278
EC1127
=======
Cross-Reference 1997286, 1997289, 1997301, 96553403
13906801143
13907572086
1997251
1997278
1997286
1997301
2142093
214641
215641
228245
2M1130
CP412
96553403
PV146
PV496
EGR2250-077
EGR2077
===========
Specifications:
| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Shape | Oblong |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | PIN |
| Vacuum Port Diameter | 0.310 In. |
| Vacuum Port Quantity | 2 |
================
Fits:
| BUICK | LESABRE | 1999-2005 |
| BUICK | PARK AVENUE | 1998-2005 |
| BUICK | RAINIER | 2004 |
| BUICK | REGAL | 1998-2004 |
| BUICK | RIVIERA | 1998-1999 |
| CADILLAC | CTS | 2004-2005 |
| CADILLAC | DEVILLE | 1998-1999 |
| CADILLAC | ELDORADO | 1997-1999 |
| CADILLAC | SEVILLE | 1997-1999 |
| CHEVROLET | AVEO | 2004-2009 |
| CHEVROLET | AVEO5 | 2006-2008 |
| CHEVROLET | CAMARO | 1997-2002 |
| CHEVROLET | CAVALIER | 1999-2005 |
| CHEVROLET | CLASSIC | 2004-2005 |
| CHEVROLET | CORVETTE | 1997-2004 |
| CHEVROLET | IMPALA | 2000-2005 |
| CHEVROLET | LUMINA | 1998-1999 |
| CHEVROLET | MALIBU | 1999 |
| CHEVROLET | MONTE CARLO | 1998-2005 |
| CHEVROLET | S10 PICKUP | 2000-2003 |
| CHEVROLET | SSR | 2003-2004 |
| CHEVROLET | TRAILBLAZER | 2002-2004 |
| GMC | ENVOY | 2002-2004 |
| GMC | SONOMA | 2000-2002 |
| MINI | COOPER | 2002-2008 |
| OLDSMOBILE | ALERO | 1999-2004 |
| OLDSMOBILE | AURORA | 1998-1999 |
| OLDSMOBILE | BRAVADA | 2002-2004 |
| OLDSMOBILE | INTRIGUE | 1998-1999 |
| OLDSMOBILE | LSS | 1998-1999 |
| PONTIAC | BONNEVILLE | 2000-2005 |
| PONTIAC | FIREBIRD | 1998-2002 |
| PONTIAC | GRAND AM | 2000-2005 |
| PONTIAC | GRAND PRIX | 1998-2003 |
| PONTIAC | GTO | 2004 |
| PONTIAC | SUNFIRE | 1999-2005 |
| SAAB | 3-Sep | 2003-2009 |
| SAAB | 9-3X | 2010-2011 |
| SATURN | ION | 2003 |
| SATURN | L SEDAN | 2001-2003 |
| SATURN | L300 | 2004 |
| SATURN | LW WAGON | 2001-2003 |
==================================
Also known as the Emission Control Canister Purge Solenoid, the Vapor Canister Purge Solenoid/Valve allows fuel vapor flow from the EVAP system. It transfers fuel vapors stored in the vapor canister into the engine's intake system by opening and closing as commanded by the engine's computer system. The solenoid is normally closed to prevent fuel vapors from entering the engine during a non-purge condition.
----------------------------------------------
The vent solenoid, located near the EVAP canister inside a wheel well or under the vehicle near the fuel tank, usually fails before the purge solenoid. The purge solenoid will fail closed or will fail by sticking partially open illuminating a check engine light. When illuminated, common failure modes are:
Electrical failure of the purge valve control circuit
Electrical failure of the purge solenoid
Vacuum line leaks
Plugged vacuum line
ISUMO Vapor Canister Purge Solenoids/Valves are an exact match of OE specifications
========================================================================
También conocido como solenoide de purga del bote de control de emisiones, el solenoide / válvula de purga del bote de vapor permite el flujo de vapor de combustible desde el sistema EVAP. Transfiere los vapores de combustible almacenados en el bote de vapor al sistema de admisión del motor abriendo y cerrando como lo ordena la computadora del motor El solenoide normalmente está cerrado para evitar que los vapores de combustible ingresen al motor durante una condición de no purga.
----------------------------------------------
El solenoide de ventilación, ubicado cerca del recipiente de EVAP dentro de un pozo de rueda o debajo del vehículo cerca del tanque de combustible, generalmente falla antes del solenoide de purga. El solenoide de purga fallará al cerrarse o fallará al permanecer parcialmente abierto iluminando una luz de verificación del motor. , los modos de falla comunes son:
Falla eléctrica del circuito de control de la válvula de purga.
Falla eléctrica del solenoide de purga.
Fugas de la línea de vacío
Línea de vacío tapada
Las electroválvulas / solenoides de purga de vapor ISUMO coinciden exactamente con las especificaciones de OE
===================
