You Are Buying
Premium High Quality

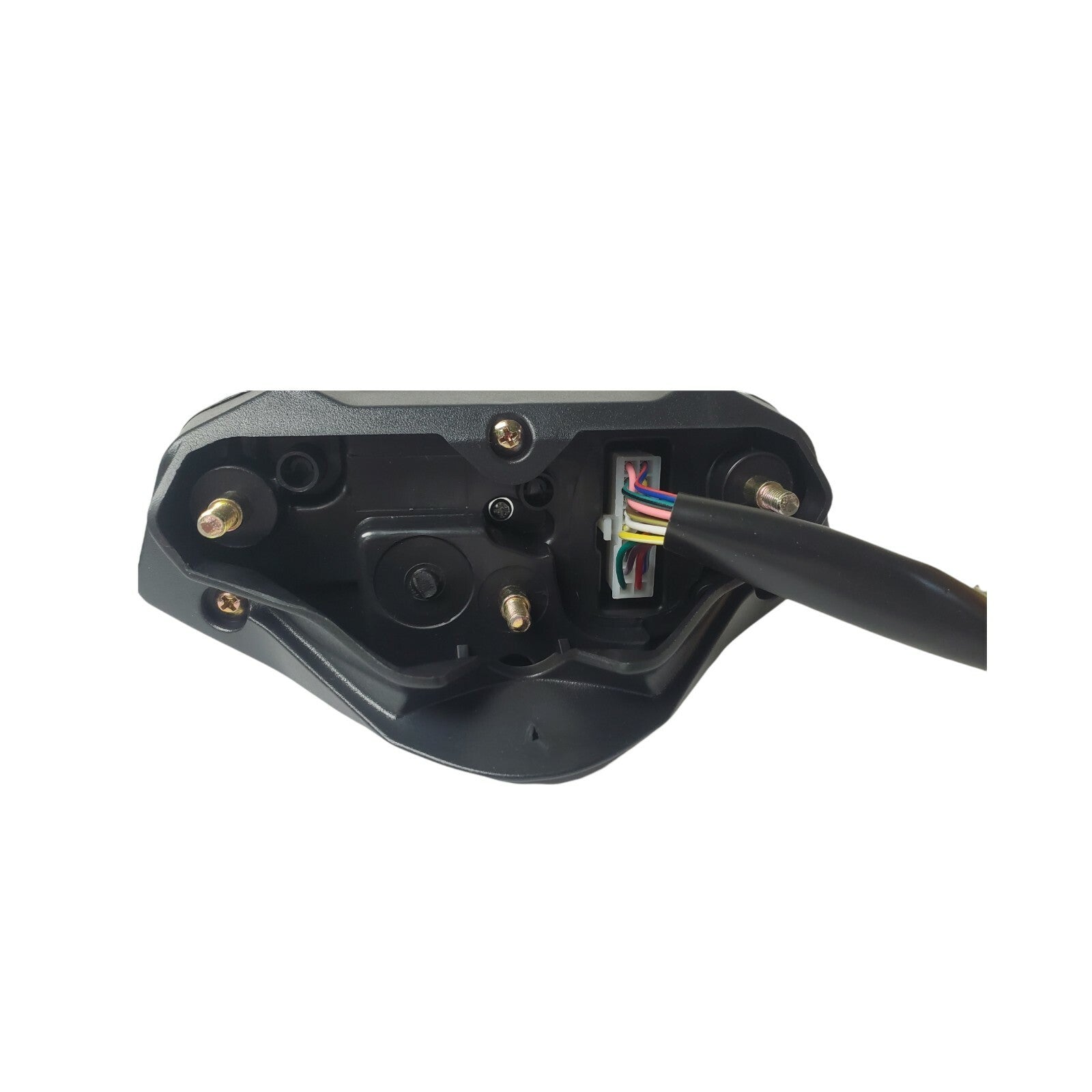

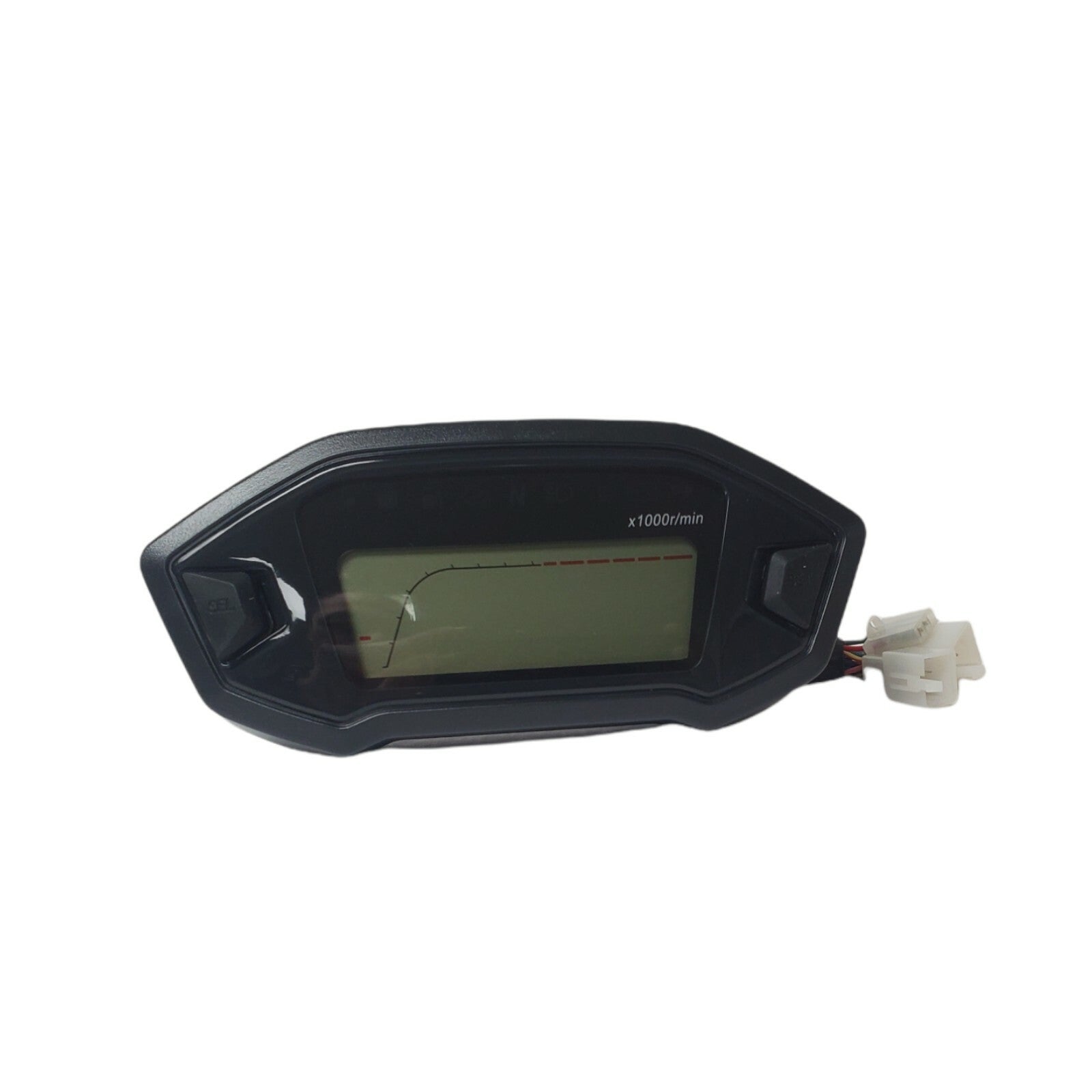

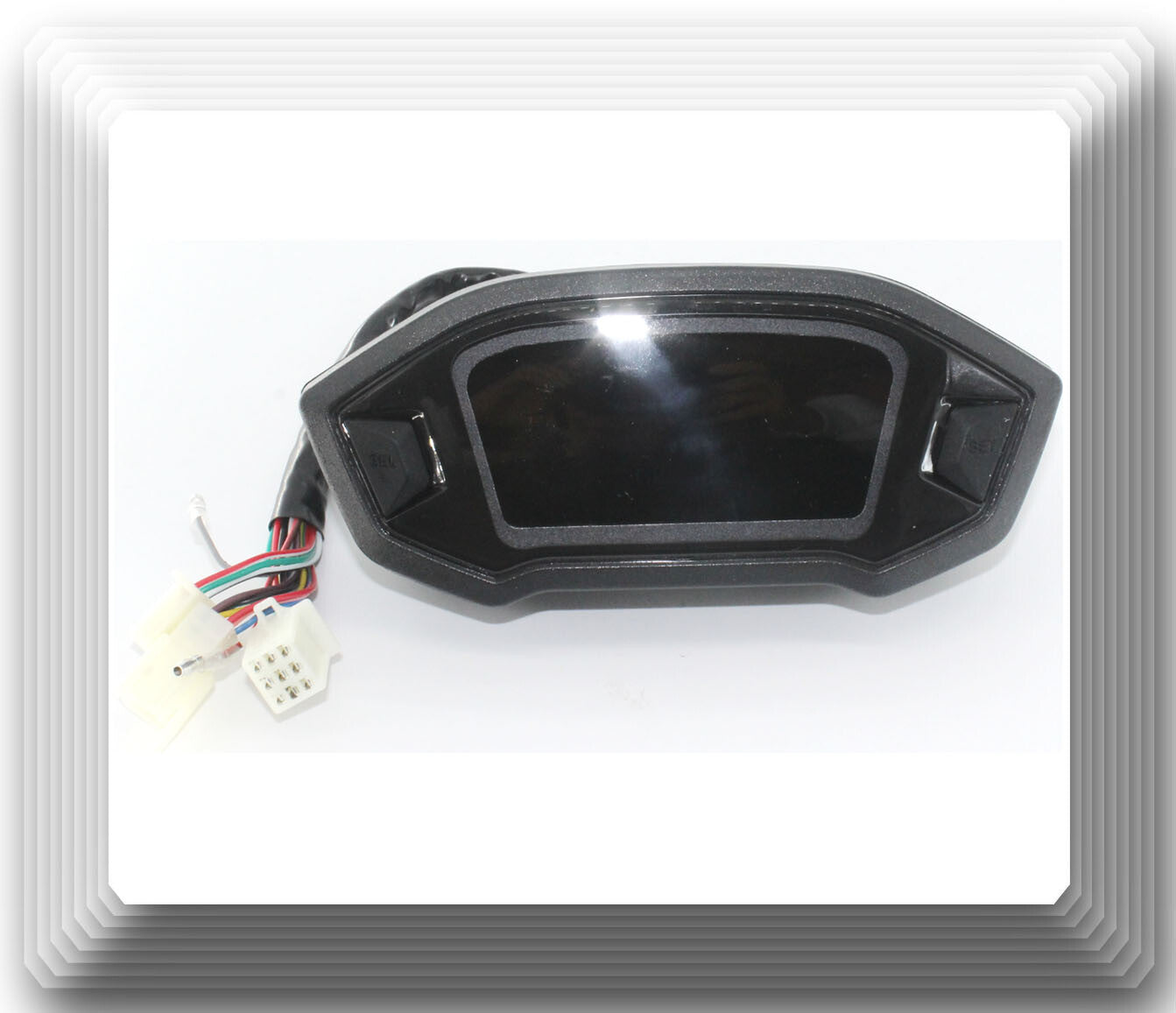

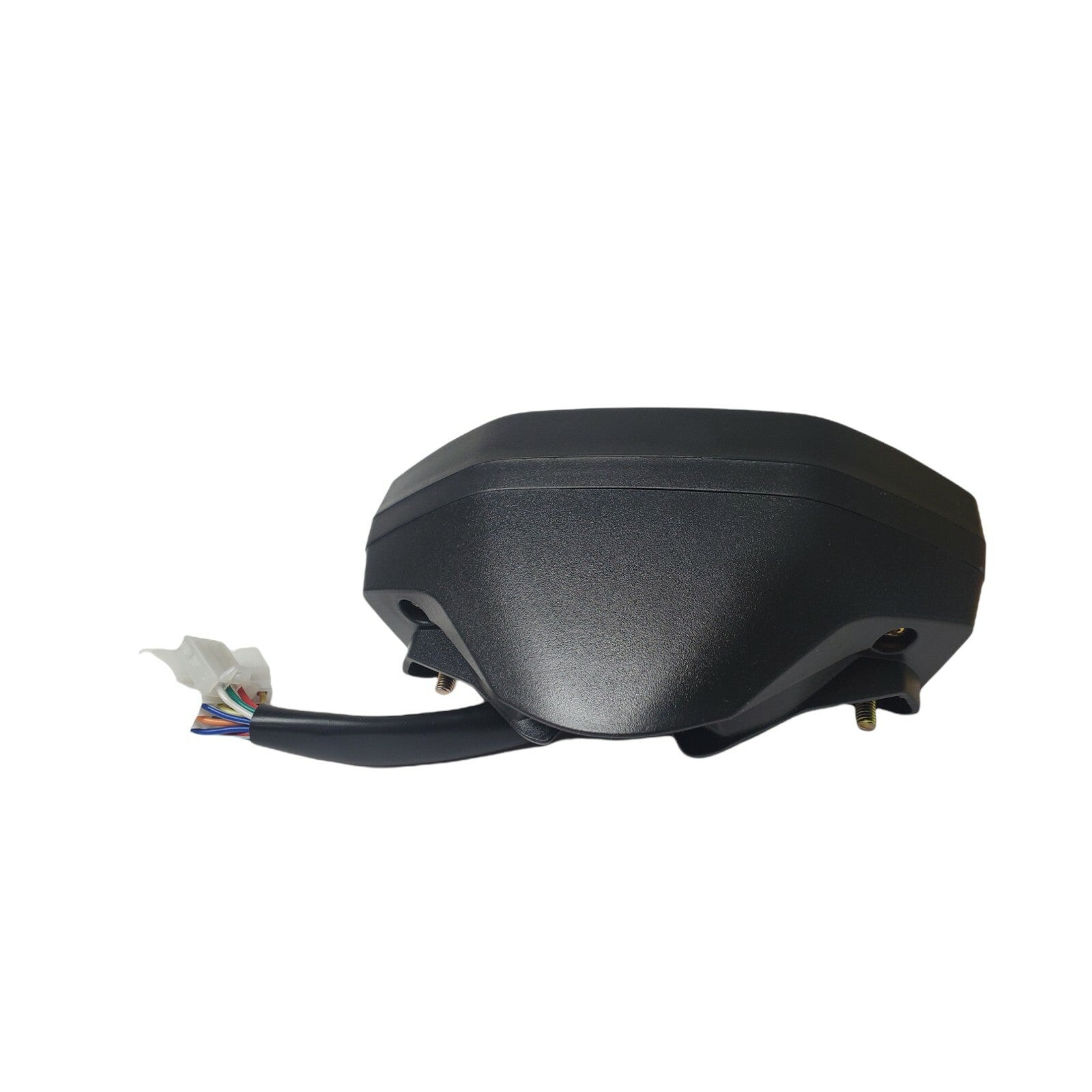

Universal LCD Digit Motorcycle Speedometer
Gauge Tachometer Odometer
=========================
Part#
0D014
=======
| Features: |
| Km and Miles are adjustable |
| The clear backlight shows that it can be viewed easily in every Angle of the dark |
| The engine has a hazard warning |
| Show time |
| Full stroke distance |
| Waterproof, sunscreen, durable |
| Easy to install and easy to operate |
| Specification: power supply voltage: 10V-15V |
| Speed display: km/h |
| Gear: 1/2/3/4 gear |
| Equipment:
for most DC12V motorcycles. ================================== |
| Specifications: |
| Working voltage:10V-15V |
| Speed calibration:42.5Hz corresponds to 60KM / H |
| Speed calibration:166Hz corresponds to 10 * 1000r / min |
| Fuel Calibration: E point 98Ω, F point 8Ω |
| Voltage: Below
11.3V Under voltage symbol flashes, Above 11.7V Under voltage symbol is not displayed |

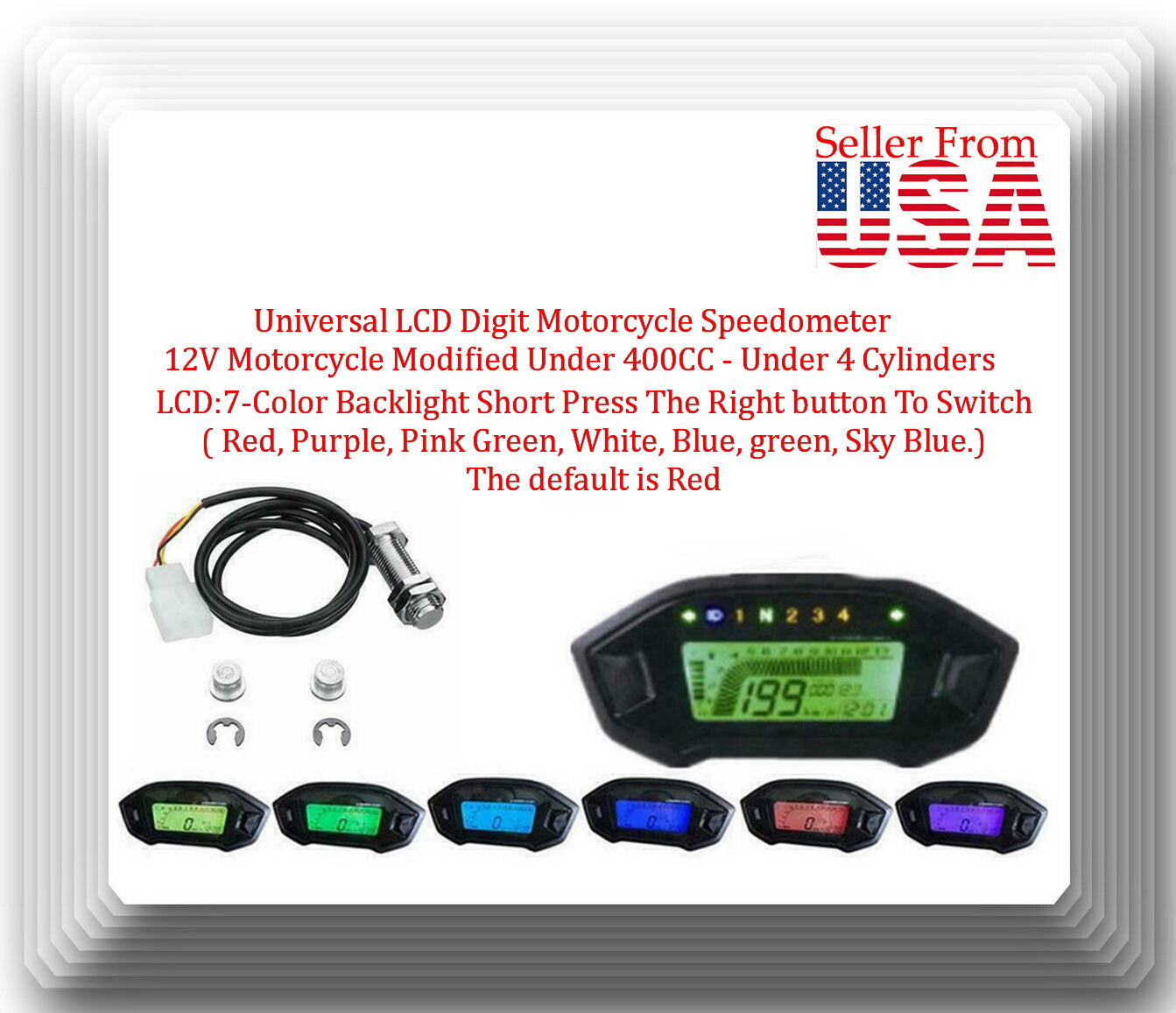

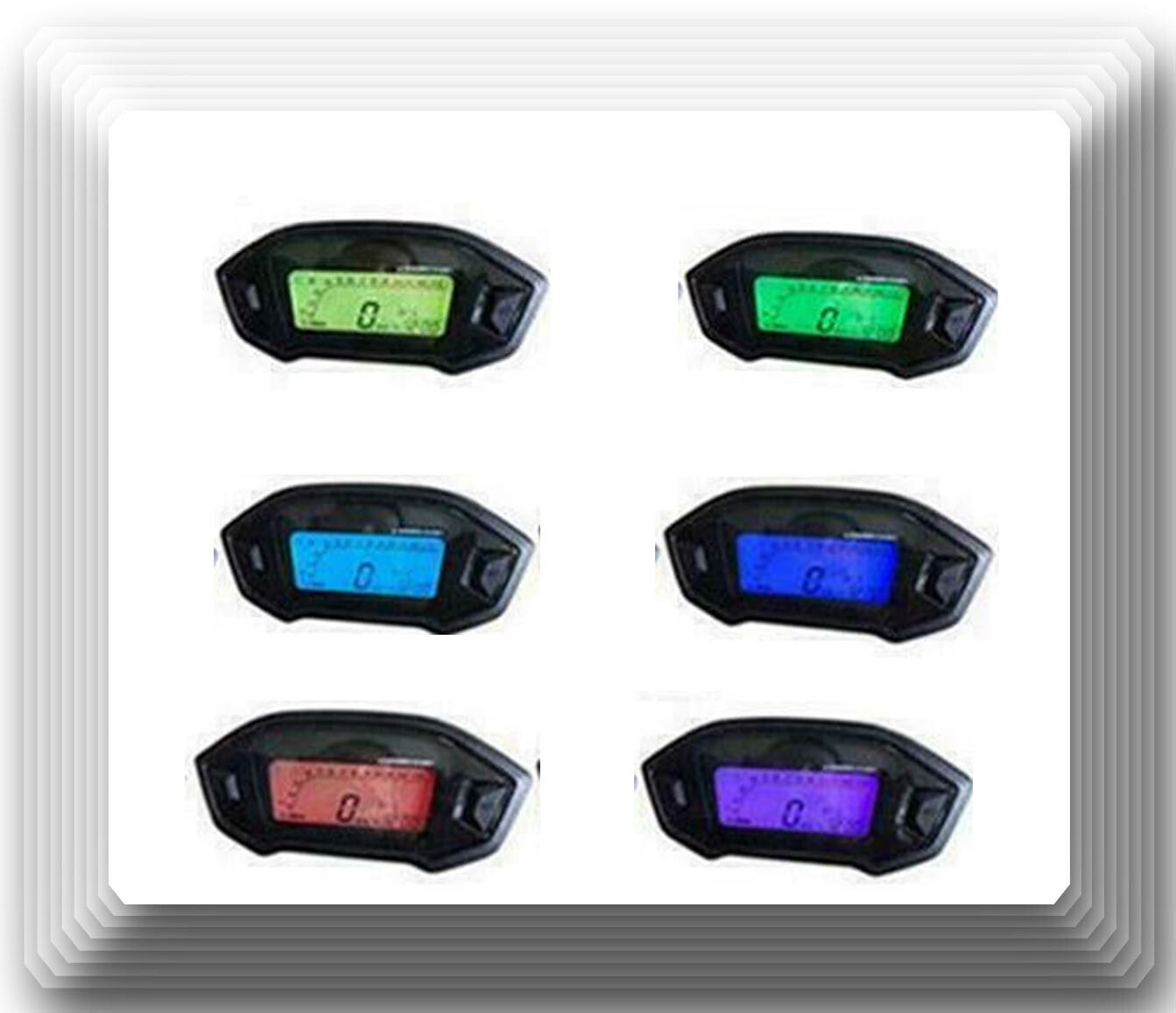

| LCD:7-color
backlight Short press the right button to switch Red, Purple, Pink Green, White, Blue, Green, Sky Blue. (The Default Is Red) |
| Applicable
models: 12V motorcycle modified under 400CC under 4 cylinders =============================================================== |

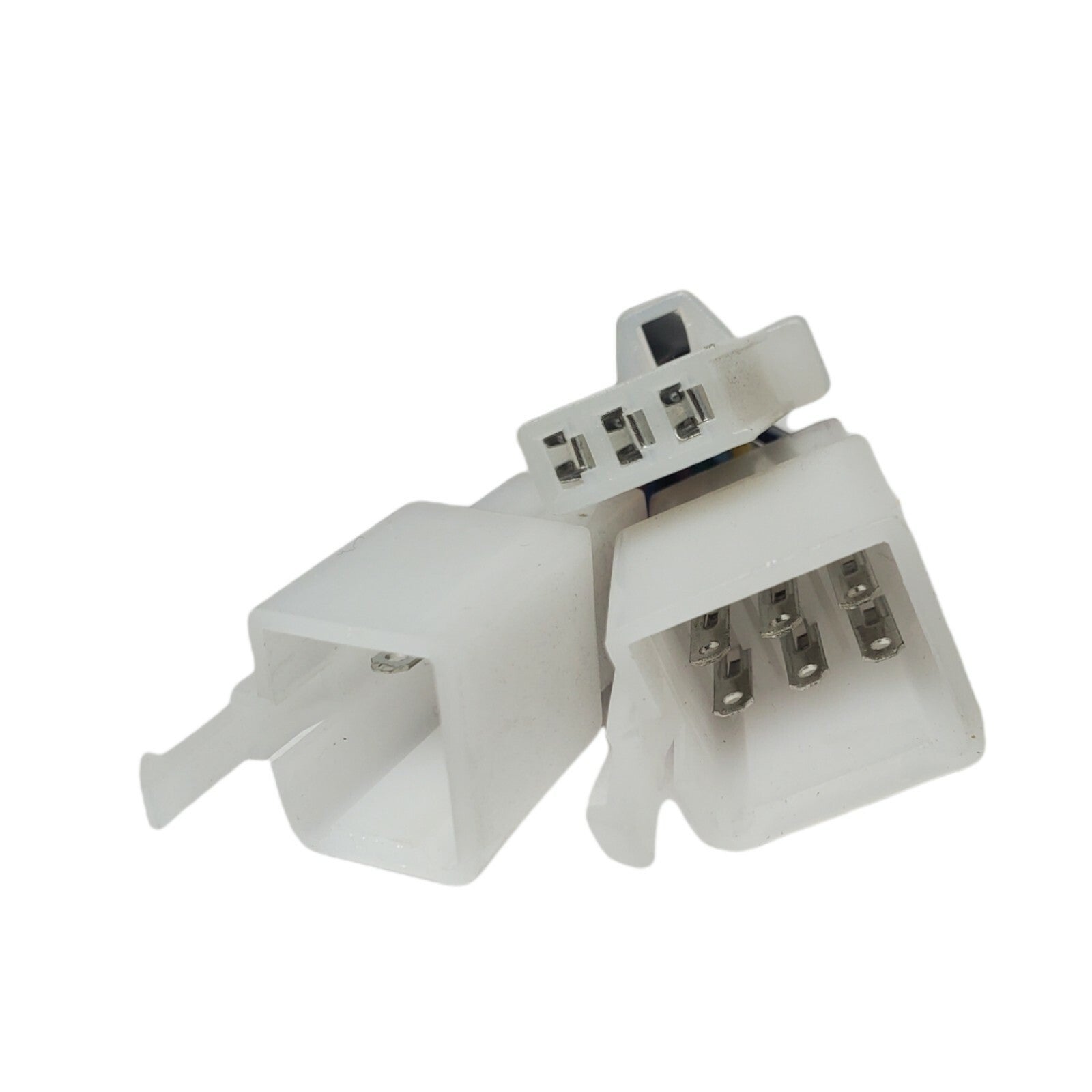

| Instructions: |
| Light Blue: Turn Right, 12V positive control Green / red: N file |
| Blue / Yellow: Speed signal Line Pink: 1 file |
| Red: Battery positive Blue / red: 2 files |
| Blue: High beam, 12V positive control Green / black: 3 files |
| Green: Negative Yellow / Red: 4 files |
| Orange: left turn, 12V positive Yellow / white: 5 files |
| Blue and white: fuel signal line |
| Black: Positive |
| Yellow: Sensor positive |
| Green: Sensor negative |
| Black
/ white: sensor signal ======================== |
| Notes: |
| Support Android phone has OTG and UVC function. |
| Due to the light and screen setting difference, the item's color may be slightly different from the pictures. |
| Please
allow slight dimension difference due to different manual measurement. ================================================================= |

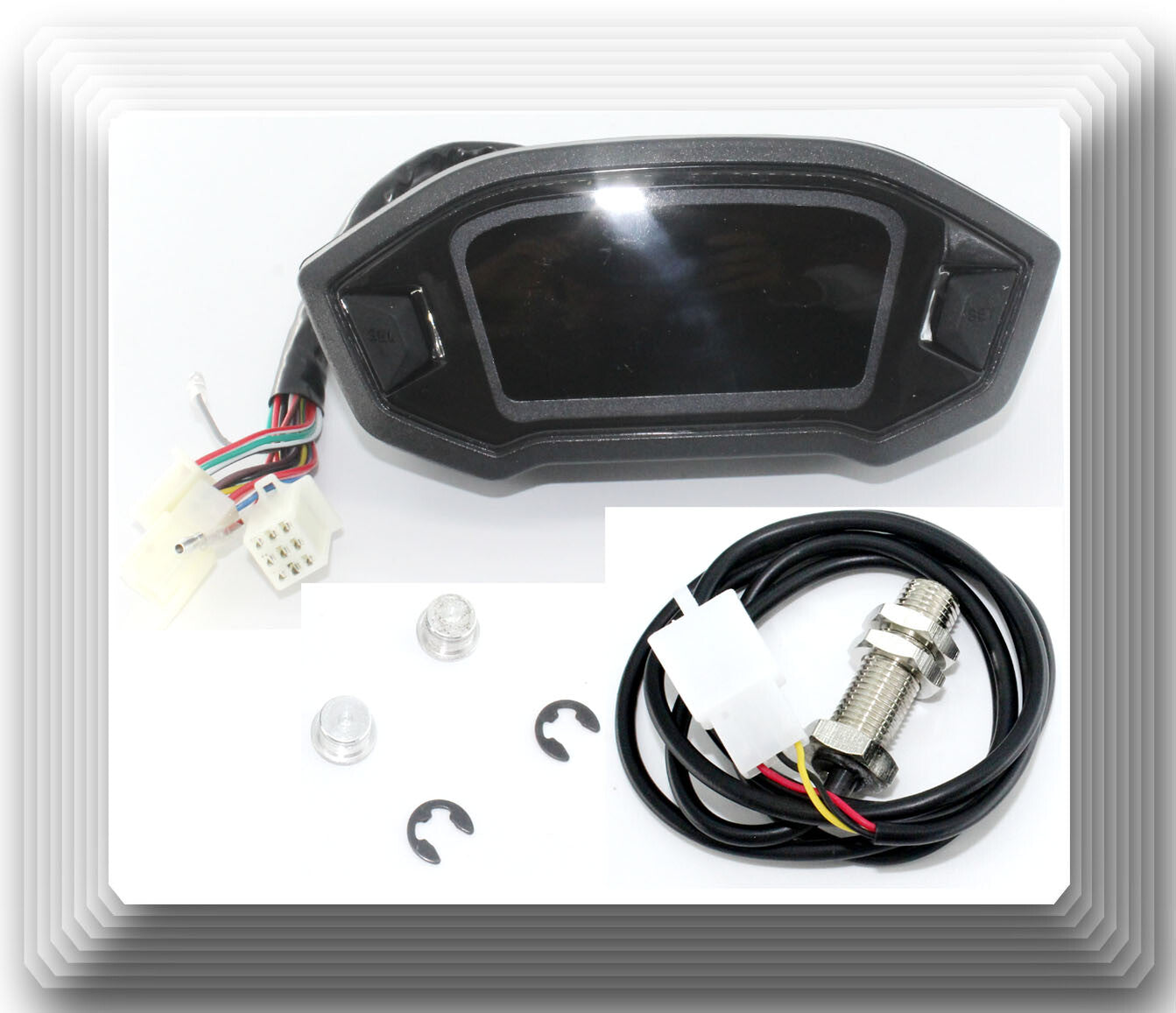

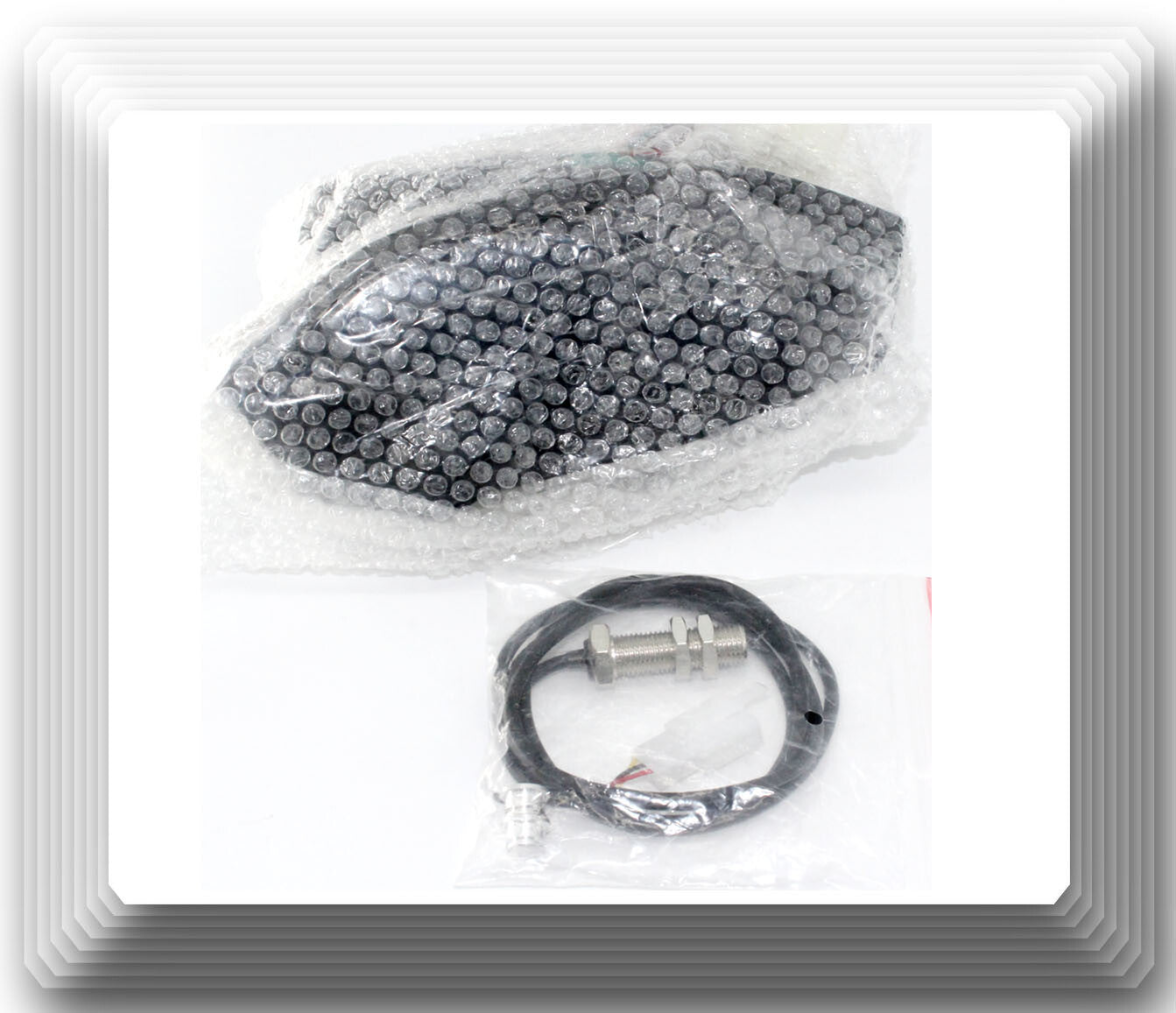

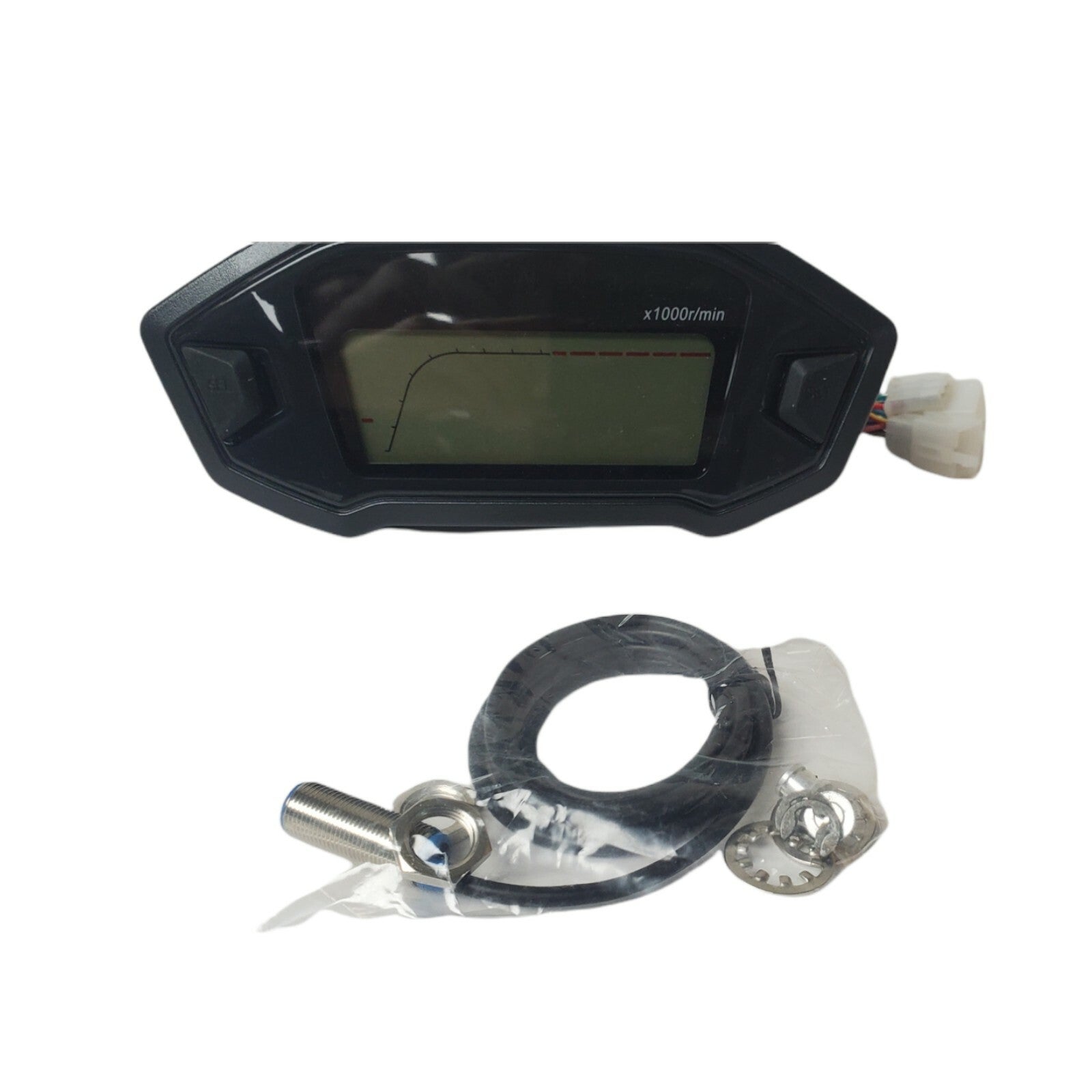

| Package Included: |
| 1 X LCDS |

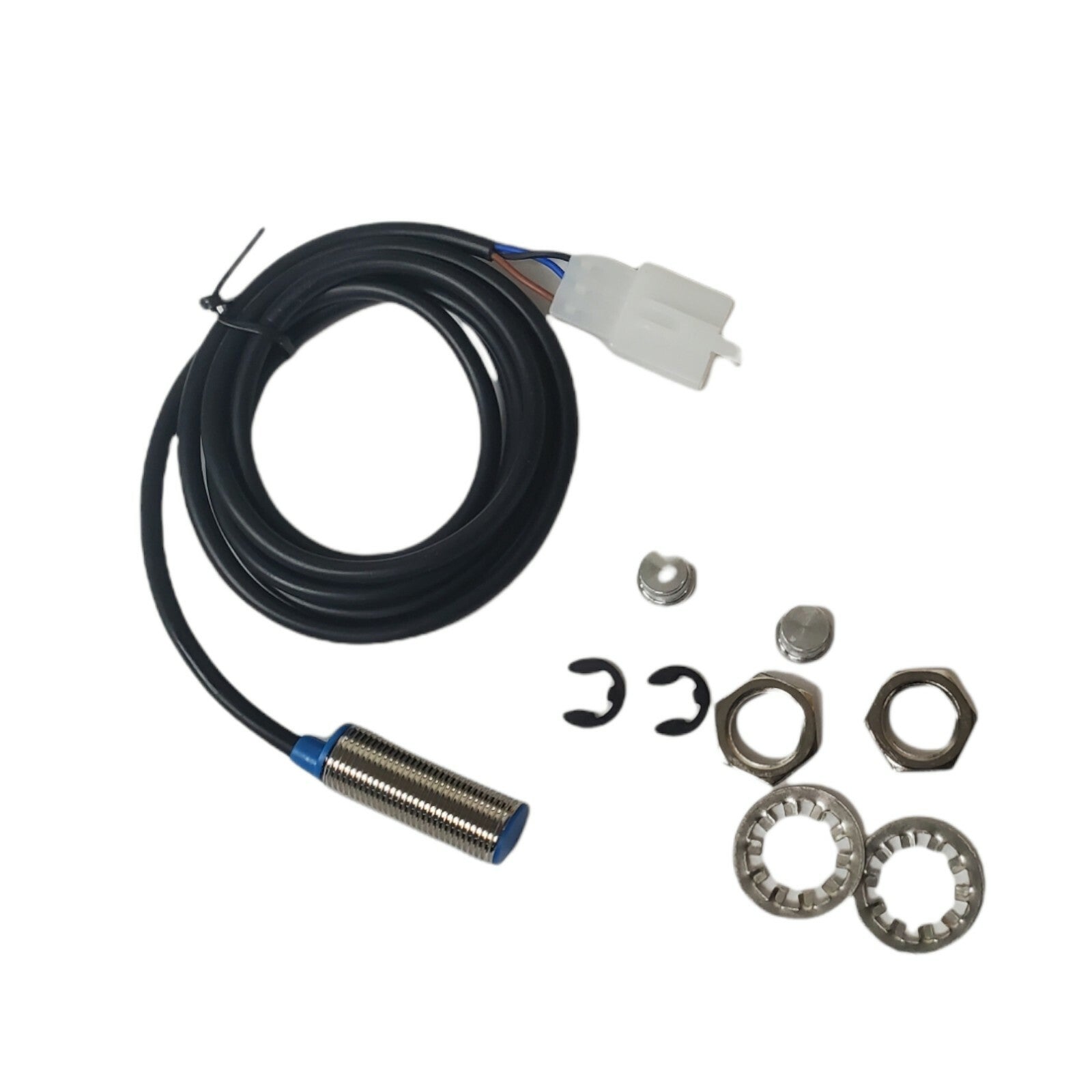

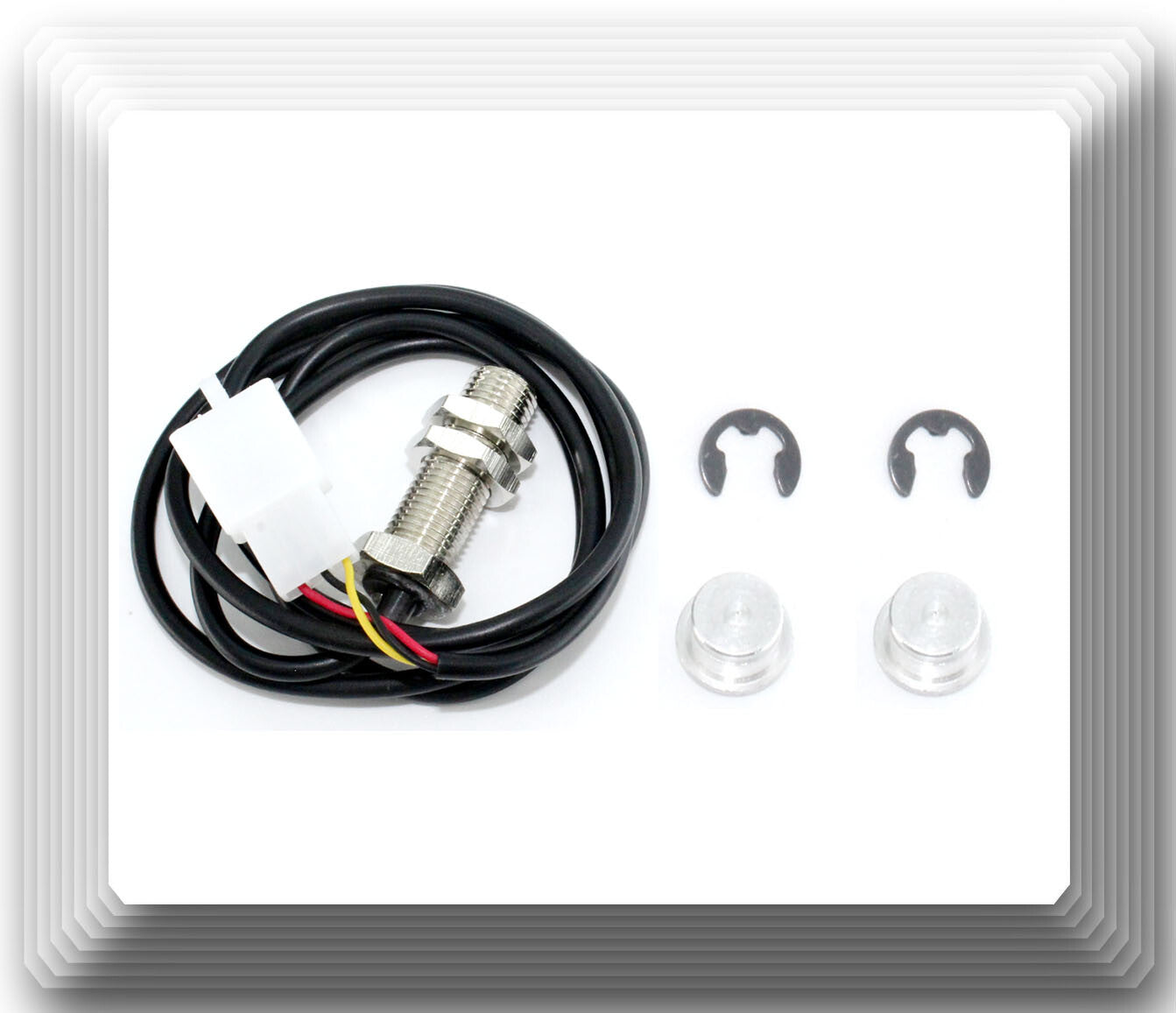

| 1 X sensor |
