You are Buying:
Brand: ISUMO
Registered Trade Mark In USA
Designed to meet or exceed OE specifications
====================================
Quantity: Total 2 Pieces
==============
Description

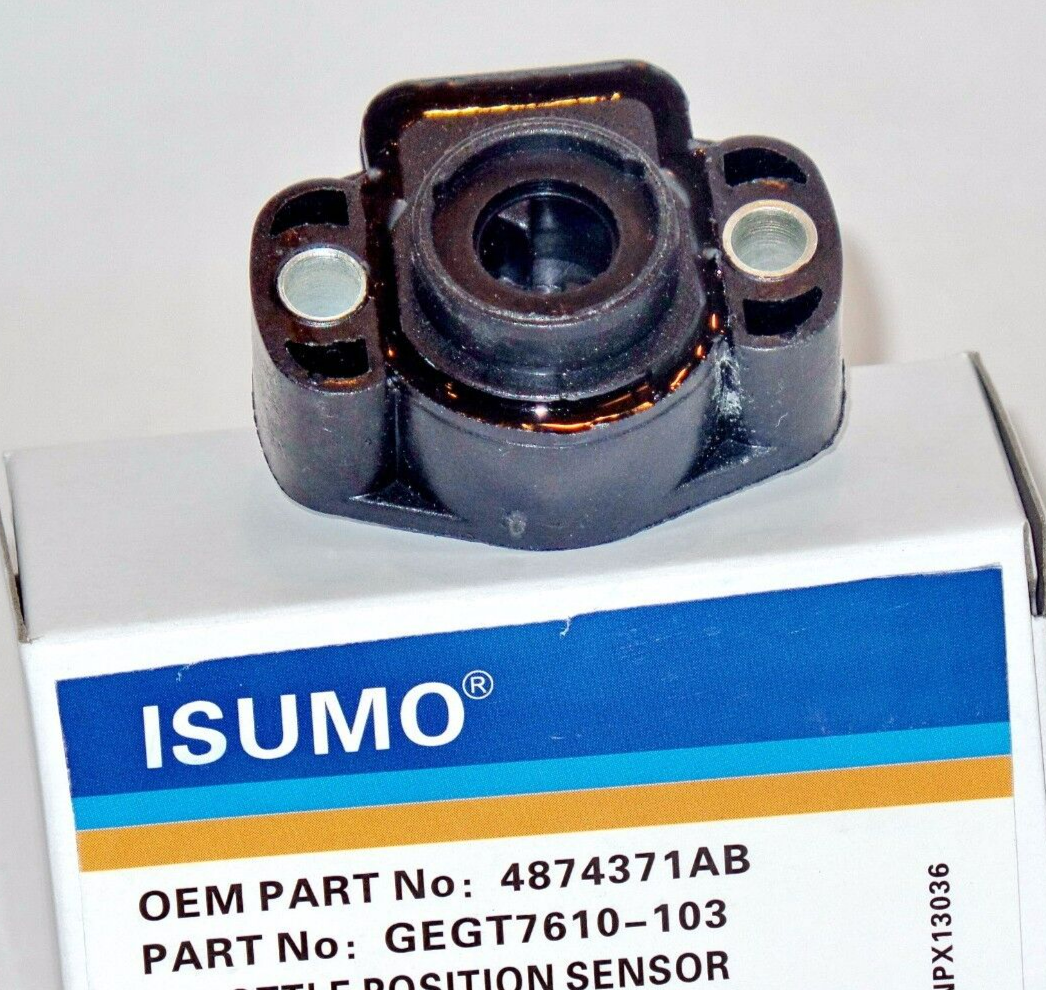

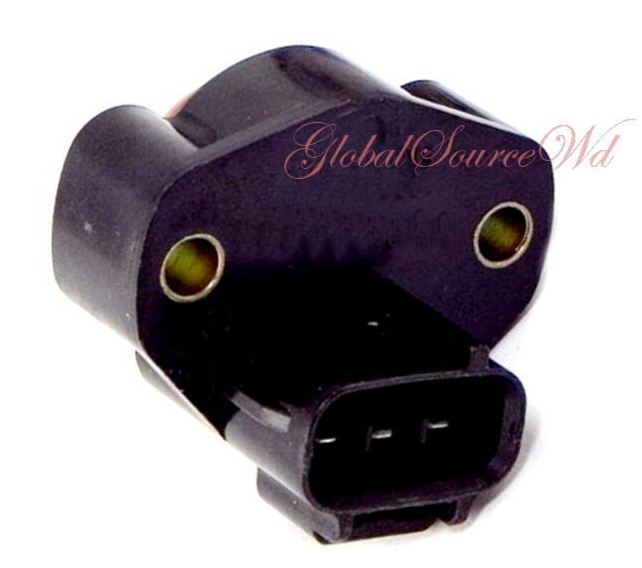

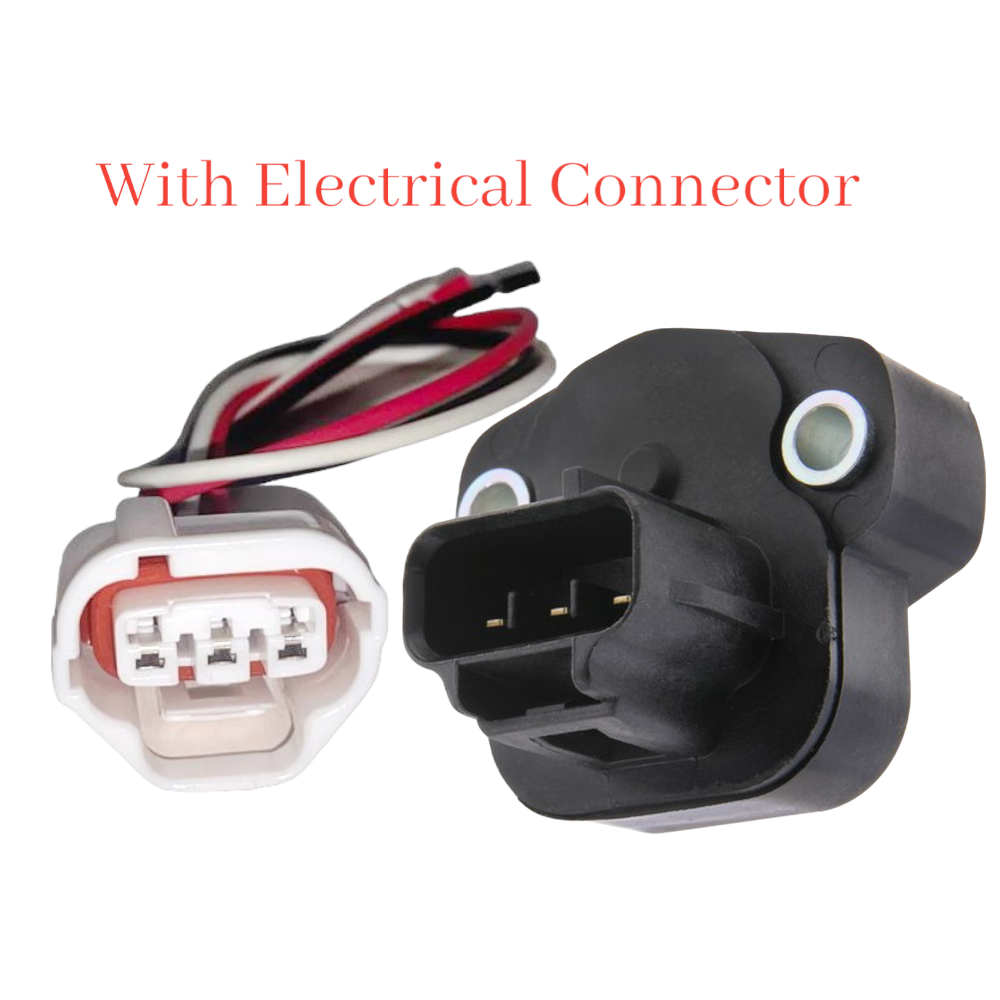

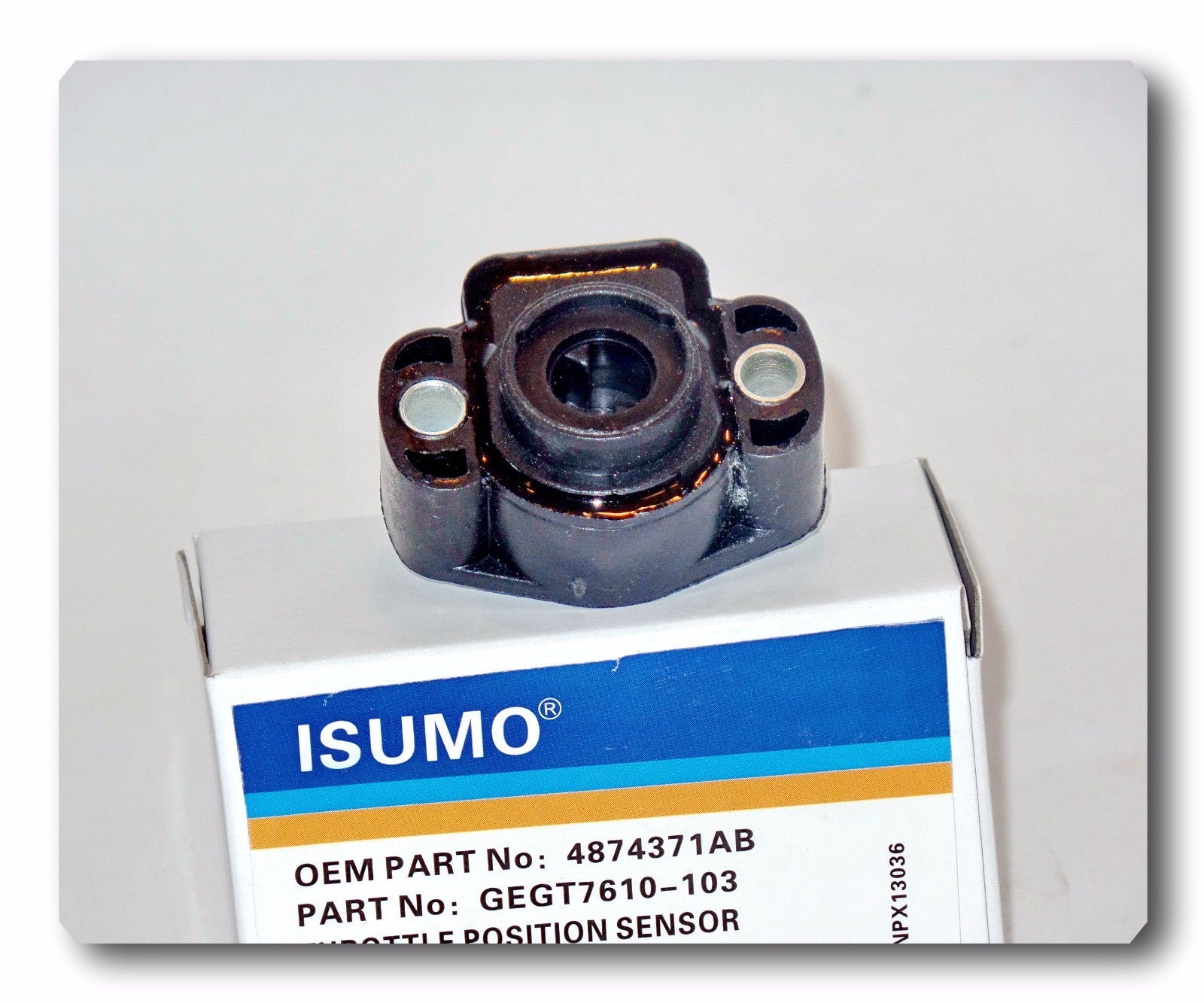

1 x Throttle Position Sensor (TPS)

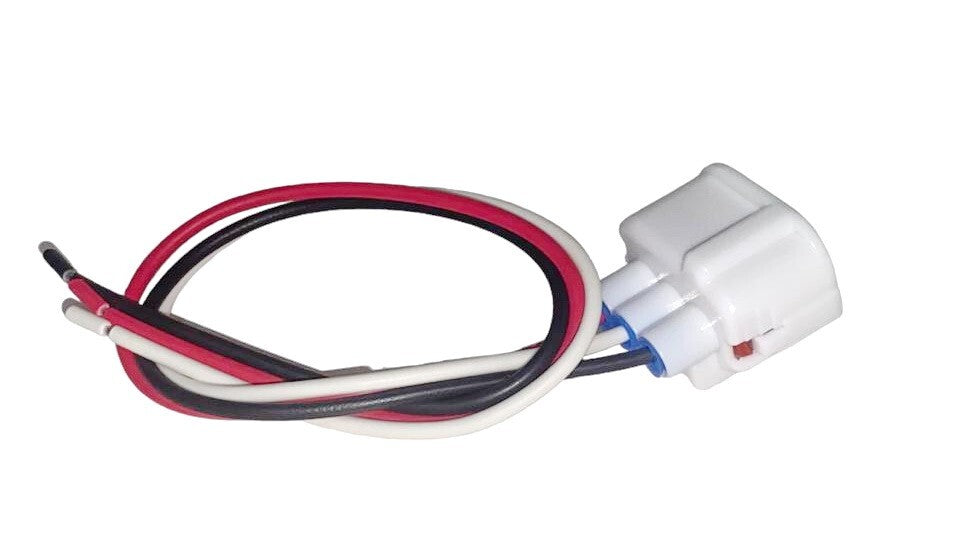

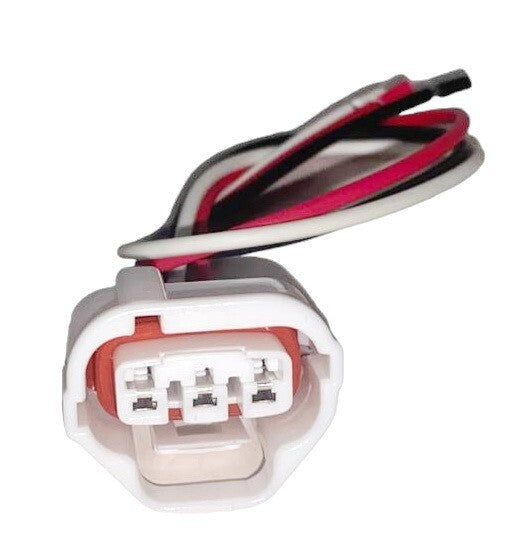

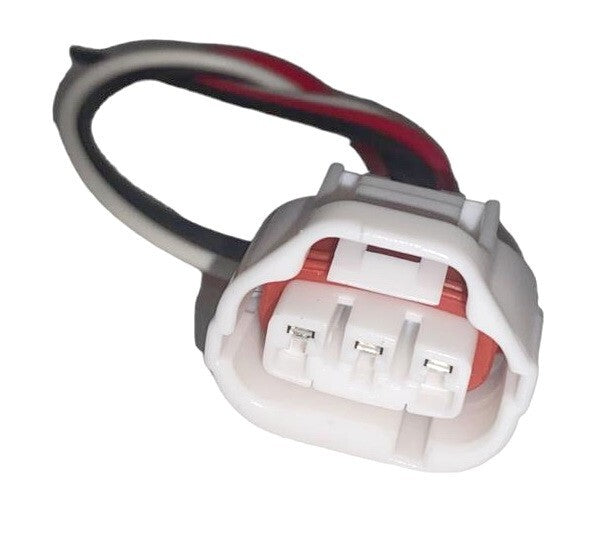

1 x Electrical Connector
====================
Part#
TPS2007
EC1199
EC1199
=======
Cross-Reference
4874371
4671050
216721
4773818
4874433
5269721
TPS326
TH212
GT7103
======
Specifications
| Category | Throttle Position Sensor |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Type | Plug In |
| Terminal Gender | Male |
| Terminal Quantity | 3 |
| Terminal Type | Blade Terminals |
========================================
Fits
|
==================================
Location:
The TPS is located within or on the side of the throttle body or carburetor.
The Throttle Position Sensor identifies the position of the throttle plate to the
engine computer. The signal voltage will be approximately 0.2-1.0 volt at idle and up to 4.6
volts at wide open throttle.
Failure Symptoms: Malfunction Indicator Light (MIL) illumination, failed emission test,
engine hesitation on light acceleration, engine hesitation during a cruise, automatic
transmission shifting condition=Features & Benefits:
Their Throttle Position Sensors maintain specific installed outputs to match OE rather than adjustable consolidated designs
Circuits are printed on flexible polyimide film or ceramic-based substrates for excellent dimensional stability preventing electrical performance drift. Noble palladium/gold/platinum alloys provide low contact resistance for extended service life
Each TPS uses integral rotor bearings and return springs for easy installation
Each sensor undergoes rigorous end-of-line testing with thousands of data points to validate output voltages for optimum performance and trouble-free operation
========================
Throttle Position Sensor (TPS) Failure:
TPS sensors often fail due to high heat under the hood and constant contact from the wiper arm.
===============================================================================
Signs of a Faulty Sensor:
Check Engine Light with codes ranging from P0120 through P0125
Engine hesitation when accelerating
Rough Idle
==========
