Description

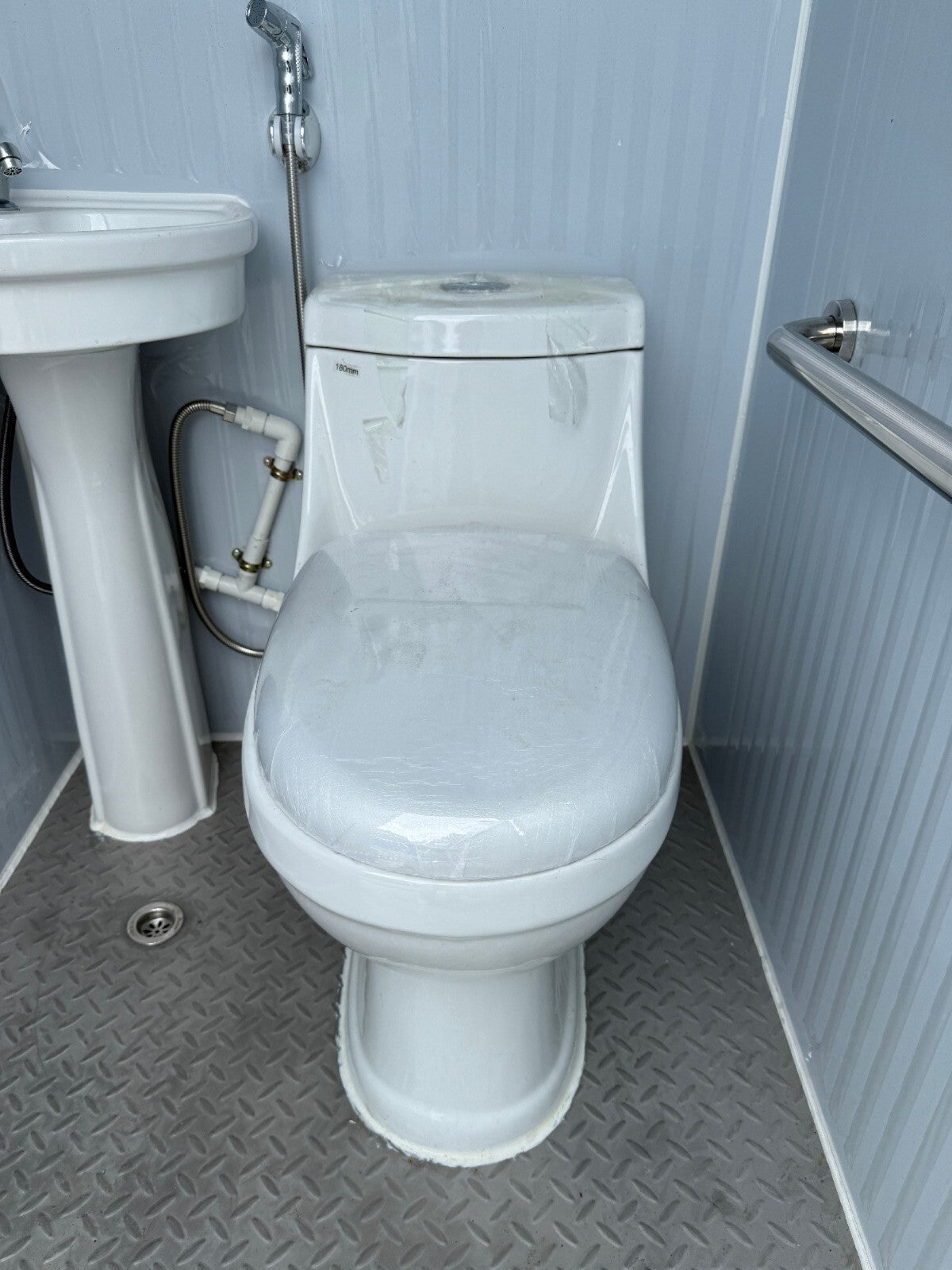

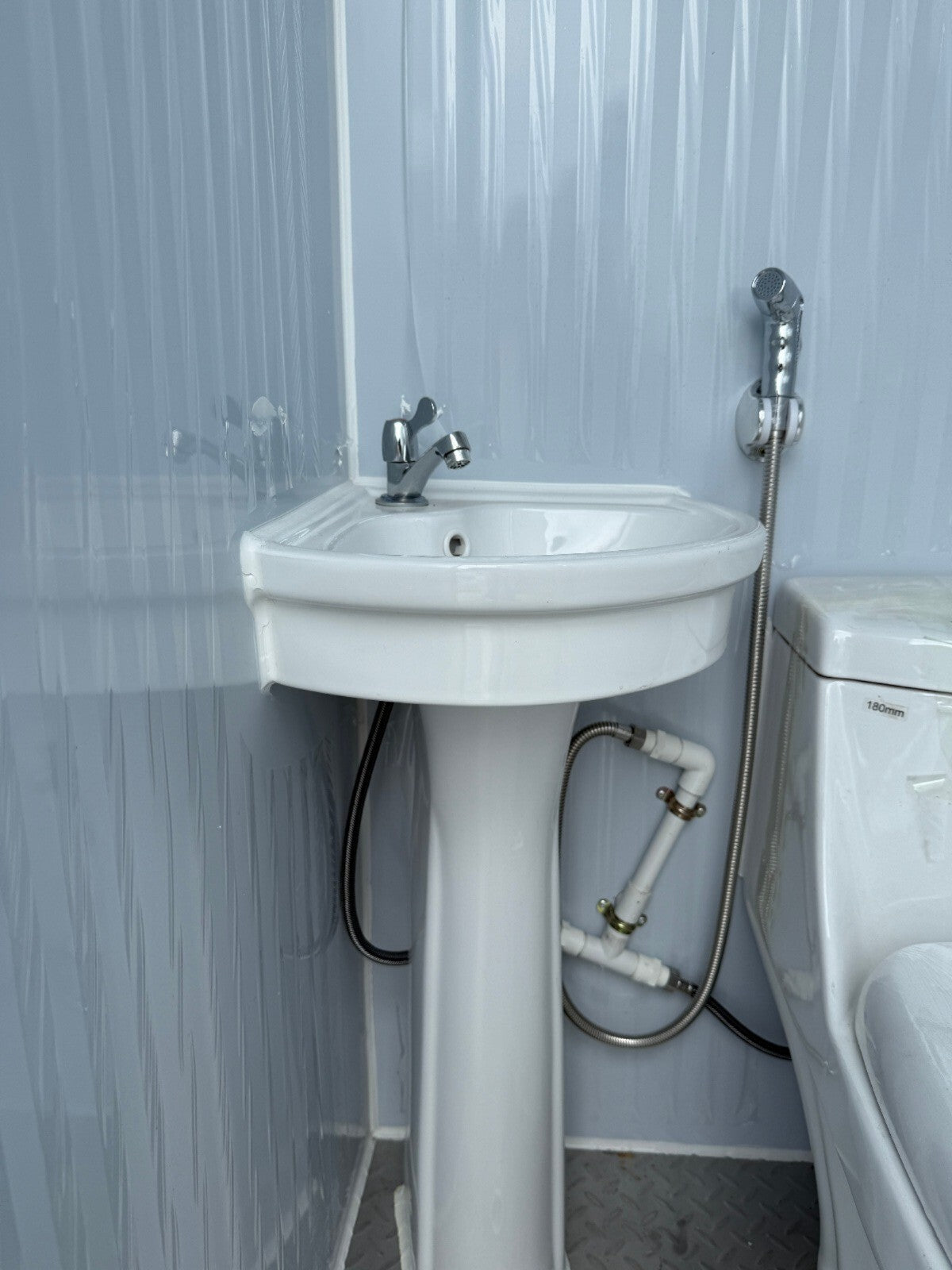

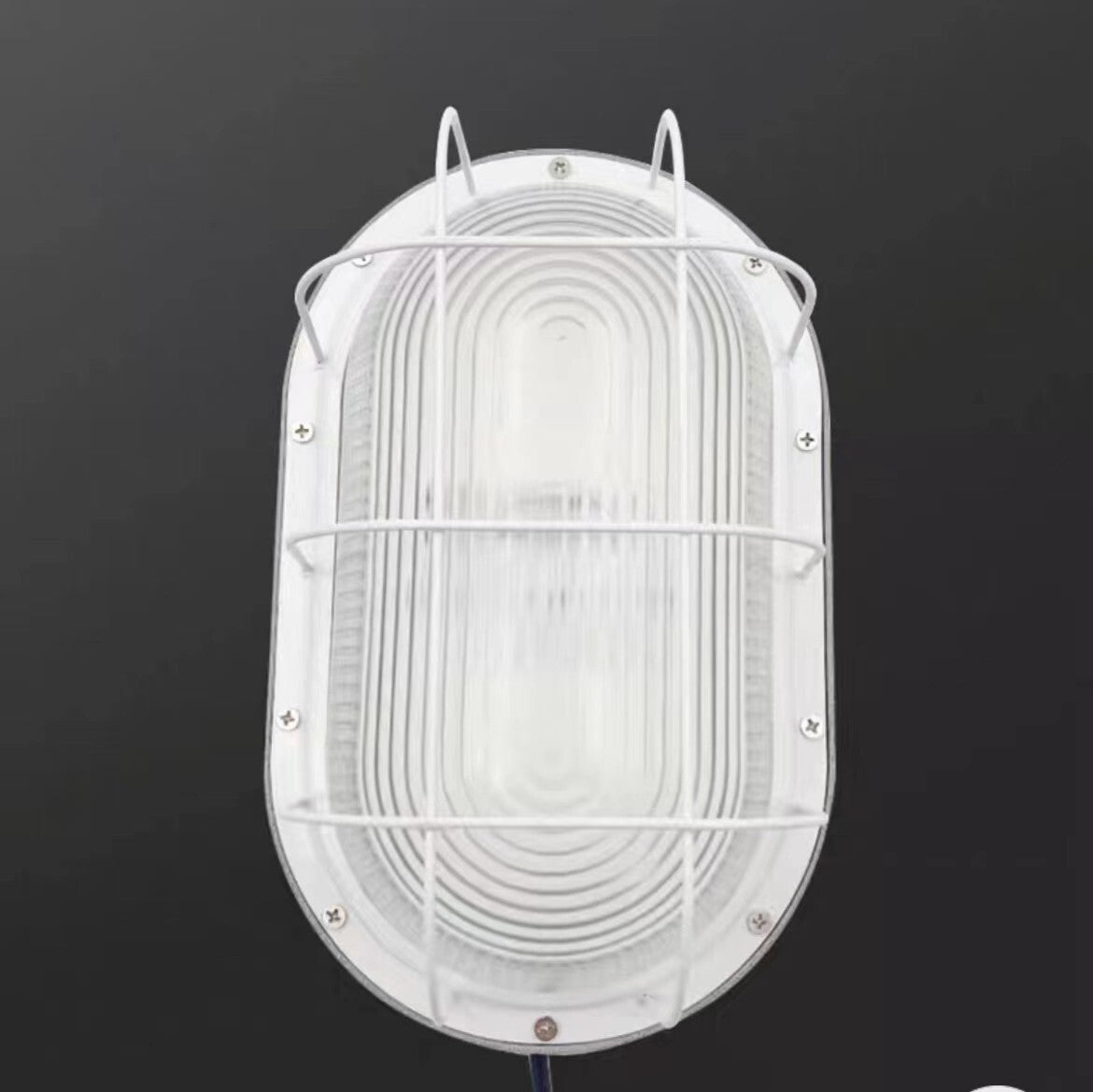

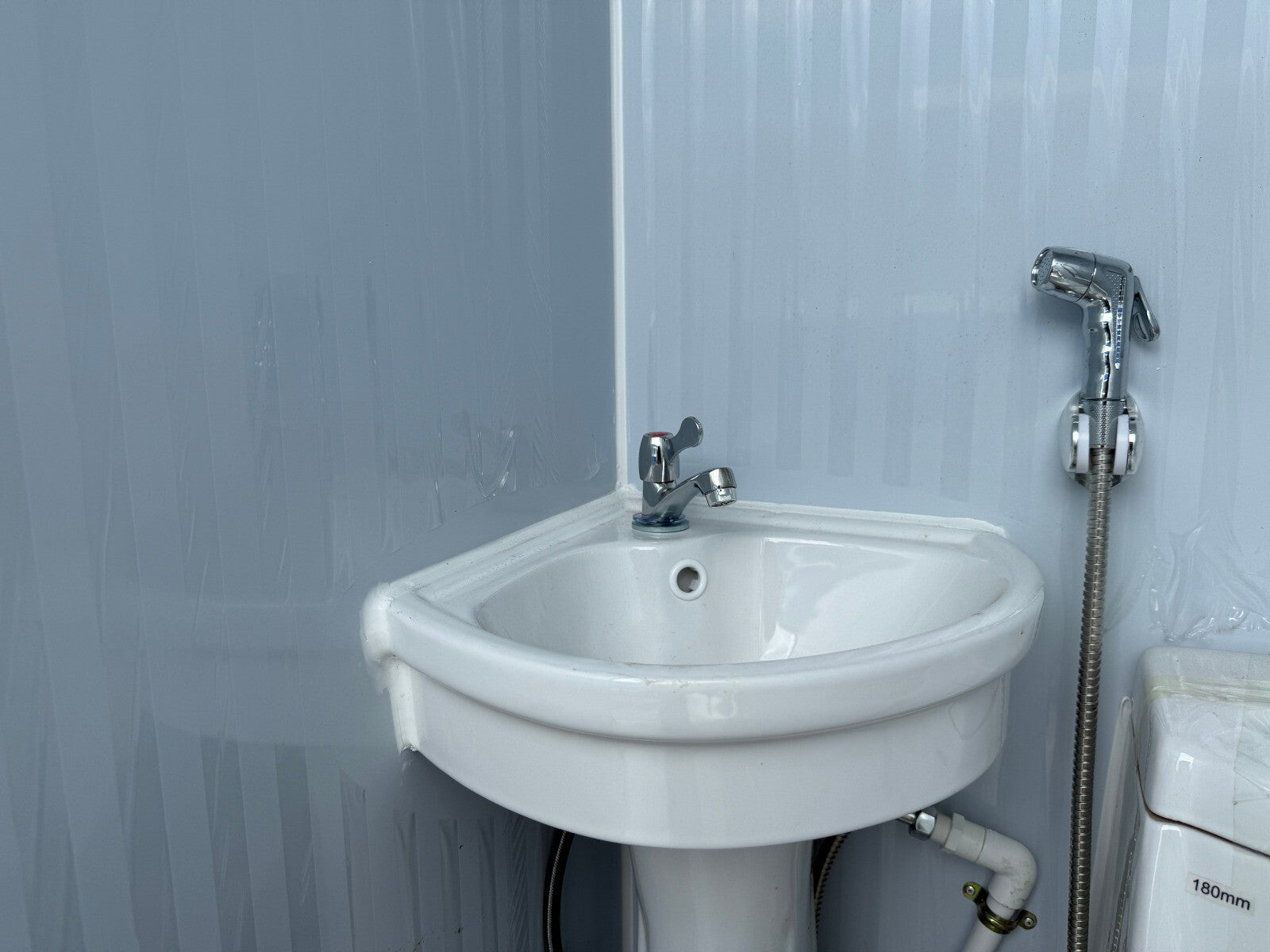

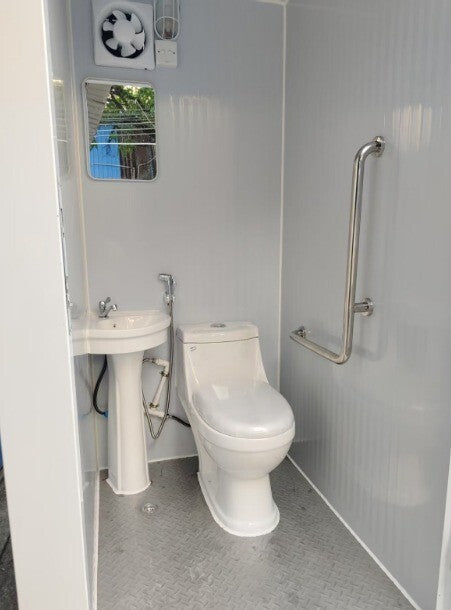

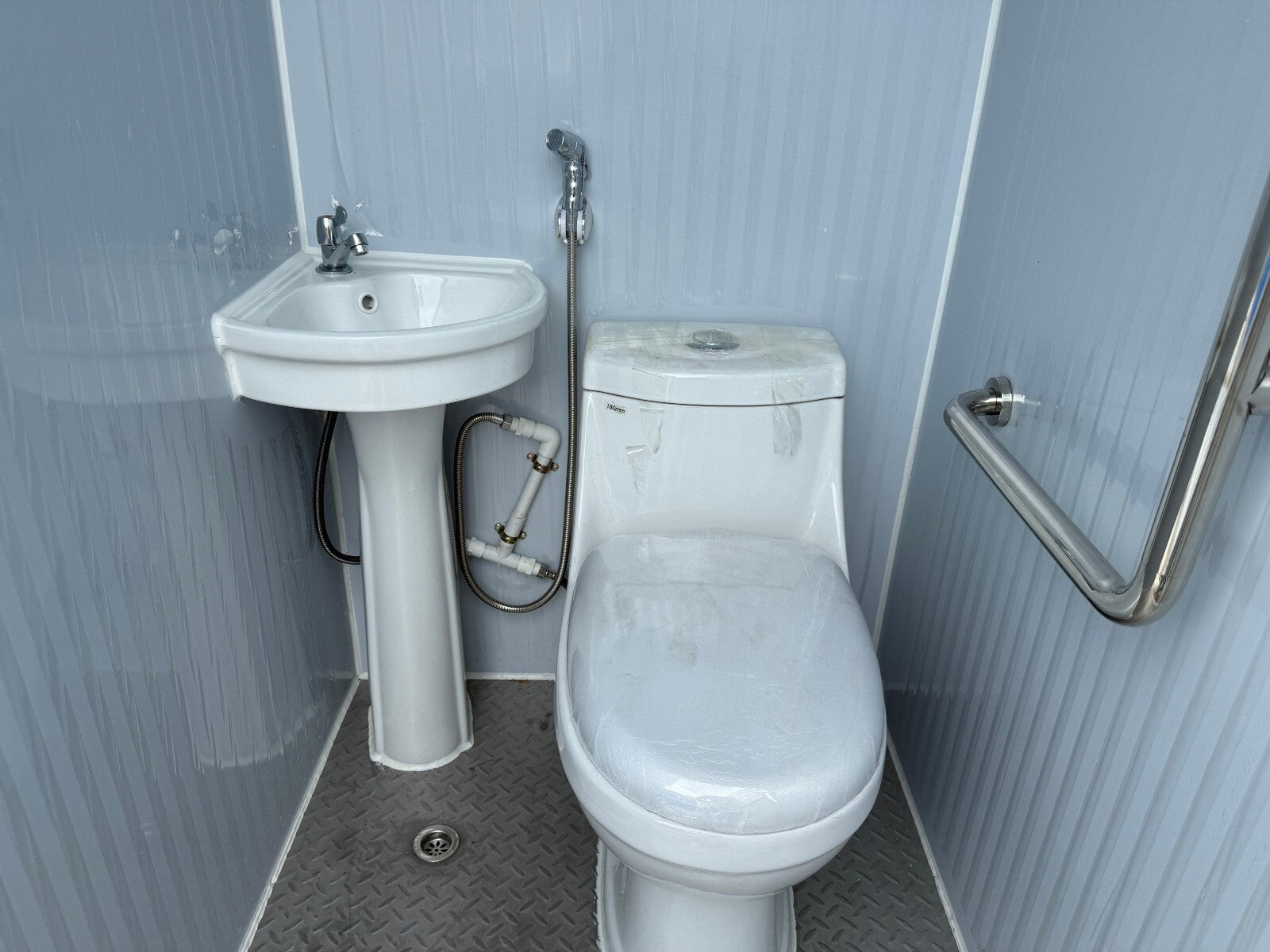

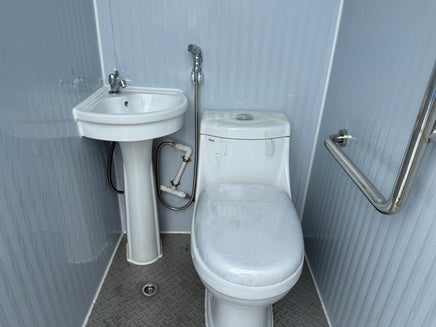

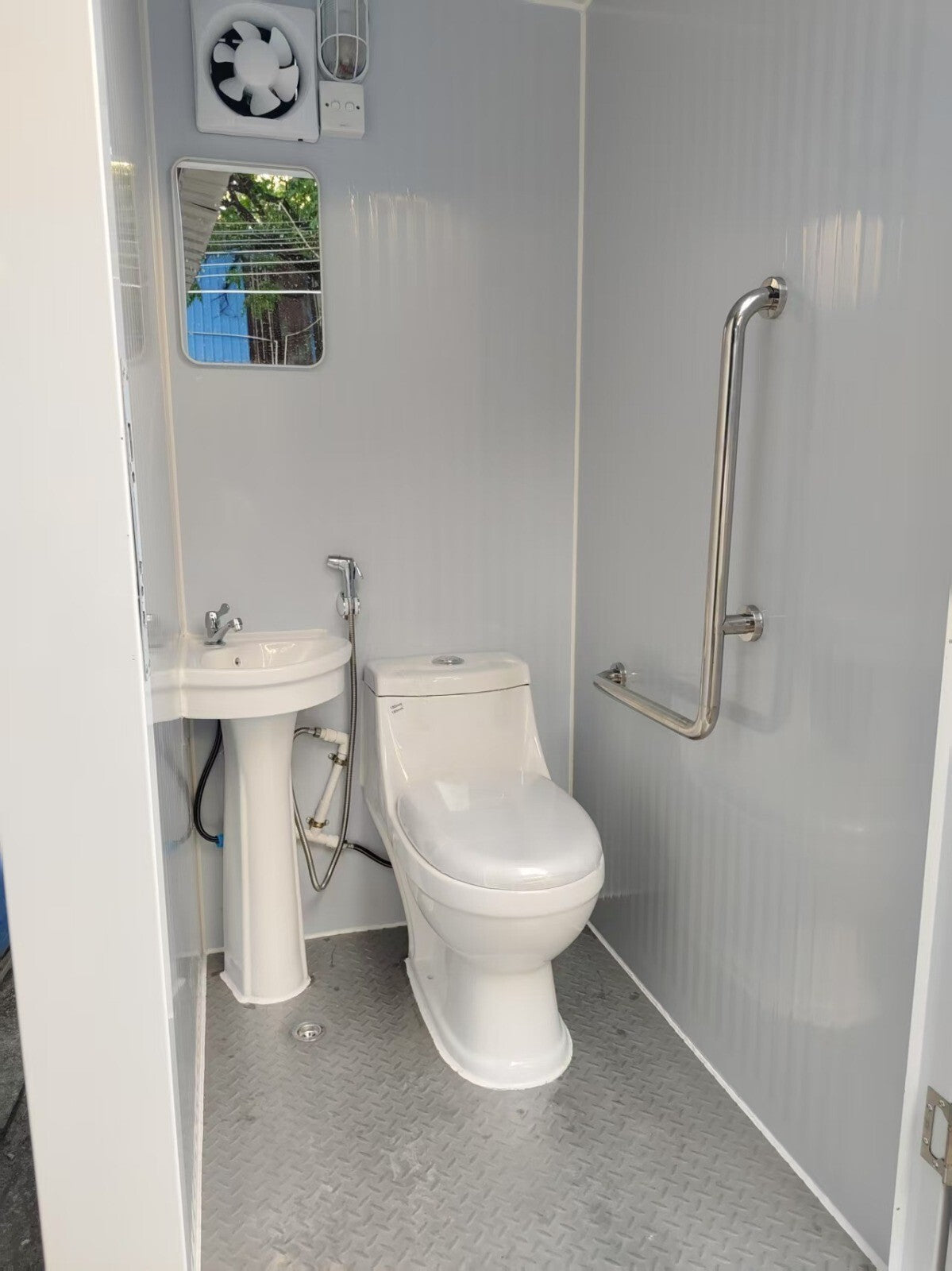

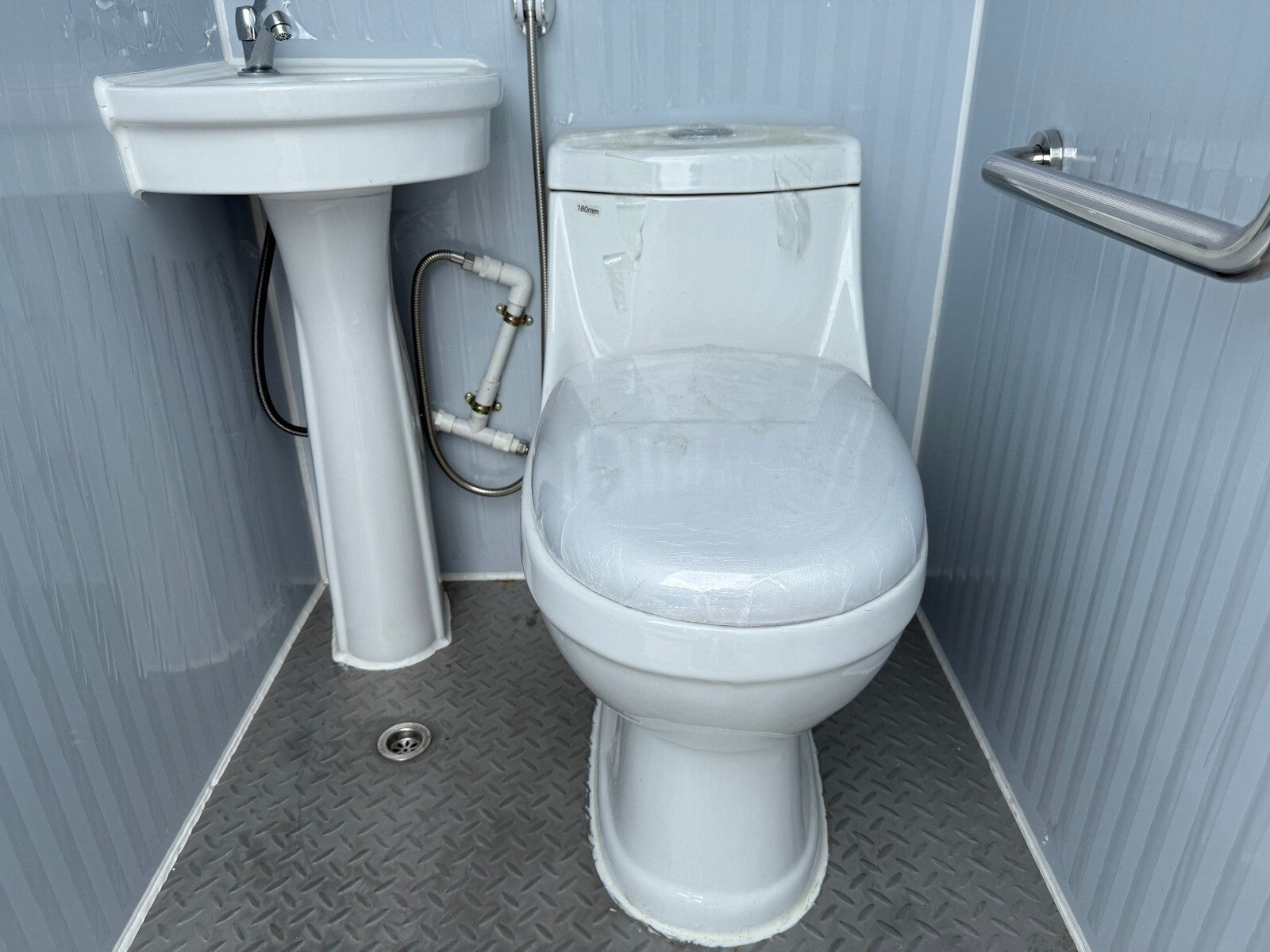

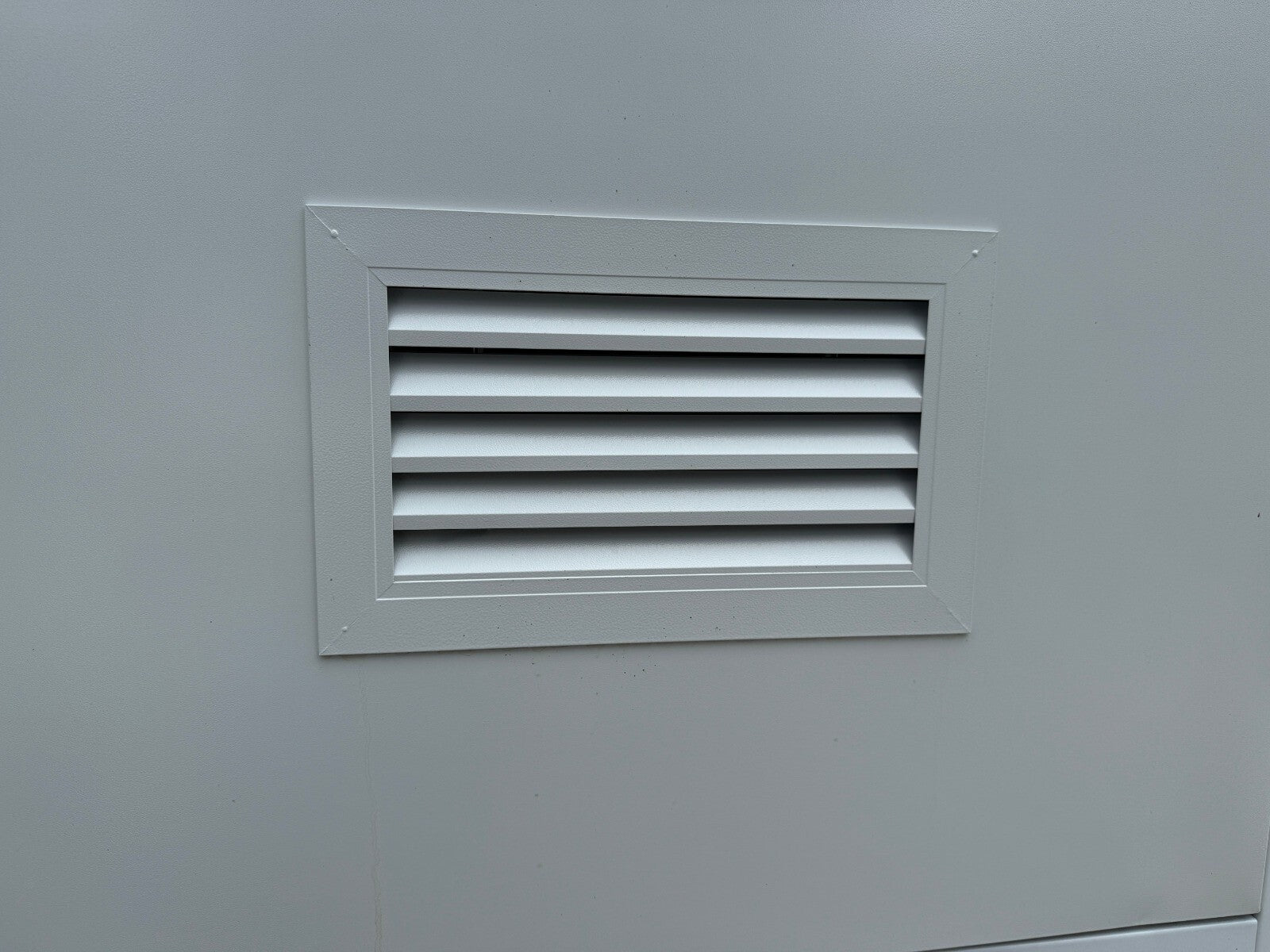

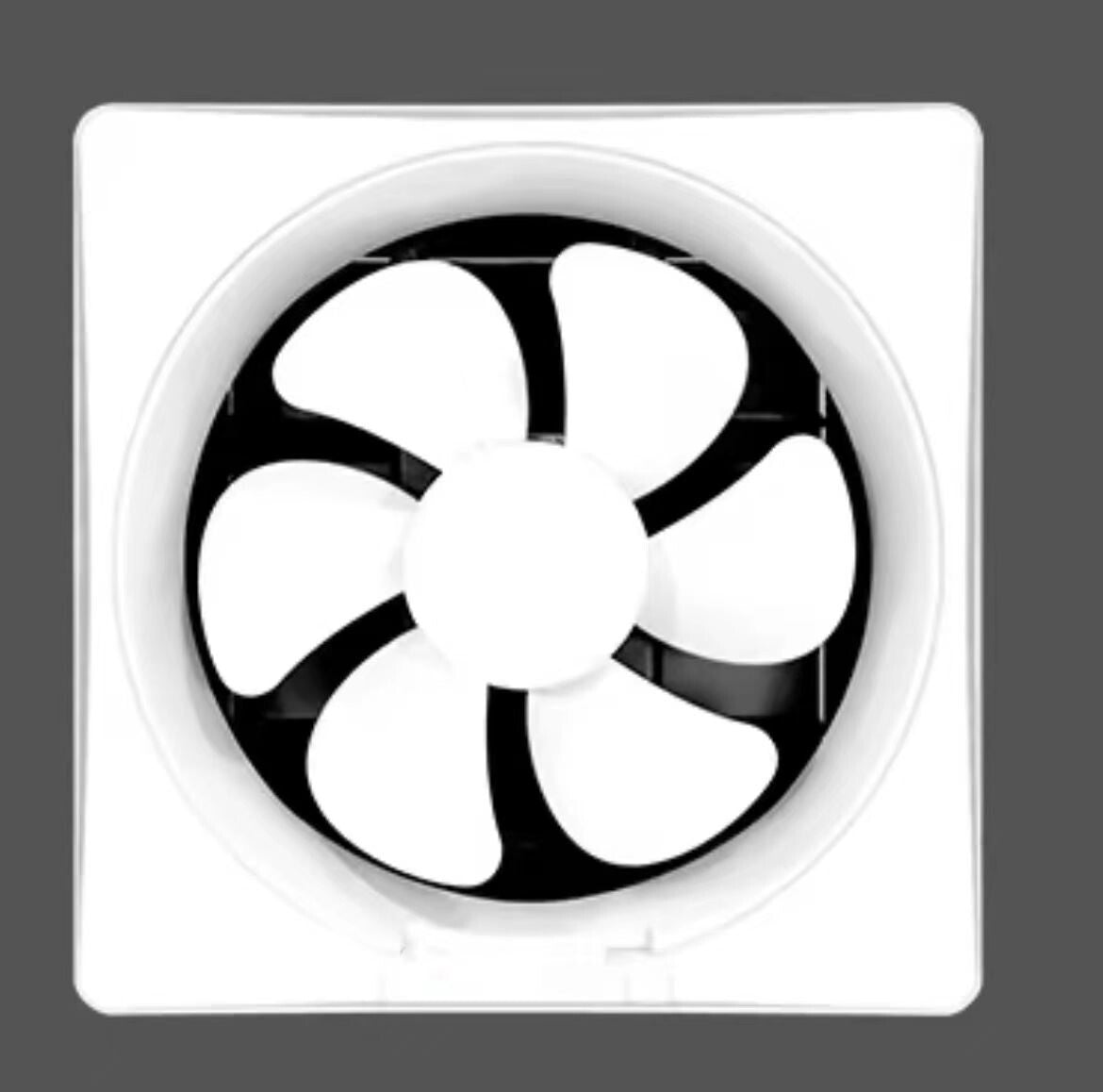

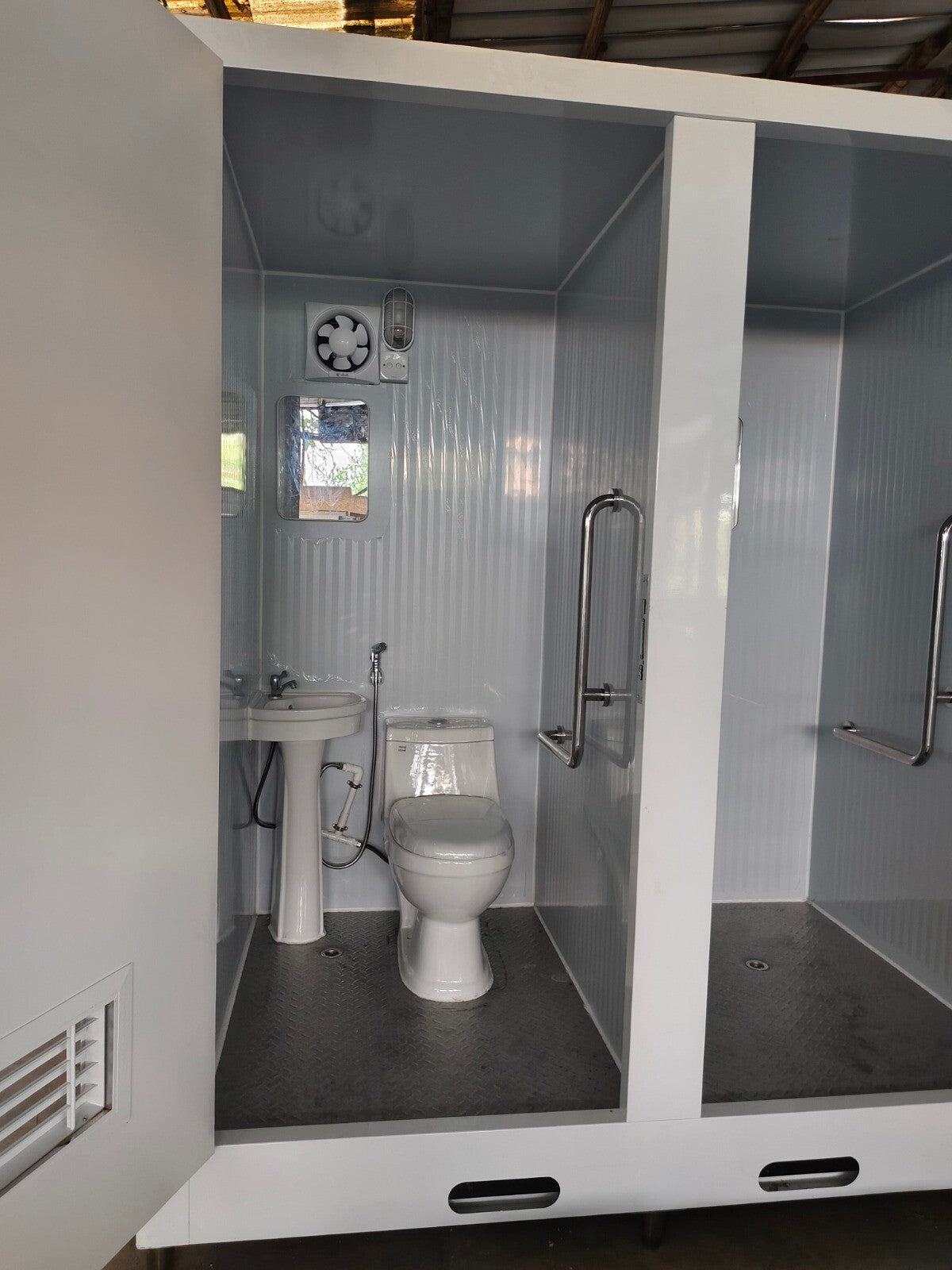

This Portable 2 Private Stalls Portable Restroom is designed to provide porta potties to construction sites and special outdoor public events for people’s convenience. This portable restroom booth gives you peace of mind that you can have a clean and simple restroom during outdoor celebrations and events. This 2 private stalls portable restroom features a toilet, a sink, a light, a ventilation fan, and a vent, and it is a full-service portable restroom kiosk that is similar to a bathroom in your house. Restrooms and toilets are an everyday, inevitable part of life, and we understand your urgency, we want to bring convenience to your Job Site, Pool Side, backyard or business . (check with your local city if any required permits needed) , ( preferably installed by experienced or licenesed person.
Specification
| Description | Specifications |
| Model | Portable Restroom w/ Sink |
| Dimension (LxWxH) | 43.3"x51"x93" |
| Interior Dimension (LxWxH) | 37.2"x43.8"x 83" |
| Door Size | W 33" x H 77" |
| Net Area | 11.3 ft² |
| Frame | Steel |
| Surface Coating | High-Temperature Resistant Paint |
| Roof Material | 2-inch EPS fire-resistant & insulated roof panels |
| Wall Material | 2-inch EPS fire-resistant & insulated wall panels |
| Floor Material | Anti-skid and wear-resistant floor leather+Hard PVC board |
| R-value | 7.09~8.27 |
| Doors |
|
| Circuit Breaker Spec | 13~16 Amps |
| Power Supply | 110V~220V |
| Wire info | 3 core 2.5 sqmm |
| Wiring Instructions | White Wire: Live Wire Black Wire: Neutral Wire Green or Yellow-green Wire: Earth Wire |
| Flush volume | 1.6 gpf |
| Inlet Pipe Material | PPR Pipe |
| Inlet Pipe Inner diameter | 4/5 inch |
| Outlet Pipe Material | PVC Pipe |
| Outlet Pipe Inner diameter |
|
| Lowest Pipe Working Temperature |
14℉ (if iced, please use 122℉ water to melt) |
| Fire-proof Level | B2 |
| Wind Load | 56 MPH |
| Snow Load | 125 lb/sqft |
| Forklift Pockets | Dimension: W7"x H3" Distance between forklift pocket: 13.5" |
| Lifespan | 15+ Years |
| Warranty | 1 Year |
Set up
There are 4 lifting lugs for transportation on the top and a forklift slot on the bottom. The equipment needs to be unloaded using a crane or forklift.
Footing options
- Concrete slab or pads
- Compacted ground
- Concrete or Steel stumps
- Note: The finished height of the surface must be level. Consulting a qualified person is recommended.
Note
The customer must arrange for a licensed Electrician to supply & Install all wiring.
All pipe connection needs thread seal tape, instead of glue, to seal.
Our Portable Restrooms need to be supplied with city water or well pump water, and all portable toilet "sewage" needs to be connected to the city sewer system or a simple septic system.
If this Portable Restroom w/ Sink is used on a construction site, we recommend you connect toilets to the sanitary sewer system and connect water to the pipe system. If not, you may need tanks outside the structure for waste.
- If it's a concrete floor, please use twist-n-lock anchors on 4 corners of the portable restroom, and use wire rope to connect the anchor and the top corner of the portable restroom.
- If it's a soil floor, please use 20 inches - 28 inches ground nails on 4 corners and use wire rope to connect the anchor and top corner of the portable restroom.
Unloading referenceFeature
- Dual Portable Toilets / Porta Potty with x2 Sinks
- x2Toilet booth, toilet kiosk, x2 mobile toilet
- Material: High-Temperature Resistant Paint

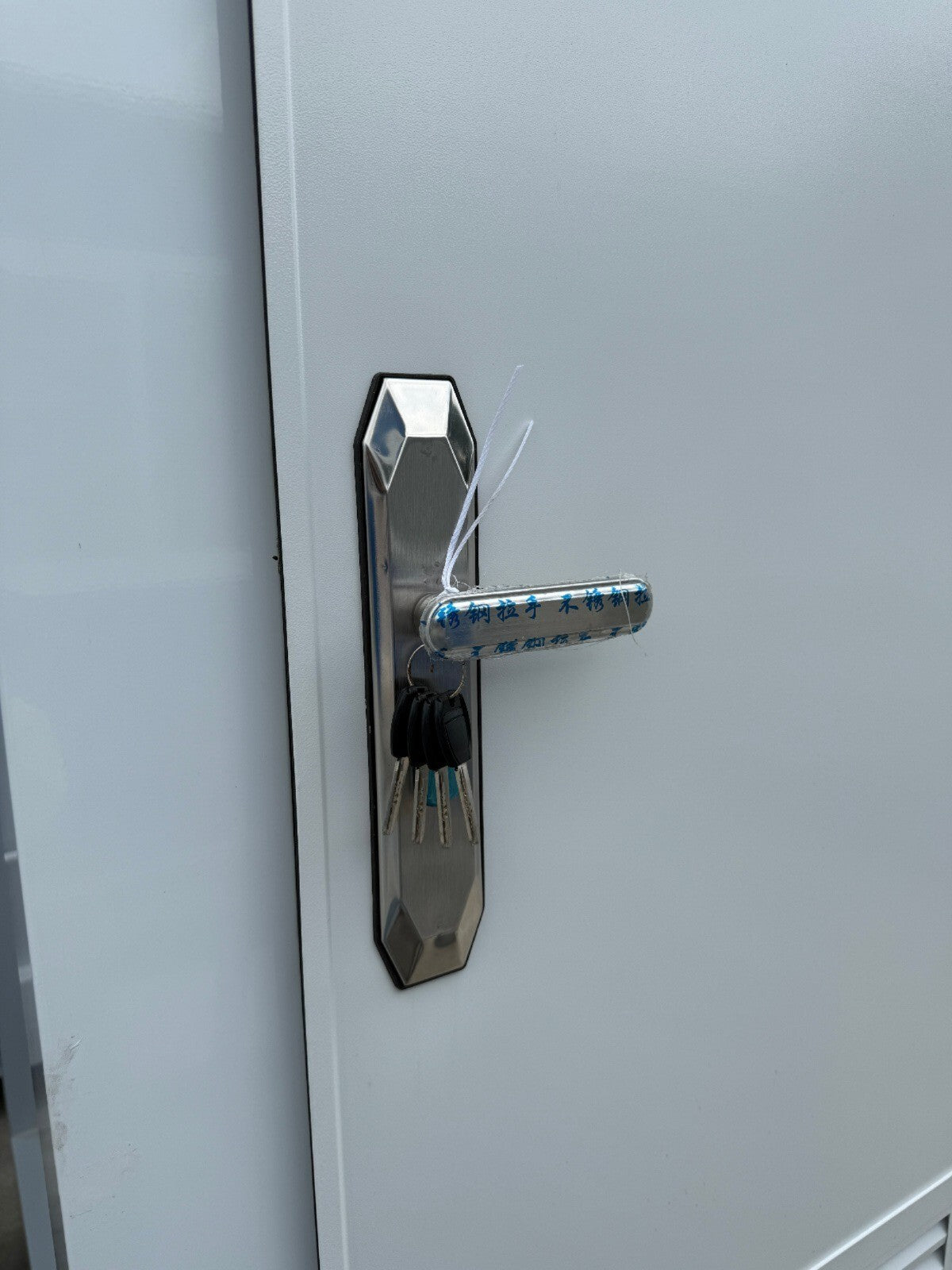

- Door: Security Door
- No water tank reserve comes with this unit ( direct sewer hookups )
Package Size
- LxWxH (inch): 108x43x93
- Weight (lb): 1550lbs
- ** A forklift or equivalent is required for unloading **
Buyer must arrange for a licensed electrician to provide and install all electrical wiring.
All plumbing connections are to be sealed with thread sealant tape (not glue).
Our portable toilets require the use of city water or a well pump, and all “sewage” from the portable toilets needs to be connected to the city sewer system or a simple septic system.
If using this Portable Toilet (with sink) at a construction site, we recommend that you connect the toilet to the sewer system and the water to the plumbing system. If not, you may need to install a sewage tank outside the building site to store the waste.
If you have a concrete floor, use twist-lock anchors on all four corners of the portable toilet and use wire rope to connect the anchors to the portable
top corners of the portable toilet.
If it is a dirt floor, use 20-inch to 28-inch ground spikes on all four corners and use wire rope to connect the anchors to the top corners of the portable toilet.
