You Are Buying
Brand: ISUMO
Aftermarket Premium High Quantity

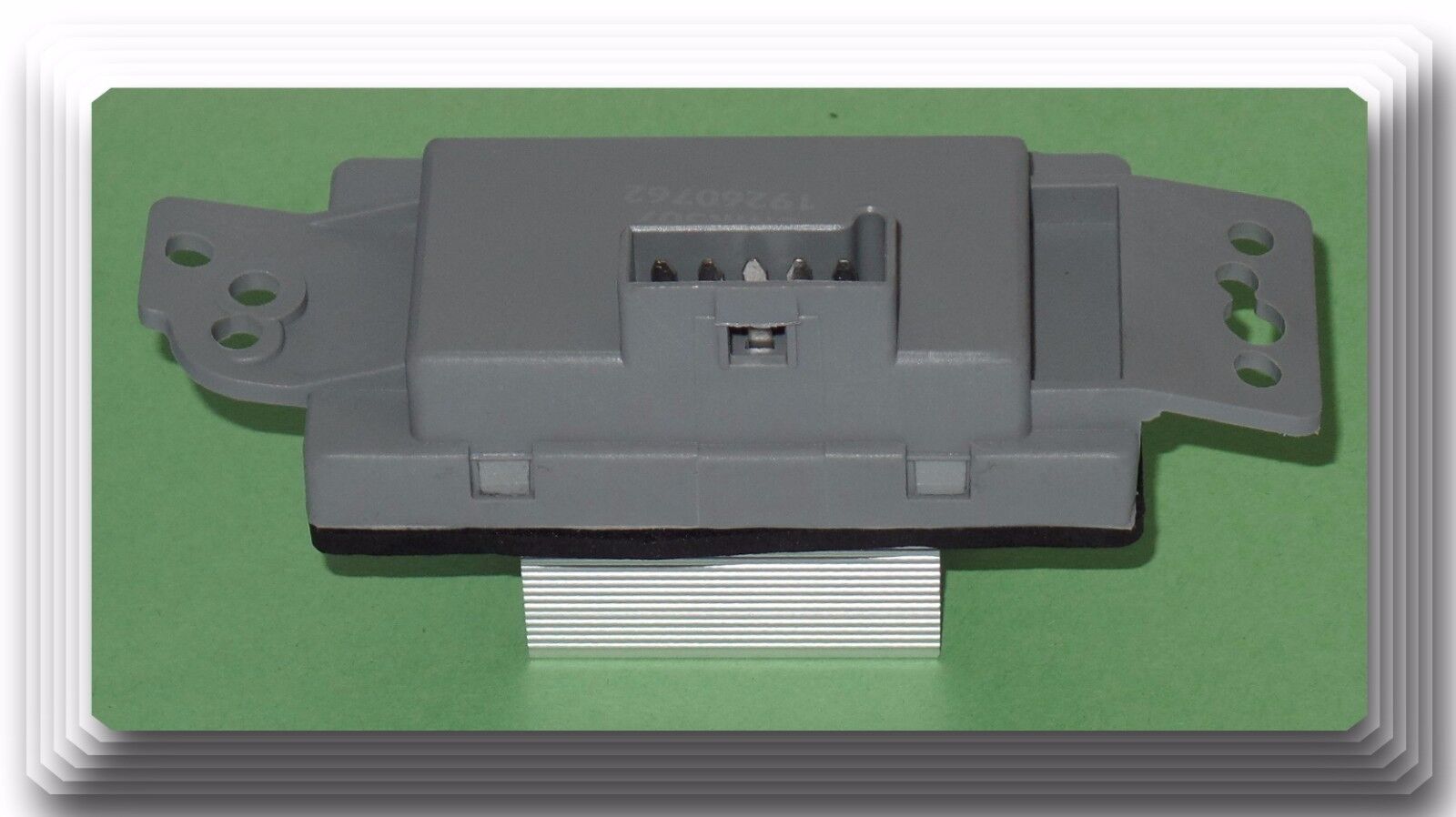

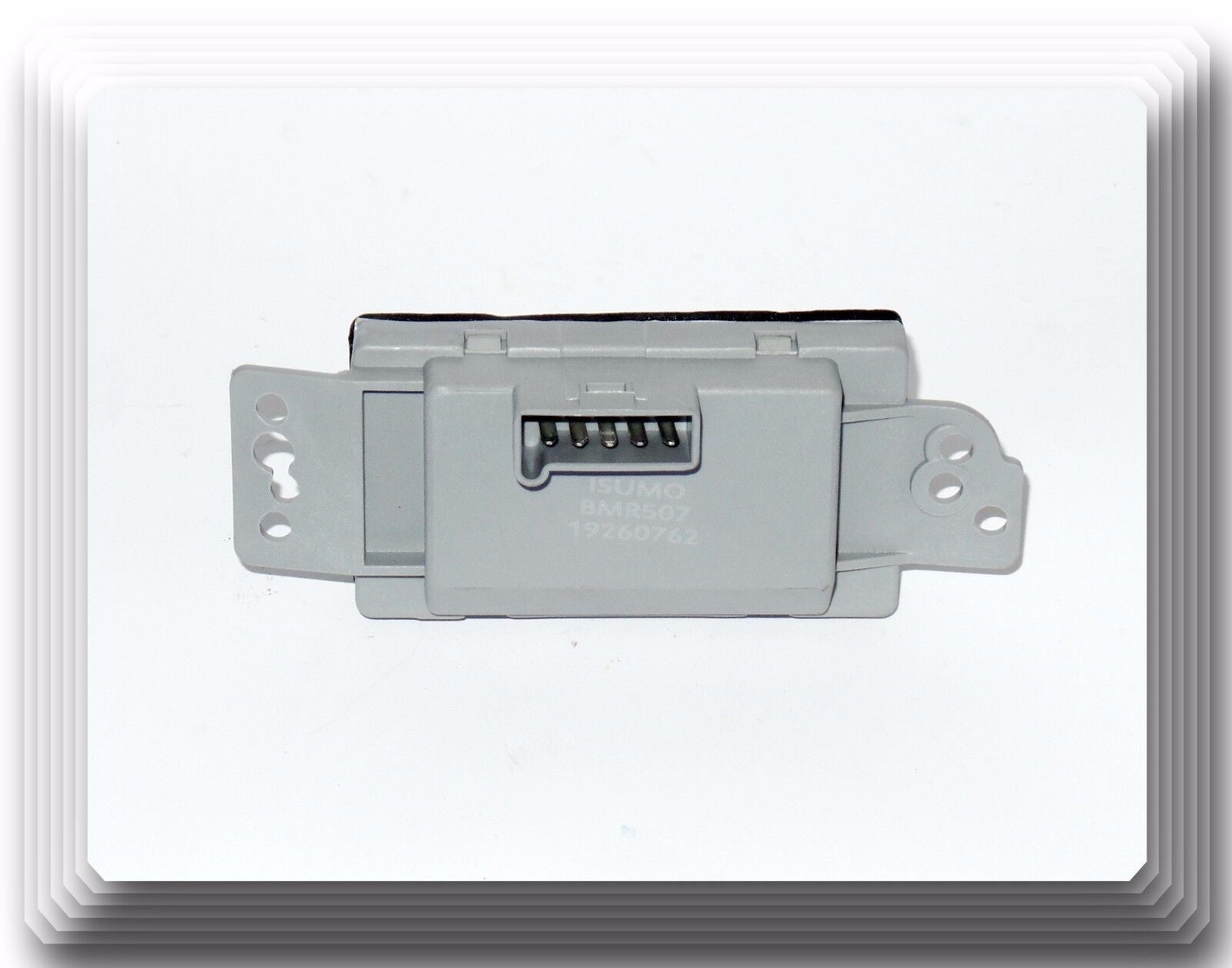

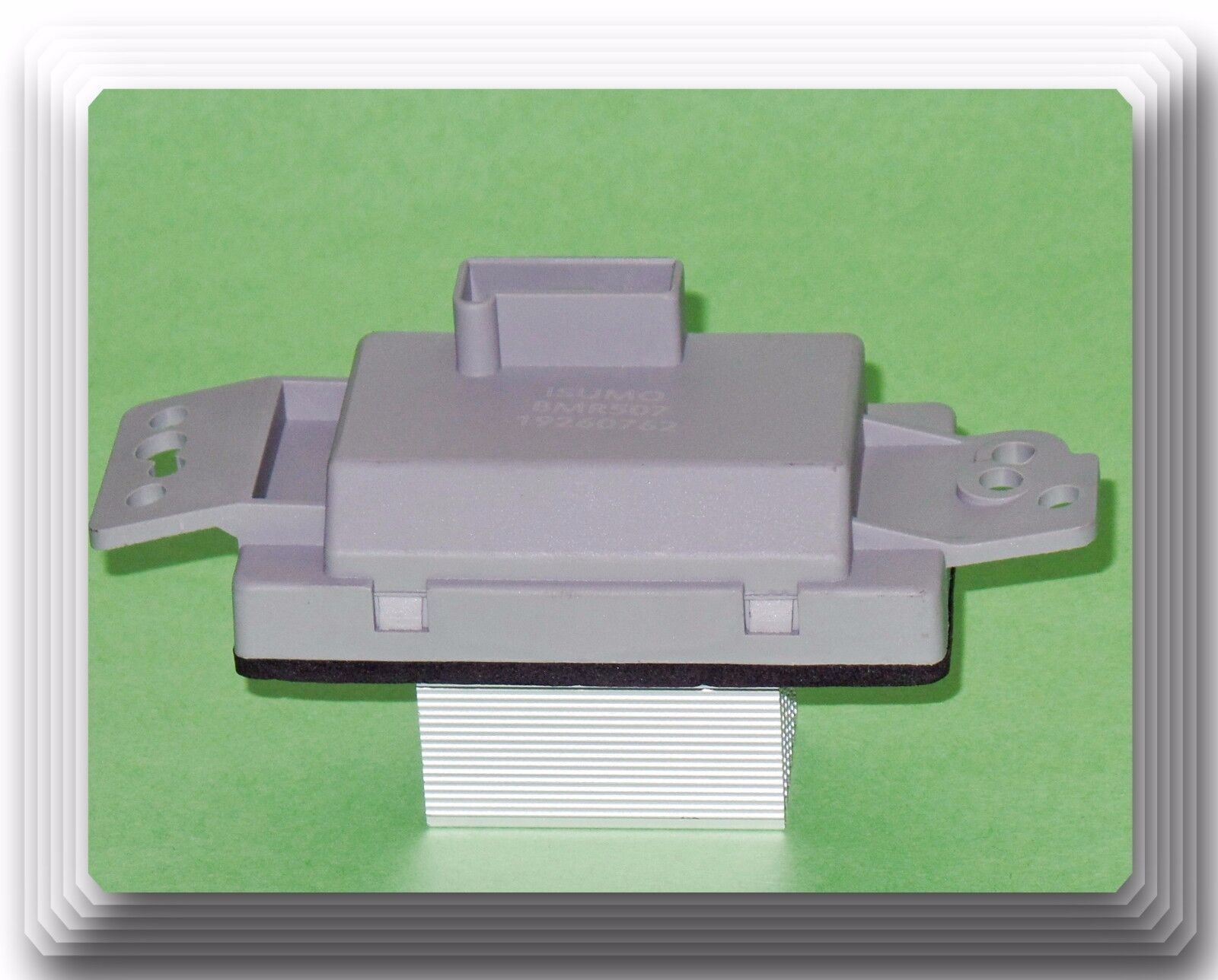

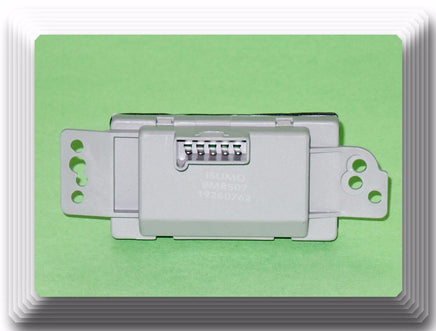

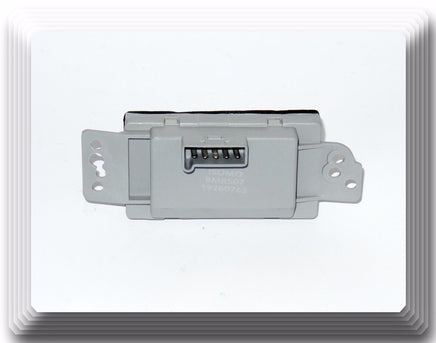

Blower Motor Control Module / Resistor
Quantity: 1 Piece
==============
Part#
BMR507/3
=========
Cross-Reference
BMR507/3
19260762
973-508
RU631
JA1554
973508
973-508
10325408
10356906
10397570
1580888
58172
22754990
=========
Description:
| Bolt Hole Quantity | 1 |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Terminal Gender | Male |
| Terminal Quantity | 5 |
| Terminal Type | Blade |
| Wiring Harness Included | No |
===========================
Fits:
Fits:
| BUICK | ALLURE | 2005-2010 |
| BUICK | CENTURY | 2005 |
| BUICK | LACROSSE | 2005-2009 |
| BUICK | RAINIER | 2004-2007 |
| CADILLAC | ESCALADE | 2003-2006 |
| CHEVROLET | AVALANCHE 1500 | 2003-2006 |
| CHEVROLET | AVALANCHE 2500 | 2003-2006 |
| CHEVROLET | IMPALA | 2004-2013 |
| CHEVROLET | IMPALA LIMITED | 2014-2015 |
| CHEVROLET | MONTE CARLO | 2004-2007 |
| CHEVROLET | SILVERADO 1500 | 2003-2006 |
| CHEVROLET | SILVERADO 1500 CLASSIC | 2007 |
| CHEVROLET | SILVERADO 2500 | 2003-2006 |
| CHEVROLET | SILVERADO 2500 CLASSIC | 2007 |
| CHEVROLET | SILVERADO 3500 CLASSIC | 2007 |
| CHEVROLET | SUBURBAN 1500 | 2003-2006 |
| CHEVROLET | SUBURBAN 2500 | 2003-2006 |
| CHEVROLET | TAHOE | 2003-2006 |
| CHEVROLET | TRAILBLAZER | 2003-2009 |
| GMC | ENVOY | 2003-2009 |
| GMC | SIERRA 1500 | 2003-2006 |
| GMC | SIERRA 1500 CLASSIC | 2007 |
| GMC | SIERRA 2500 | 2003-2006 |
| GMC | SIERRA 2500 CLASSIC | 2007 |
| GMC | SIERRA 3500 CLASSIC | 2007 |
| GMC | YUKON | 2003-2006 |
| GMC | YUKON XL 1500 | 2003-2006 |
| GMC | YUKON XL 2500 | 2003-2006 |
| OLDSMOBILE | BRAVADA | 2003-2004 |
| PONTIAC | GRAND PRIX | 2004-2008 |
===============================================
Blower Motor Resistor
Location:
The blower motor resistor will typically be in the blower fan case. Because of
the heat created by the resistor, the air movement of the fan is needed to keep the resistor
temperature in control. Excessive heat will damage the blower resistor. Depending on the
vehicle application, the resistor may be accessed from inside the engine compartment in
the passenger rear corner or from inside the vehicle in the area below the glove
compartment storage area.
What It Does:
The blower motor resistor is in the fan motor control circuit to lower the
voltage level available to the fan motor thus controlling fan speed. A typical fan motor
control circuit will have the fan switch applying voltage to the appropriate circuit of the
blower motor resistor; the resistor controls the voltage level in the circuit. The fan motor
high speed circuit is usually a direct power circuit from the fan switch.
Failure Symptoms: Depending on the failure mode, the blower fan may lose one speed
when the resistor fails or it may lose all speeds except high. Excessive heat will cause the
thermal fuse within the resistor to open causing a loss of all lower fan speeds.
Diagnostic Hints: Blockage of the cowl area near the wiper arms with leaves and debris
will cause a loss of air flow around the resistor and lead to a possible failure of the blower
resistor. Also, a blower motor may operate as expected but electrically it may be drawing
too much current. Always check circuit amperage of the blower motor circuit when
replacing a blower motor resistor. Consult a repair resource for proper circuit amperage
