You are Buying
Brand: Schrader
New Without Box

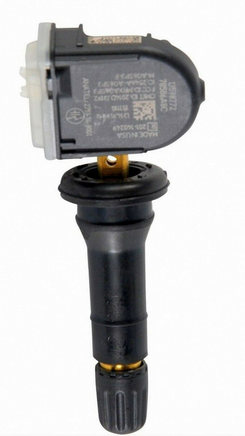

315 MHz Multi-application Sensor
Quantity Sold: 1 Kit
Quantity Needed: 4 Kits (1 Per Wheel)
Warranty 90 days
items will be tested before shipping
TPMS tool required for Re-Learn Process.
===============================
Part#
13598772
===========
Cross-Reference
12768826
13522628
13589597
13598772
20922900
20283
28206
======
Specifications:
Battery -powered Yes
Connector Type Bolt On
Frequency 315 Mhz
Inflation Valve Type Metal
Mounting Location Wheel
Mounting Method Clamp In
O.E.M. Replacement Yes
Real Time Pressure Signal Yes
Sensor Nut Torque (in/lbs) 35
==========================
|
Pre-programmed but a TPMS tool is needed to do the "re-learn"
Works with all major TPMS tools
Valve core, stem and hex nut treated against corrosion
Valve cap seal minimizes air loss
Pivoting valve stem makes installation easier and accommodates a wide range of wheel rim profiles
|
============================================================================
TPMS Guide
TPMS Sensors typically need to be replaced for one of the following three reasons:
1)Battery Life - Estimated life of 5 to 10 years or 100k miles
2)Damage - Caused by accidents, pot holes, etc
23) Corrosion - Typically from road salt (cold weather climates) or galvanic corrosion
Note: It typically makes sense to replace all sensors at once since batteries have similar life spans
Should I replace my TPMS sensor when replacing my tire?
A) If the new set of tires is expected to cross over the TPMS battery threshold consider
B) replacing the TPMS Sensors now to avoid tire mounting fees
C) Otherwise TPMS manufacturers recommend using a service kit to replace TPMS
components to prolong life
========================
Fits:
| BUICK | CASCADA | 2016-2017 |
| BUICK | ENCORE | 2013-2021 |
| BUICK | ENVISION | 2016-2021 |
| BUICK | LACROSSE | 2010-2016 |
| BUICK | REGAL | 2011-2017 |
| BUICK | VERANO | 2012-2017 |
| CADILLAC | ATS | 2013-2019 |
| CADILLAC | ELR | 2014-2016 |
| CADILLAC | ESCALADE | 2014-2020 |
| CADILLAC | SRX | 2009-2016 |
| CADILLAC | XTS | 2013-2019 |
| CHEVROLET | BOLT EV | 2017-2021 |
| CHEVROLET | CAMARO | 2010-2015 |
| CHEVROLET | COBALT | 2010 |
| CHEVROLET | COLORADO | 2015-2020 |
| CHEVROLET | CRUZE | 2011-2016 |
| CHEVROLET | EQUINOX | 2009-2021 |
| CHEVROLET | HHR | 2010 |
| CHEVROLET | IMPALA | 2014-2020 |
| CHEVROLET | IMPALA LIMITED | 2014-2016 |
| CHEVROLET | MALIBU | 2010-2021 |
| CHEVROLET | ORLANDO | 2012-2014 |
| CHEVROLET | SILVERADO 1500 | 2014-2018 |
| CHEVROLET | SILVERADO 2500 | 2014-2020 |
| CHEVROLET | SILVERADO 3500 | 2014-2020 |
| CHEVROLET | SONIC | 2012-2020 |
| CHEVROLET | SPARK | 2012-2021 |
| CHEVROLET | SPARK EV | 2014-2016 |
| CHEVROLET | SUBURBAN | 2016-2017 |
| CHEVROLET | SUBURBAN 1500 | 2014 |
| CHEVROLET | SUBURBAN 3500 HD | 2018-2019 |
| CHEVROLET | TAHOE | 2014-2020 |
| CHEVROLET | TRAX | 2013-2021 |
| CHEVROLET | VOLT | 2011-2018 |
| GMC | CANYON | 2015-2020 |
| GMC | SIERRA 1500 | 2007-2017 |
| GMC | SIERRA 2500 | 2014-2020 |
| GMC | TERRAIN | 2010-2017 |
| GMC | YUKON XL | 2015-2020 |
| GMC | YUKON XL 1500 | 2014 |
| SAAB | 9-4X | 2011 |
===================================
