You are Buying:
Brand: ISUMO™
Registered Trade Mark In USA
Designed to meet or exceed OE specifications
====================================
Quantity: 1 Piece
==============
Description

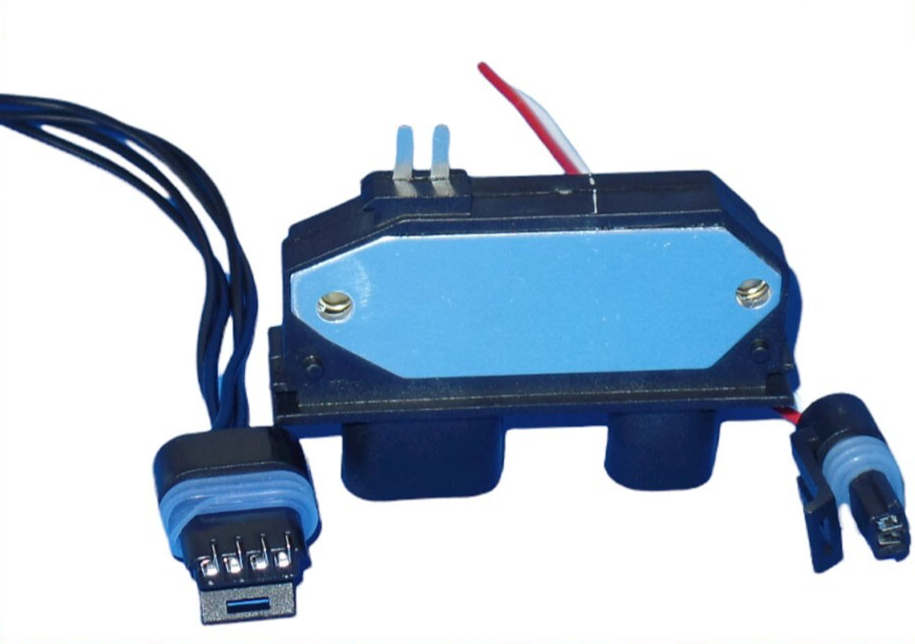

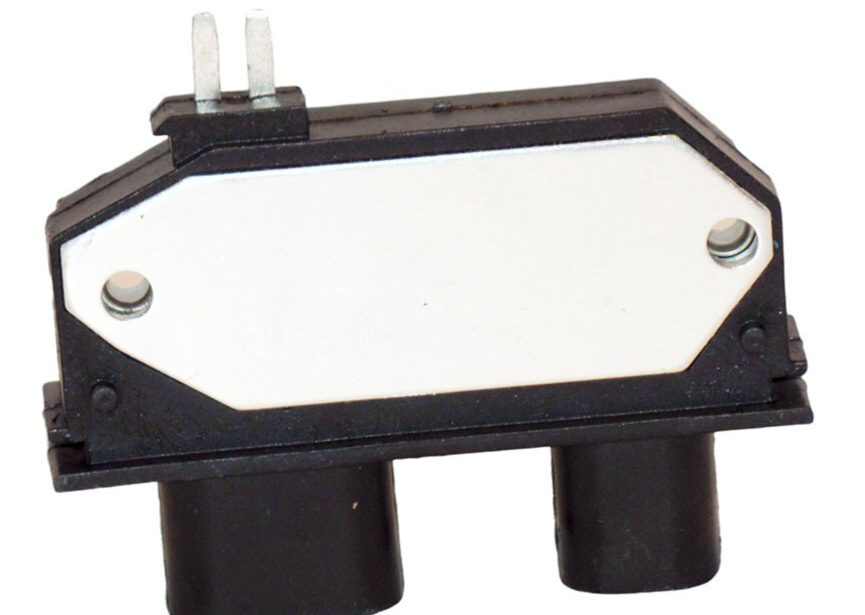

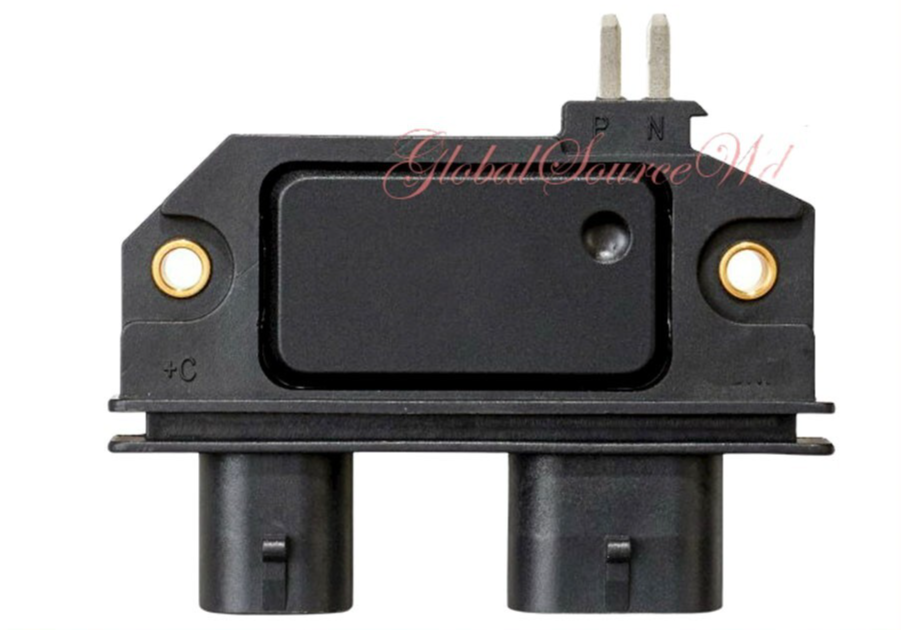

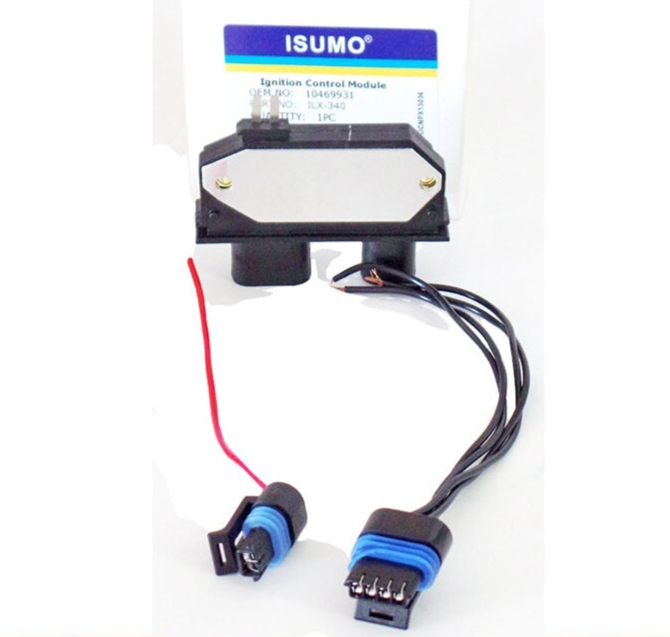

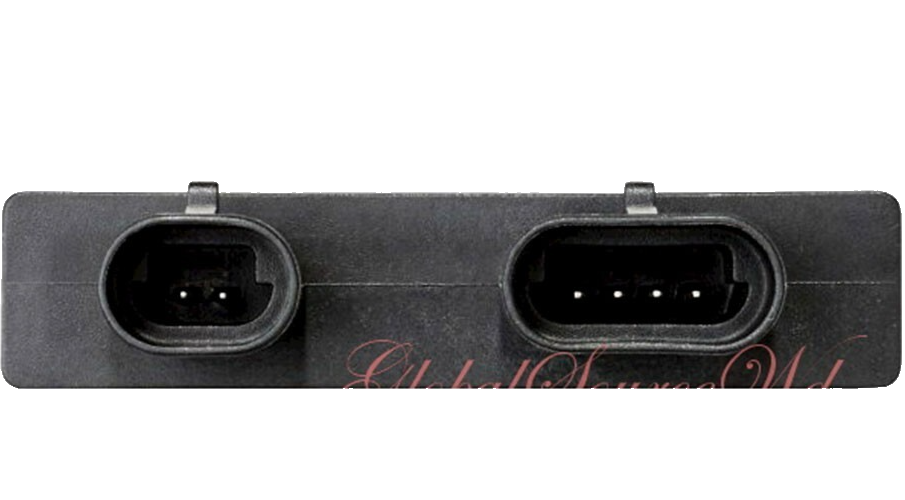

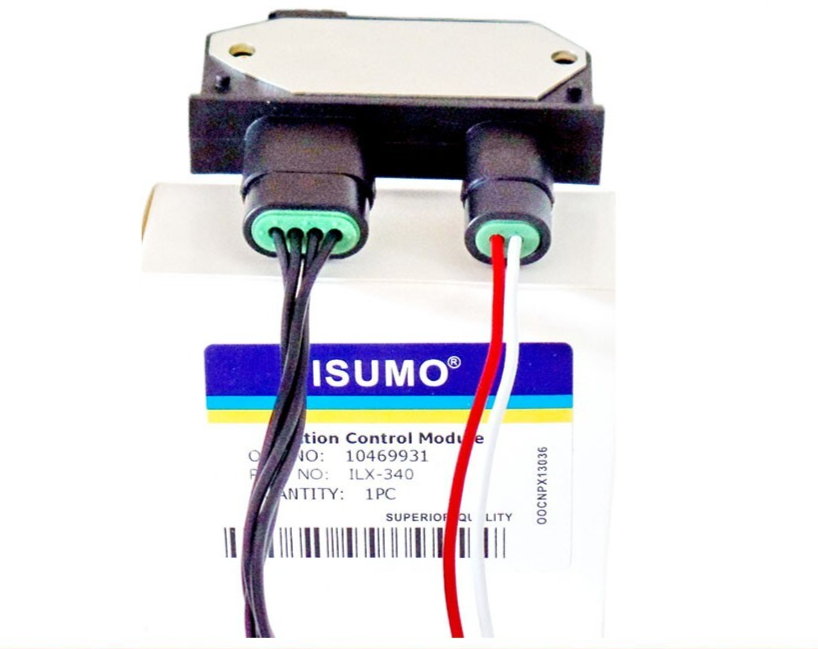

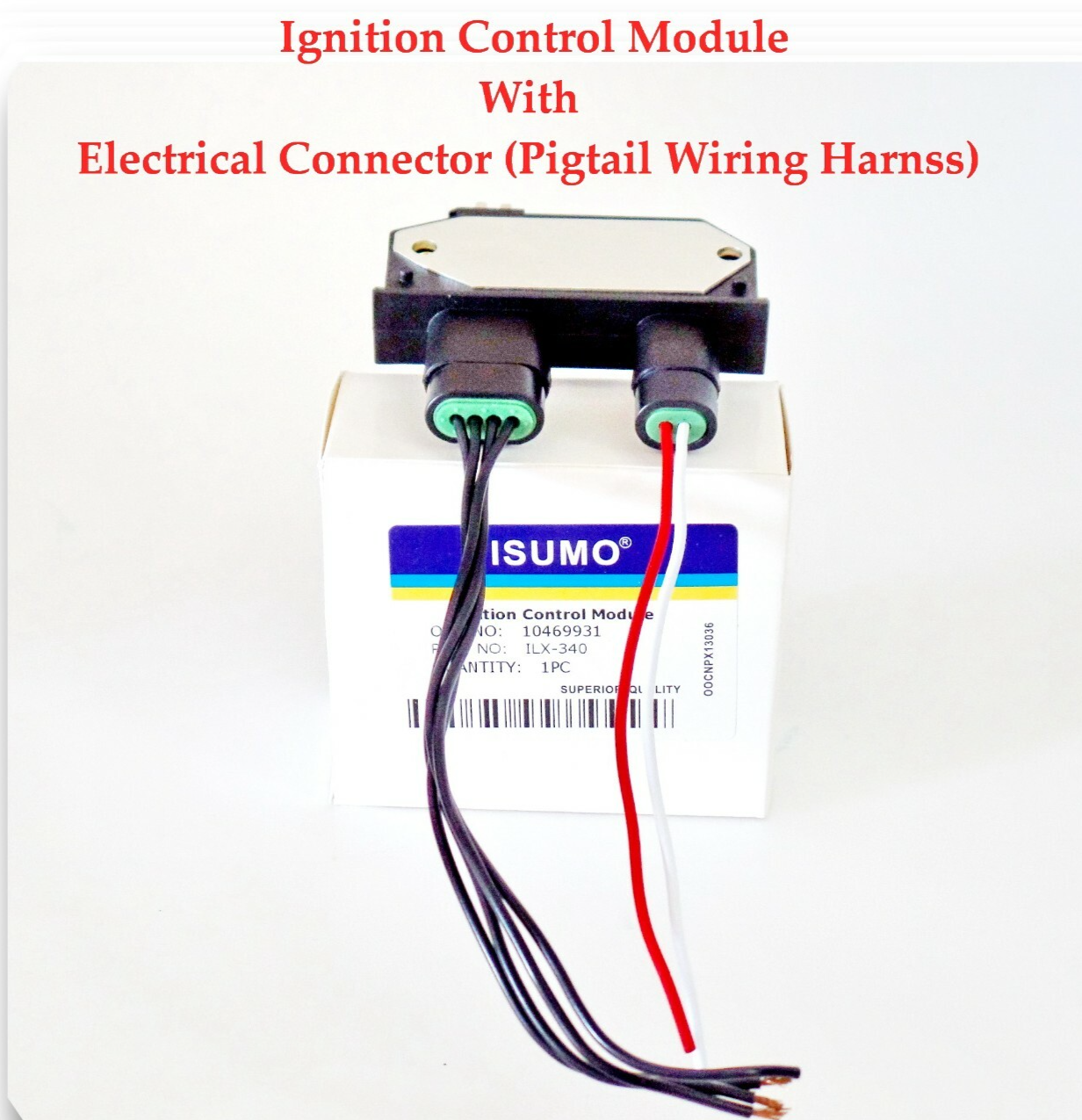

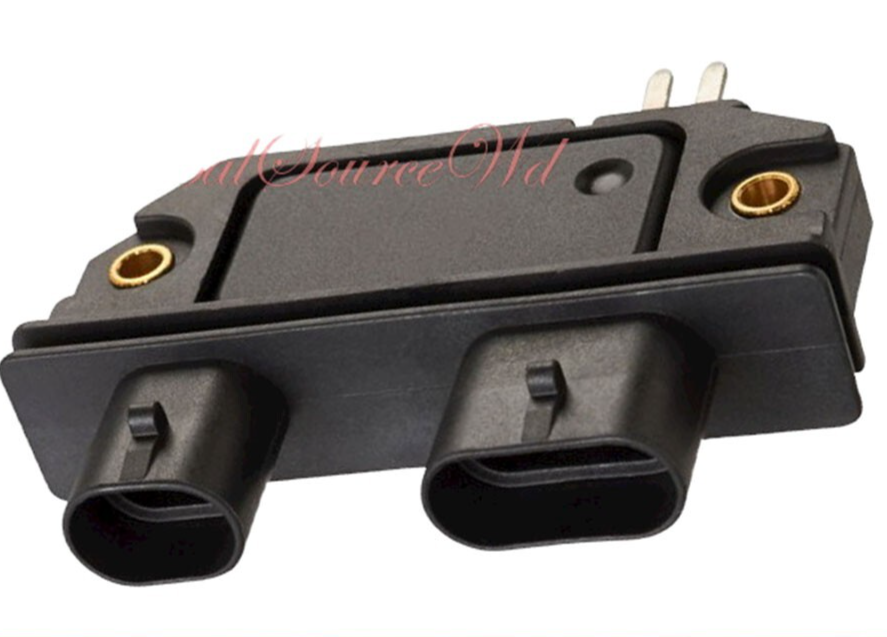

1 x Ingnition Control Module

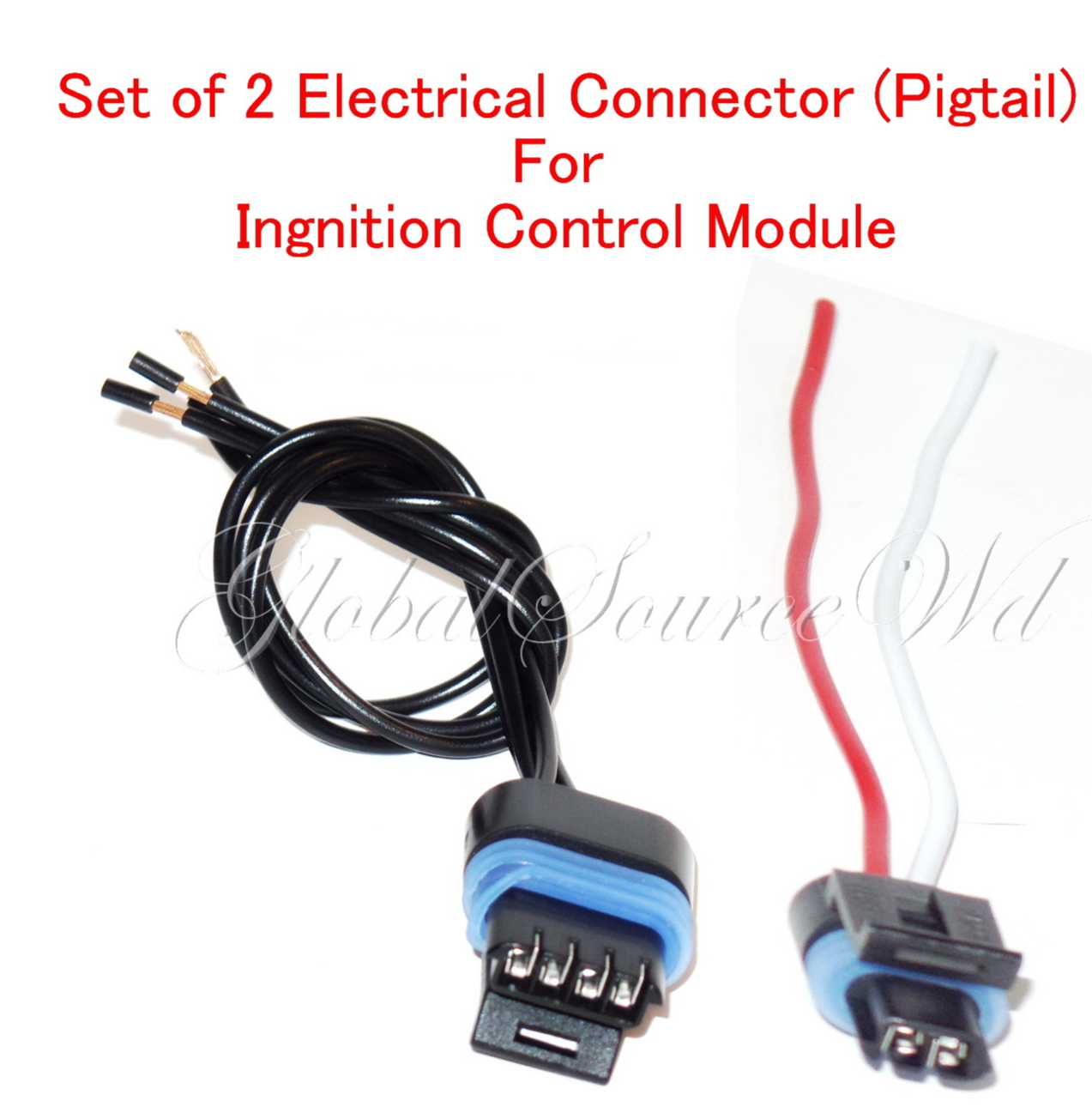

2 x Electrical Connectors TX3A S551
(Pigtail Wiring Harness)
======================
Part#
Part#
ILX340
EC1133
EC1176
========
Crons-Reference
10482828
10482829
16139379
1989747
27039
33024
5744006
D1980
6H1018
DR133
LX339
LX340
LX363
========
Specification
of 1st Connector
|
- ===========================
- Specifications
- of 2nd Connector
Connector Gender Male Connector Quantity 1 Terminal Gender Female Terminal Quantity 4 Terminal Type 4 Blade Terminals Wire Quantity 4
====================
Fits
| ASUNA | GT | 1993 |
| ASUNA | SE | 1993 |
| BUICK | CENTURY | 1985-1986 |
| BUICK | SKYLARK | 1985-1986 |
| BUICK | SOMERSET | 1986 |
| BUICK | SOMERSET REGAL | 1985 |
| CADILLAC | CIMARRON | 1985-1986 |
| CHEVROLET | ASTRO | 1985-1990 |
| CHEVROLET | CAMARO | 1985-1986 |
| CHEVROLET | CAVALIER | 1985 |
| CHEVROLET | CELEBRITY | 1985-1986 |
| CHEVROLET | CITATION II | 1985 |
| CHEVROLET | LLV | 1991-1993 |
| CHEVROLET | S10 PICKUP | 1991-1993 |
| GMC | SAFARI | 1985-1990 |
| GMC | SONOMA | 1992-1993 |
| OLDSMOBILE | CALAIS | 1985-1986 |
| OLDSMOBILE | CUTLASS CIERA | 1985-1986 |
| OLDSMOBILE | FIRENZA | 1985-1986 |
| PONTIAC | 6000 | 1985-1986 |
| PONTIAC | FIERO | 1985-1986 |
| PONTIAC | FIREBIRD | 1985-1986 |
| PONTIAC | GRAND AM | 1985-1986 |
| PONTIAC | J2000 | 1985 |
| PONTIAC | LEMANS | 1989-1993 |
============================
Location:
The Ignition Coil is located near the distributor in older applications, on top of the ignition control module in distributor-less ignition systems or as a coil-on-plug or coil-near-plug in
For What: The Ignition Coil supplies the needed voltage required to fire the spark
plug and complete the ignition cycle. The secondary output voltage from the ignition coil
is generated when the voltage in the ignition coil primary circuit is momentarily shorted
to ground and then open circuited. The magnetic field within the coil collapses when the
circuit opens inducing the voltage into the ignition coils secondary winding. The primary
circuit is controlled by the opening of the points or electronically by the Ignition Control
Module or PCM/ECM in newer applications. newer applications.
Failure Symptoms: Malfunction Indicator Light (MIL) illumination, failed emission test,
misfire condition, hard starting, no start, engine hesitation.
============================================================
