You Are Buying
Brand: ISUMO
Aftermarket Premium High Quality

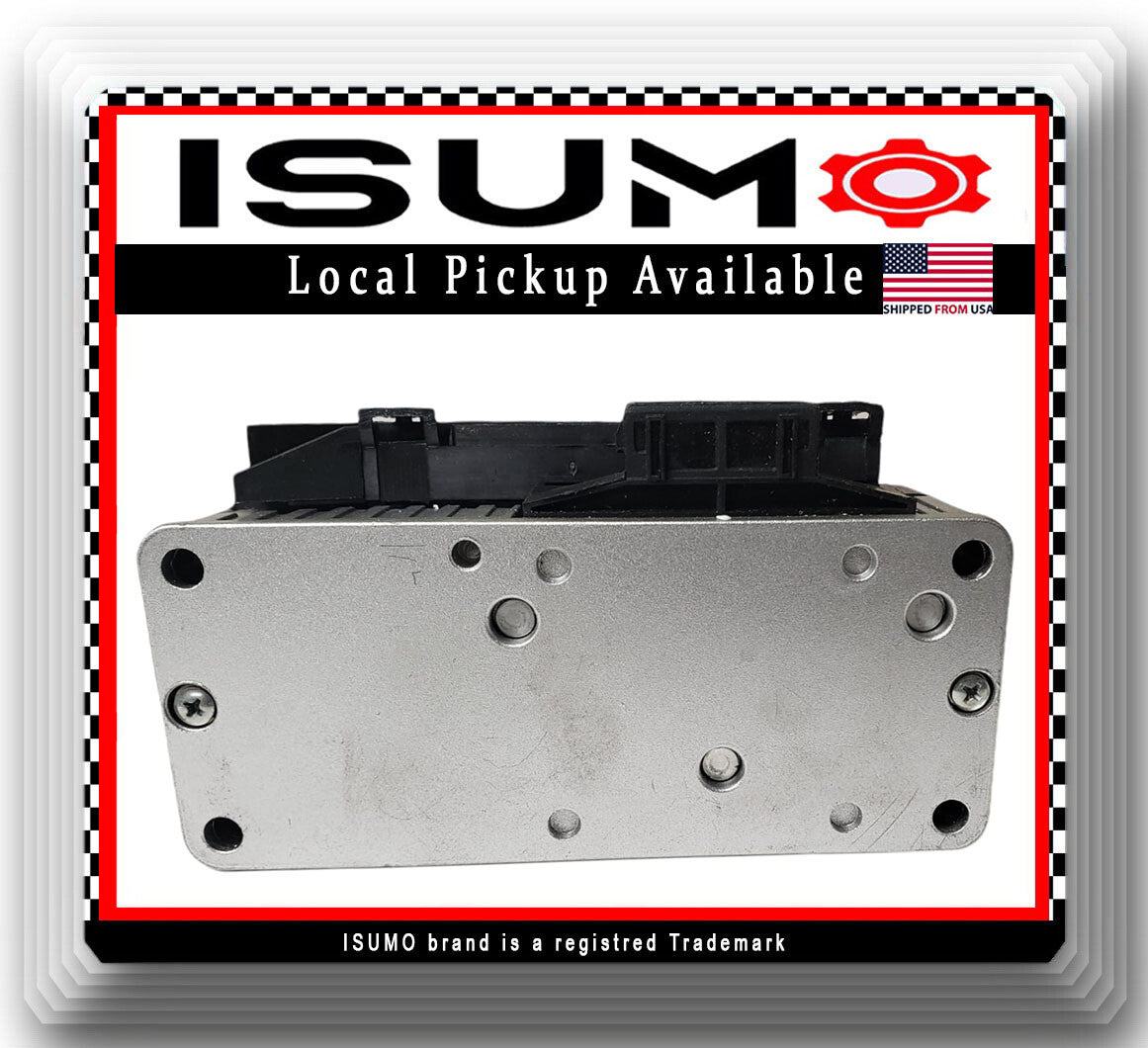

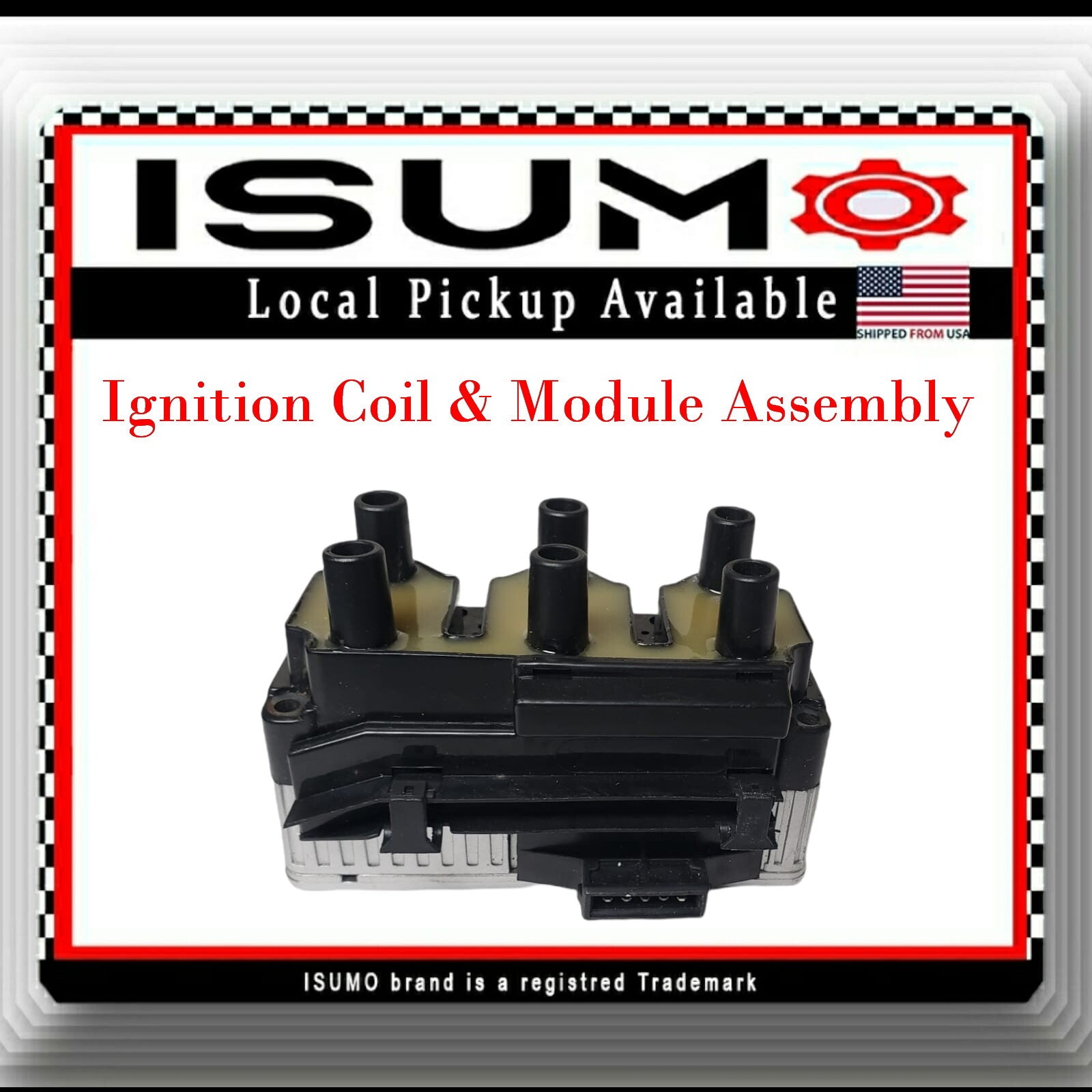

Ignition Coil & Module Assembly
Quantity: 1 Unit
=============
Part#
021905106C
===========
Cross-Reference
UF338
IFU338
C338
C669
48671
5C1315
GN10469
1788326
178-8326
5023
V1070008
============
Specifications:
| Category | Ignition Control Unit |
| Attachment Method | Bolt On |
| Coil Included | Yes |
| Color | Black |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Grease Pack | No |
| Hardware Included | No |
| Ignition Type | Pack |
| Instructions Included | No |
| Mounting Bracket(s) Included | Yes |
| Mounting Location | External |
| Terminal Gender | Male |
| Terminal Quantity | 5 |
| Terminal Type | Blade |
| Voltage | 12 |
=============================
Fits:
| VOLKSWAGEN | GOLF | 1999-2003 |
| VOLKSWAGEN | JETTA | 1999-2002 |
=======================
The Ignition Coil is located near the distributor in older applications, on top of the ignition control module in distributor-less ignition systems or as a coil-on-plug or coil-near-plug in
For What: The Ignition Coil supplies the needed voltage required to fire the spark
plug and complete the ignition cycle. The secondary output voltage from the ignition coil
is generated when the voltage in the ignition coil primary circuit is momentarily shorted
to ground and then open circuited. The magnetic field within the coil collapses when the
circuit opens inducing the voltage into the ignition coils secondary winding. The primary
circuit is controlled by the opening of the points or electronically by the Ignition Control
Module or PCM/ECM in newer applications. newer applications.
Failure Symptoms: Malfunction Indicator Light (MIL) illumination, failed emission test,
misfire condition, hard starting, no start, engine hesitation.
============================================================
Features & Benefits:
Their ignition coils use 100% pure copper windings in the primary and secondary bobbins to improve durability and provide higher resistance to internal shorts and dielectric breakdown
Their premium ignition coils consist of a special blended formula for the best performance, longest life and better heat dissipation
A full E-Lam core of silicon steel and solid brass high voltage terminals protects against corrosion. Their ignition coils are built for maximum output voltage
Primary and Secondary windings feature enamel magnet wire for the highest temperature rating in the aftermarket
As a tier I manufacturer with engineering and design capabilities second to none,
their ignition coils are made to the highest quality
========================================
