You Are Buying
Brand: ISUMO
Aftermarket Premium High Quality
Kit of

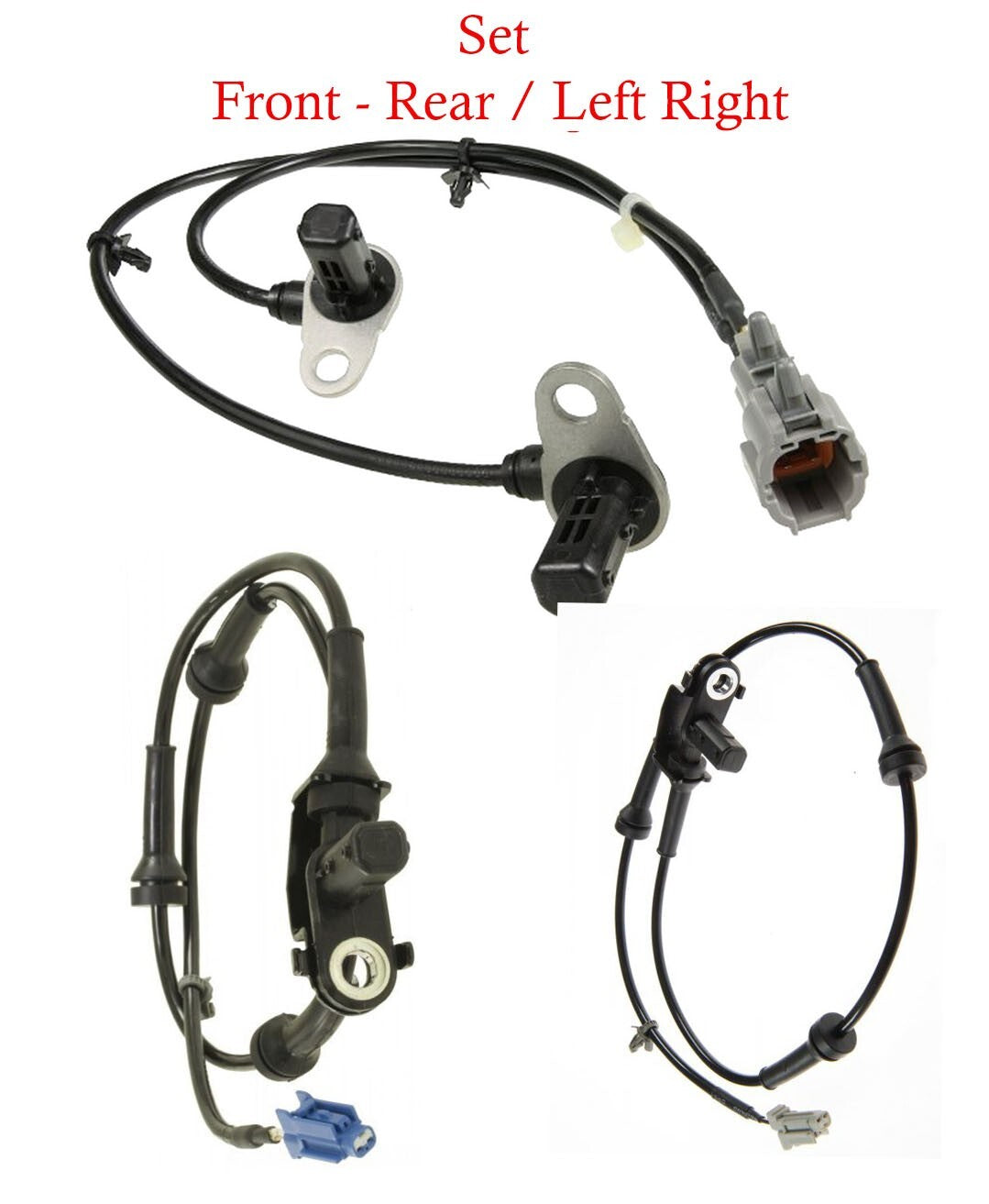

ABS Wheel Speed Sensor /
Front - Rear / Left & Right
=====================
Part#
Rear L/R 47900-AL505 X 1 Kit
Front Right 47910-AL50A x 1
Front Left 47911-AL50A x 1
====================
Cross-Reference

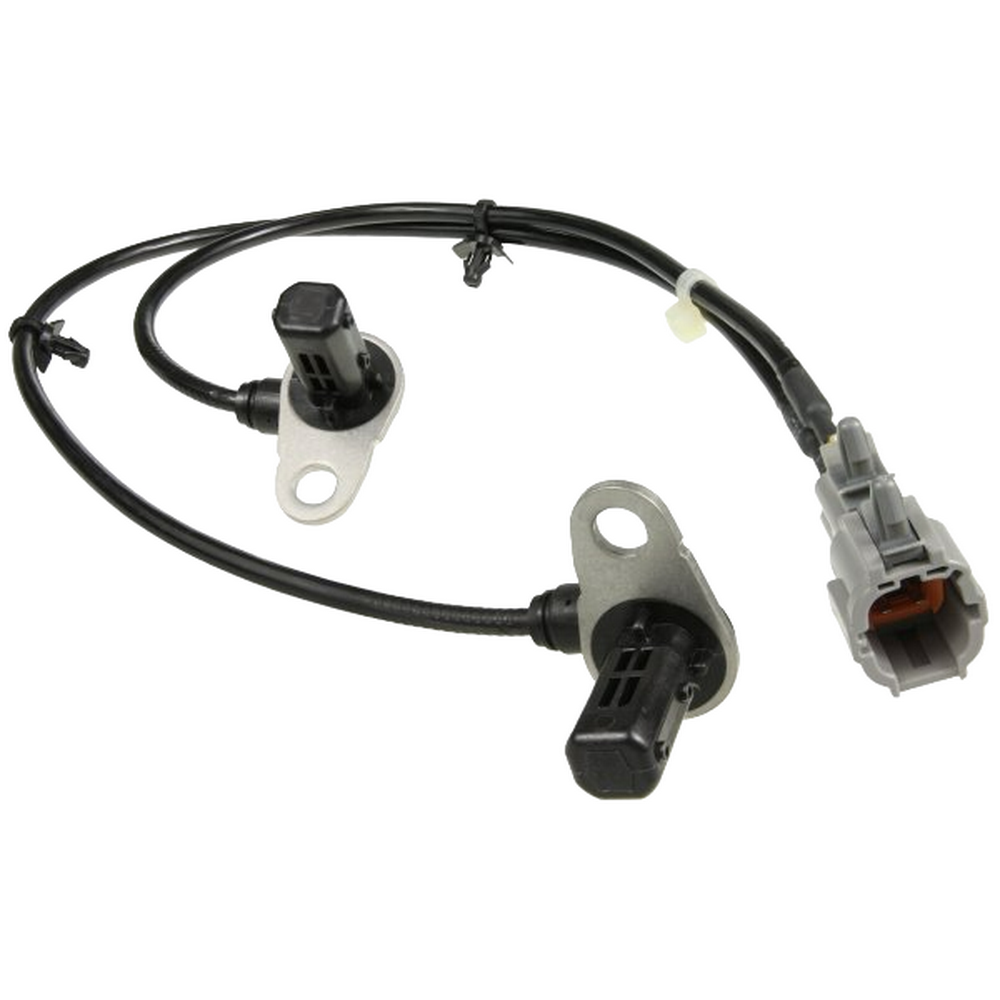

Rear L/R
47900-AL505
47900-AL50A
47900AL50A
47900AL500
ALS328
ALS3347RLR
2ABS0521
5S10708
AB0229
0844468
084-4468
V38720145
===========
Cross-Reference

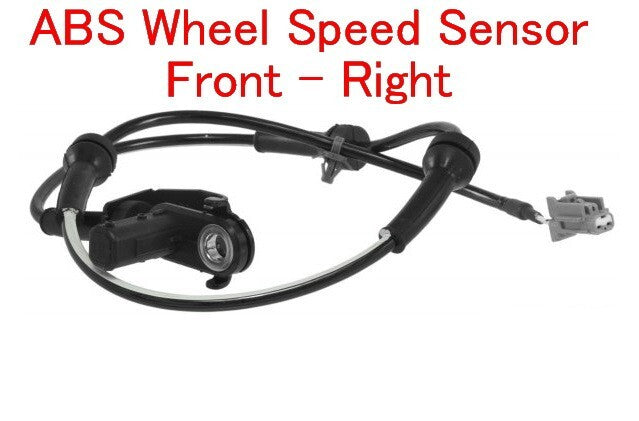

Front-Right
47910-AL50A
47910-AL505
47910AL50A
47910AL505
ALS329
ABS3347FR
2ABS0522
0844467
084-4467
695414
695-414
5S10707
AB0228
========
Cross-Reference

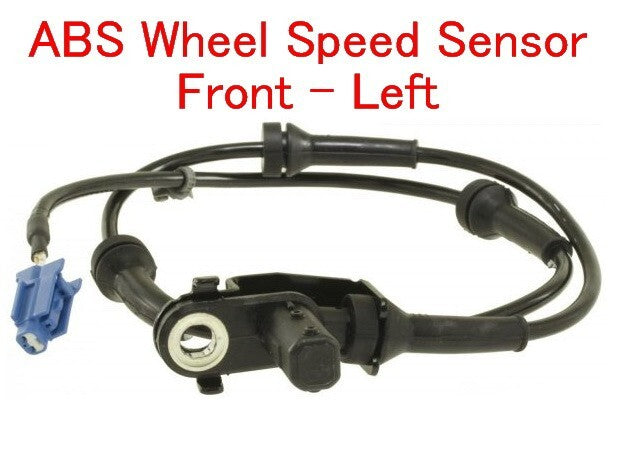

Front Left
47911-AL50A
47911-AL505
47911AL50A
47911AL505
ALS309
ABS3347FL
2ABS0653
V38720189
5S10706
AB0227
========
Specifications:
Category | ABS Wheel Speed Sensor |
Location | front - Rear / Left - Right |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Rectangular |
Harness Length Front - Left | 35 in / 889 mm |
Harness Length front - Right | 35 in / 889 mm |
Harness Length Rear - Left / Right | 21 in / 535 |
Mounting Location | Wheel |
Number of Bolt Holes | 1 |
Terminal Gender | Female |
Terminal Quantity | 2 |
Terminal Type | Blade |
==================================
Fits:
INFINITI | G35 | 2003-2006 |
NISSAN | 350Z | 2003-2009 |
==================================
The wheel speed sensor will be located at each individual wheel or on axle housing
on vehicles equipped with a solid axle. The speed sensor may be part of the wheel hub
bearing assembly or as an individual component where the sensor protrudes through the
bearing assembly or into the brake back plate.
What It Does: The wheel speed sensors are responsible for reporting individual wheel speed
to the Anti-Lock Brake Control Module. The wheel speed sensor can be an analog type
sensor or digital.
Failure Symptom: ABS brake light illumination, false activation of the ABS system due to an
inconsistent signal from a sensor
