You Are Buying
BRAND: ISUMO
Aftermarket Premium High Quality

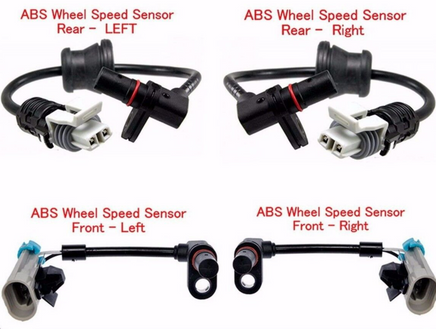

ABS Wheel Speed Sensor
Front - Rear / Left & Right
Set of 4 Kits
===========
Part#
Rear Left Right:56310-78J01
Front Left Right:56210-78J01
===========================
Cross-Reference
Rear L/R
96626080
ALS1747
5631078J00
5631078J01
ABS3379RLR
===========
Cross-Reference
Front L/R
5621078J00
19256115
5621078J01
ABS3379FLR
GT7610-847-FLR
============
Specifications:
|
Specifications:
|
|
| Location | Rear - Left / Right |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Harness Length - Rear Left / Right | 10.75 In / 273 mm |
| Harness Length - Front Left / Right | 2.5 In / 127 mm |
| Mounting Location | Axle |
| Mounting Type | Flange |
| Number of Bolt Holes | 1 |
| Terminal Gender | Female |
| Terminal Quantity | 2 |
| Terminal Type | Blade |
====================================
Fits:
| SUZUKI | XL-7 | 2007-2009 |
===========================================
The wheel speed sensor will be located at each individual wheel or on axle housing
on vehicles equipped with a solid axle. The speed sensor may be part of the wheel hub
bearing assembly or as an individual component where the sensor protrudes through the
bearing assembly or into the brake back plate.
What It Does: The wheel speed sensors are responsible for reporting individual wheel speed
to the Anti-Lock Brake Control Module. The wheel speed sensor can be an analog type
sensor or digital.
Failure Symptom: ABS brake light illumination, false activation of the ABS system due to an
inconsistent signal from a sensor
bearing assembly or as an individual component where the sensor protrudes through the
bearing assembly or into the brake back plate.
What It Does: The wheel speed sensors are responsible for reporting individual wheel speed
to the Anti-Lock Brake Control Module. The wheel speed sensor can be an analog type
sensor or digital.
Failure Symptom: ABS brake light illumination, false activation of the ABS system due to an
inconsistent signal from a sensor
============================
ABS WHEEL SPEED SENSOR
The Anti-Lock Brake System (ABS) sensor monitors wheel speed. Common failure symptoms include:
ABS Light On
Brake Pulsing
No / Erratic Traction or Stability Control
No / Erratic ABS Operation
Braking Without Pedal Contact
Located in 'Brake & Wheel Hub
=========================
