You Are Buying
Brand: ISUMO
Aftermarket Premium High Quality

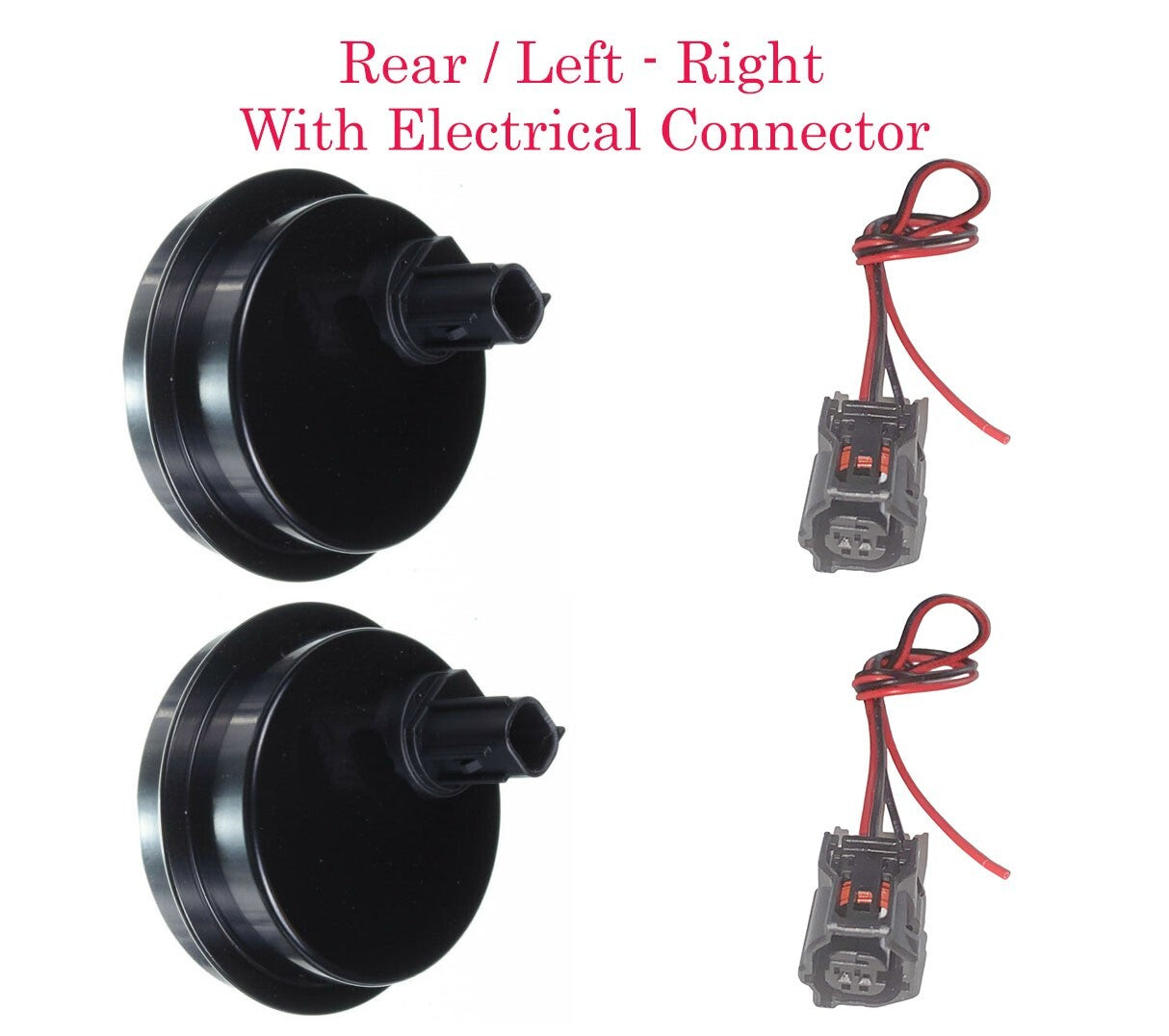

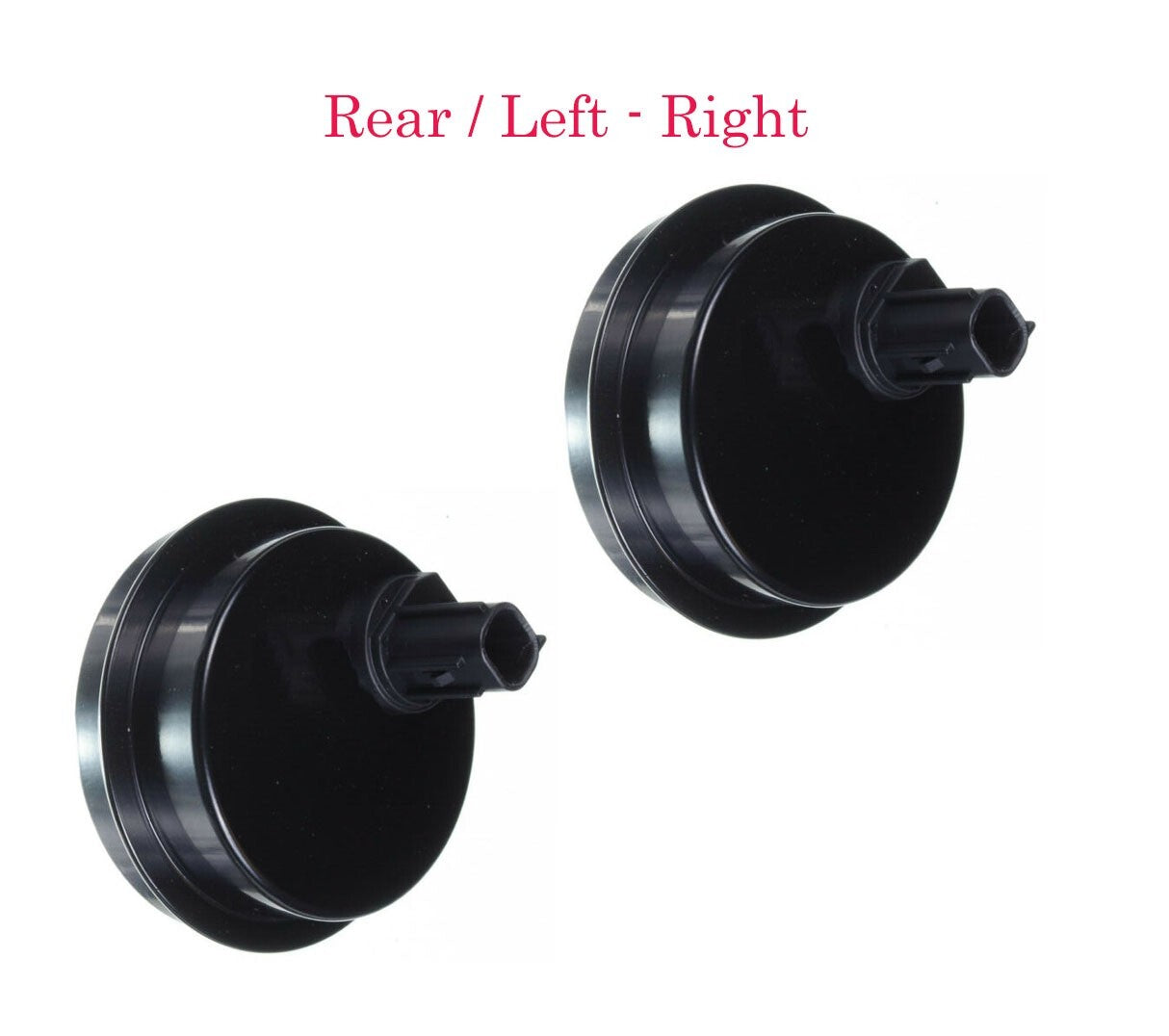

ABS Wheel Speed Sensor
With

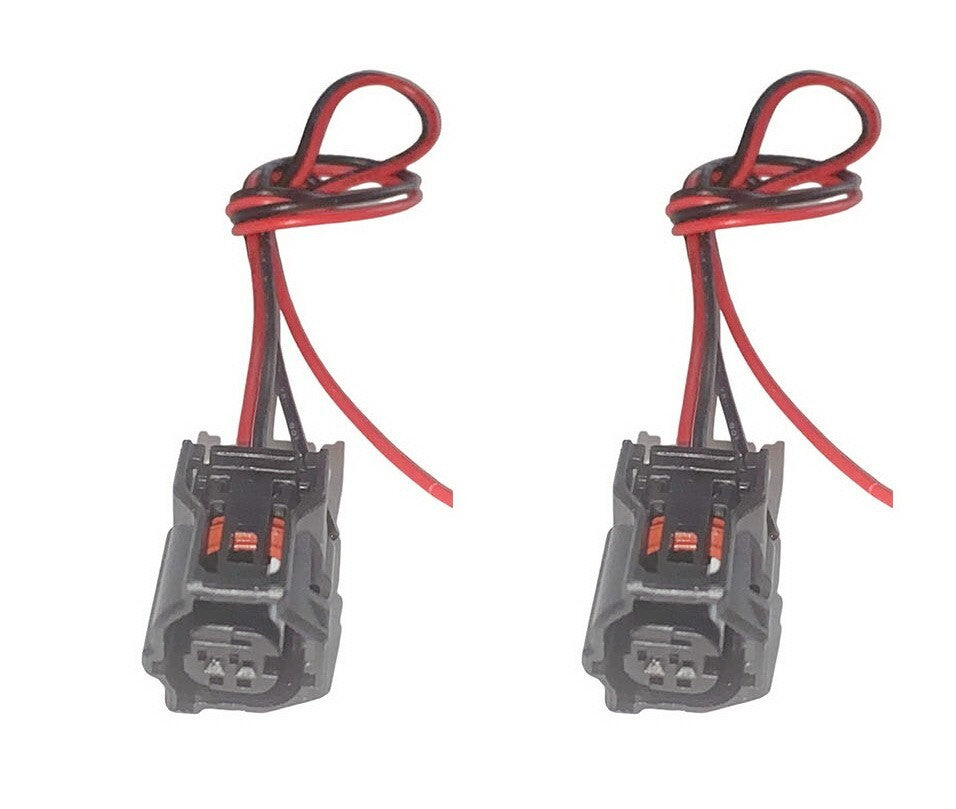

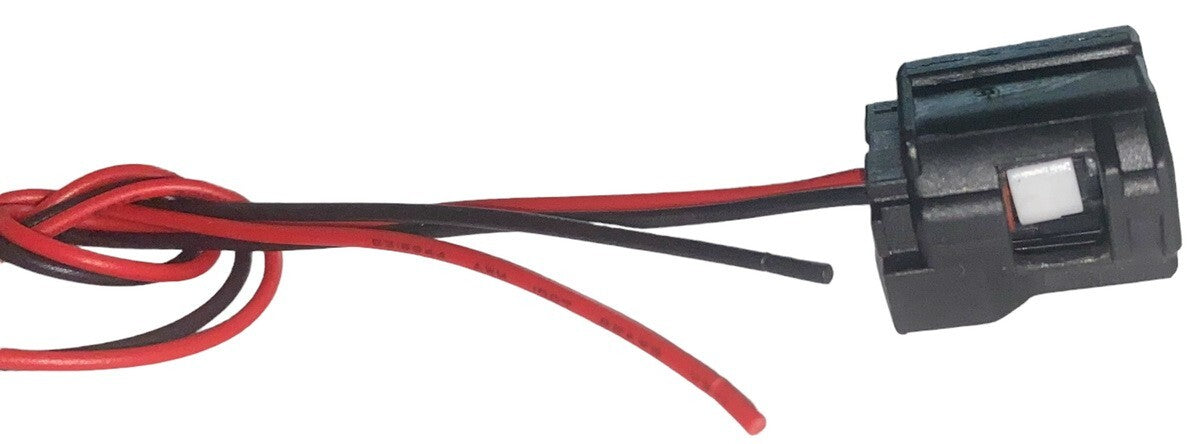

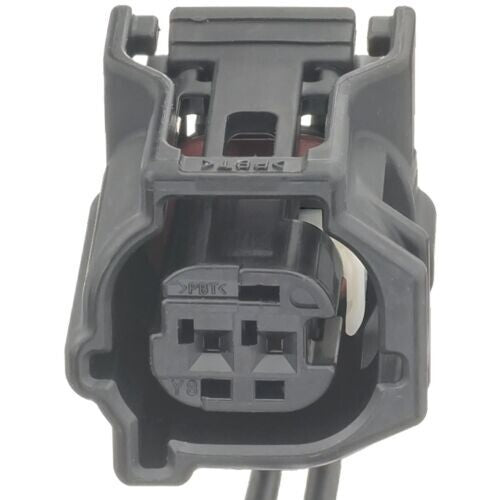

Electrical Connector
(Pigtail Wiring Harness)
Rear- Left / Right
Quantity: 2 Piece
Quantity Needed: 2 (1 Per Wheel)
===========================
Part#
89544-52040 X2
===========
Cross-Reference
89544-52040
89544-52070
8954452040
8954452070
ABS3407RLR
2ABS0469
SK695004
V70720201
0844280
084-4280
ALS1388
AB2120
5S8712
SU10174
695004
695-004
=======
Specifications:
| Category | ABS Wheel Speed Sensor |
| Location | Rear - Left / Right |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Mounting Location | Differential |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Blade |
| Connector Shape | Rectangular |
| Harness Length - Inches | No wire |
| Harness Length - mm | No wire |
| Number of Bolt Holes | 0 |
=================================
Fits:
| SCION | XB | 2008 |
| SCION | XD | 2008 |
| TOYOTA | COROLLA | 2009-2010 |
| TOYOTA | RAV4 | 2006-2008 |
| TOYOTA | PRIUS C | 2012-2016 |
| TOYOTA | YARIS | 2006-2011 |
===================================
ABS Wheel Speed Sensor
What It Does: The wheel speed sensors are responsible for reporting individual wheel speed to the Anti-Lock Brake Control Module. The wheel speed sensor can be an analog type sensor or digital. Location: The wheel speed sensor will be located at each individual wheel or on axle housing on vehicles equipped with a solid axle. The speed sensor may be part of the wheel hub bearing assembly or as an individual component where the sensor protrudes through the bearing assembly or into the brake back plate. Failure Symptom: ABS brake light illumination, false activation of the ABS system due to an inconsistent signal from a sensor Also Known As: Wheel sensor, speed sensor, brake sensor
==================================================================
