Brand: ISUMO
Aftermarket Premium High Quality
Set of 2 Pieces

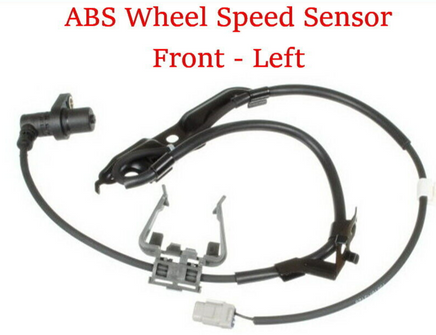

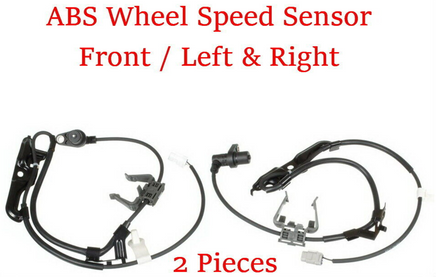

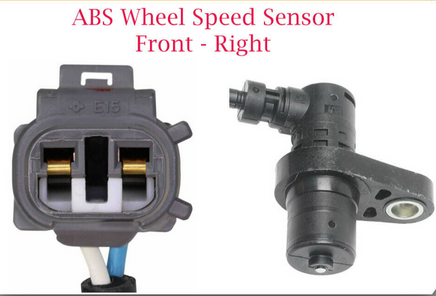

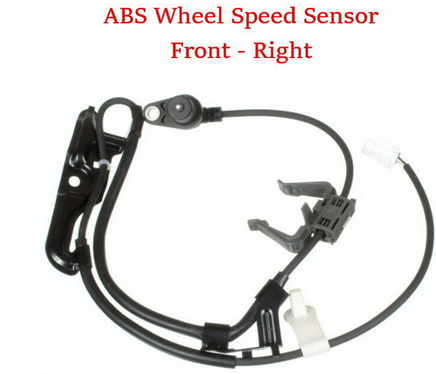

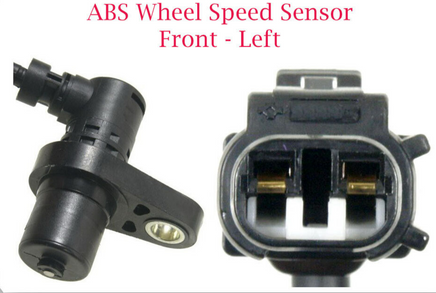

ABS Wheel Speed Sensor
Front - Left / Right =============
Part#
Front - Left: 89542-33090
Front - Right: 89543-33070
==========
Cross-Reference
Front - Right
8954233090
8954206010
8954207030
89542-33070
89542-33090
89542-06010
89542-07030
89542-33070
ALS1797
5S8668
2ABS0612
970404
970-404
0844824
084-4824
AB2018
V70720160
ABS3301FR
GT7610-427
==========
Cross-Reference
Front - Left
8954333080
8954306010
8954307030
89543-33070
89543-33080
89543-33090
89543-06010
89543-07030
8954333070
ALS1501
2ABS0617
970405
970405
0844823
084-4823
5S8695
AB2117
V70720191
GT7610-428
ABS3301FL
===========
Specifications:
| Category | ABS Wheel Speed Sensor |
| Location | Front - Left / Right |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Harness Length - Front Left | 36" / 914 MM |
| Harness Length - Front Right | 36" / 914 MM |
| Mounting Location | Spindle |
| Number of Bolt Holes | 1 |
| Terminal Gender | Female |
| Terminal Quantity | 2 |
| Terminal Type | Blade |
====================================
Fits:
| LEXUS | ES300 | 2002-2003 |
| LEXUS | ES330 | 2004-2006 |
| LEXUS | ES350 | 2007-2012 |
| TOYOTA | AVALON | 2005-2012 |
| TOYOTA | CAMRY | 2002-2011 |
| TOYOTA | SOLARA | 2004-2008 |
=============================
Location:
The wheel speed sensor will be located at each individual wheel or on axle housing
on vehicles equipped with a solid axle. The speed sensor may be part of the wheel hub
bearing assembly or as an individual component where the sensor protrudes through the
bearing assembly or into the brake back plate.
What It Does: The wheel speed sensors are responsible for reporting individual wheel speed
to the Anti-Lock Brake Control Module. The wheel speed sensor can be an analog type
sensor or digital.
Failure Symptom: ABS brake light illumination, false activation of the ABS system due to an
inconsistent signal from a sensor
on vehicles equipped with a solid axle. The speed sensor may be part of the wheel hub
bearing assembly or as an individual component where the sensor protrudes through the
bearing assembly or into the brake back plate.
What It Does: The wheel speed sensors are responsible for reporting individual wheel speed
to the Anti-Lock Brake Control Module. The wheel speed sensor can be an analog type
sensor or digital.
Failure Symptom: ABS brake light illumination, false activation of the ABS system due to an
inconsistent signal from a sensor
============================
ロケーション：
ホイールスピードセンサーは、個々のホイールまたはアクスルハウジングに配置されます
ソリッドアクスルを装備した車両。 スピードセンサーはホイールハブの一部である可能性があります
ベアリングアセンブリまたはセンサーが突き出ている個々のコンポーネントとして
ベアリングアセンブリまたはブレーキバックプレートに。
機能：ホイールスピードセンサーは、個々のホイールスピードを報告する役割を果たします
アンチロックブレーキコントロールモジュールに接続します。 ホイールスピードセンサーはアナログタイプにすることができます
センサーまたはデジタル。
故障症状：ABSブレーキライトの点灯、ABSシステムの誤作動による
センサーからの一貫性のない信号
Rokēshon: Hoīrusupīdosensā wa, koko no hoīru matawa akusuruhaujingu ni haichi sa remasu soriddoakusuru o sōbi shita sharyō. Supīdosensā wa hoīruhabu no ichibudearu kanōsei ga arimasu bearinguasenburi matawa sensā ga tsukidete iru koko no konpōnento to shite bearinguasenburi matawa burēkibakkupurēto ni. Kinō: Hoīrusupīdosensā wa, koko no hoīrusupīdo o hōkoku suru yakuwari o hatashimasu anchirokkuburēkikontorōrumojūru ni setsuzoku shimasu. Hoīrusupīdosensā wa anarogu taipu ni suru koto ga dekimasu sensā matawa dejitaru. Koshō shōjō: ABS burēkiraito no tentō,
ABS shisutemu no go sadō ni yoru sensā kara no ikkan-sei no nai shingō
=============================================================
Localización:
El sensor de velocidad de la rueda se ubicará en cada rueda individual o en la carcasa del eje.
en vehículos equipados con un eje macizo. El sensor de velocidad puede ser parte del cubo de la rueda.
conjunto de cojinetes o como un componente individual donde el sensor sobresale a través del
conjunto de cojinetes o en la placa trasera del freno.
Qué hace: los sensores de velocidad de las ruedas son responsables de informar la velocidad de las ruedas individuales
al módulo de control de frenos antibloqueo. El sensor de velocidad de la rueda puede ser de tipo analógico
sensor o digital.
Síntoma de falla: iluminación de la luz de freno del ABS, activación falsa del sistema ABS debido a una
señal inconsistente de un sensor
============================
