You Are Buying
Brand: ISUMO
Aftermarket Premium High Quality
Aftermarket Premium High Quality

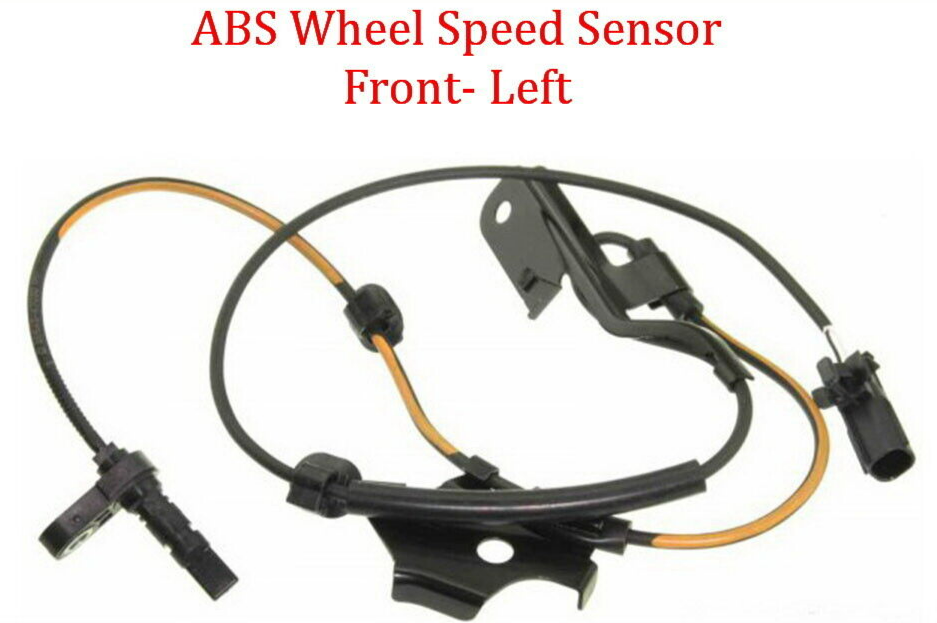

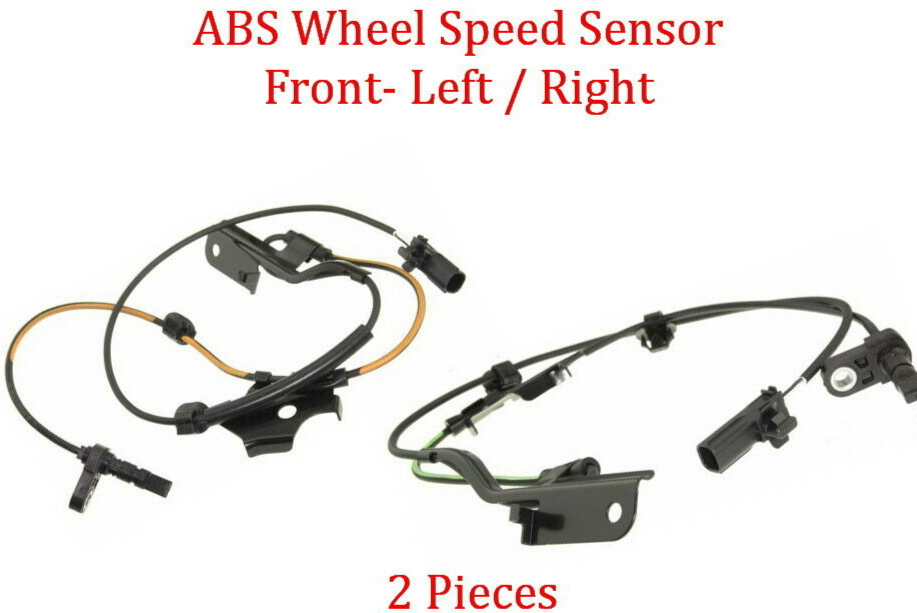

ABS Wheel Speed Sensor
Front - Left
Quantity: 1 Piece
Quantity Needed:1 Per Vehicle
==========================
Part#
Front-Left 89543-47030
Front-Right 89542-47030
====================
Cross Reference
Front-Left
8954347030
89543-47030
ALS2322
ABS3409FL
2ABS0891
V70720196
5S12853
SU14266
AB1026
========
Cross Reference
Front-Right
8954247030
89542-47030
ALS2321
ABS3409FR
2ABS0889
V70720180
5S12848
SU14261
AB1021
========
Specifications
| Category | ABS Wheel Speed Sensor |
| Location | Front - left / Right |

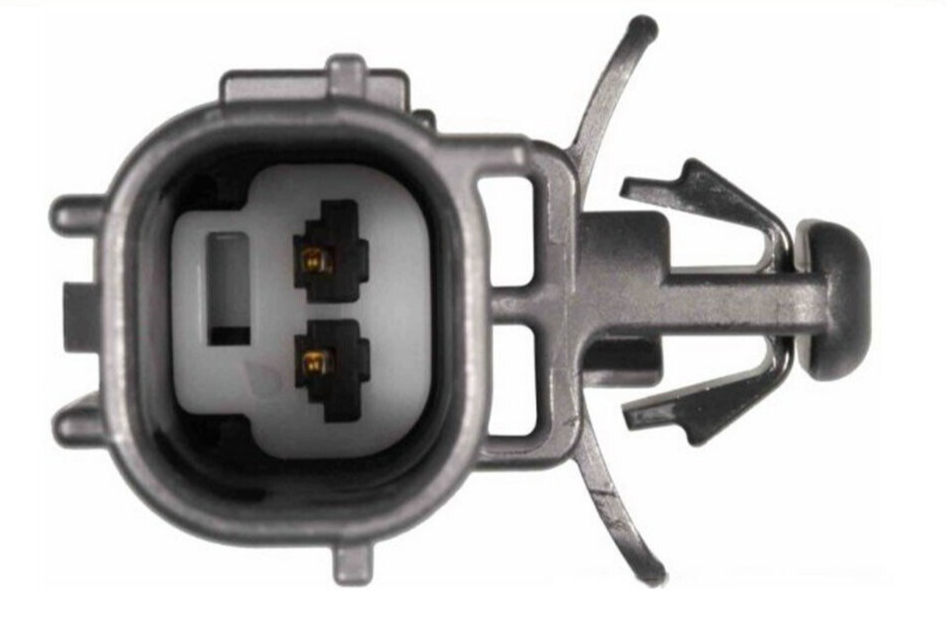

| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Shape | Square |
| Harness Length Left | 42 in / 1066 mm |
| Harness Length Right Mounting Hardware Included |
40 in / 1016 mm No |
| Mounting Location | Spindle |
| Mounting Type | Flange |
| Number of Bolt Holes | 2 |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Blade |
==============================
Fits:
| LEXUS | CT200H | 2011-2017 |
| TOYOTA | PRIUS | 2010-2015 |
| TOYOTA | PRIUS PLUG-IN | 2014-2015 |
===================================
The wheel speed sensor will be located at each individual wheel or on axle housing
on vehicles equipped with a solid axle. The speed sensor may be part of the wheel hub
bearing assembly or as an individual component where the sensor protrudes through the
bearing assembly or into the brake back plate.
What It Does: The wheel speed sensors are responsible for reporting individual wheel speed
to the Anti-Lock Brake Control Module. The wheel speed sensor can be an analog type
sensor or digital.
Failure Symptom: ABS brake light illumination, false activation of the ABS system due to an
inconsistent signal from a sensor
bearing assembly or as an individual component where the sensor protrudes through the
bearing assembly or into the brake back plate.
What It Does: The wheel speed sensors are responsible for reporting individual wheel speed
to the Anti-Lock Brake Control Module. The wheel speed sensor can be an analog type
sensor or digital.
Failure Symptom: ABS brake light illumination, false activation of the ABS system due to an
inconsistent signal from a sensor
===========================
