You Are Buying
Brand: ISUMO
===============================
Aftermarket Premium High Quality

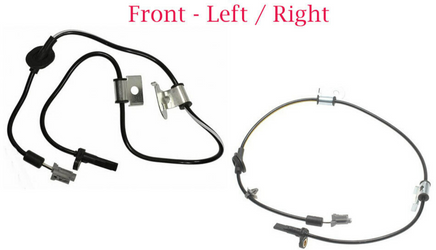

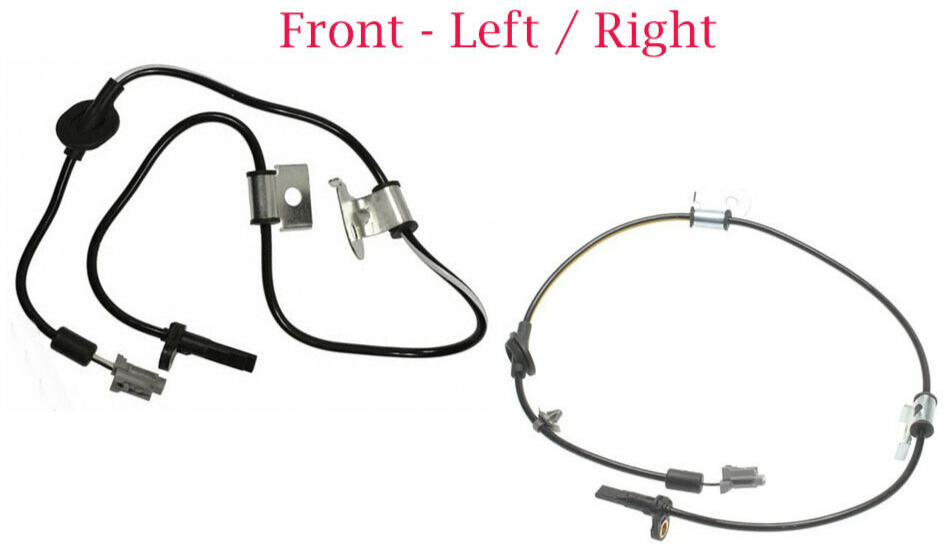

ABS Wheel Speed Sensor
Front - Left / Right
Quantity:2 Piece
Quantity Needed: 1 Per Wheel
=========================
Part#

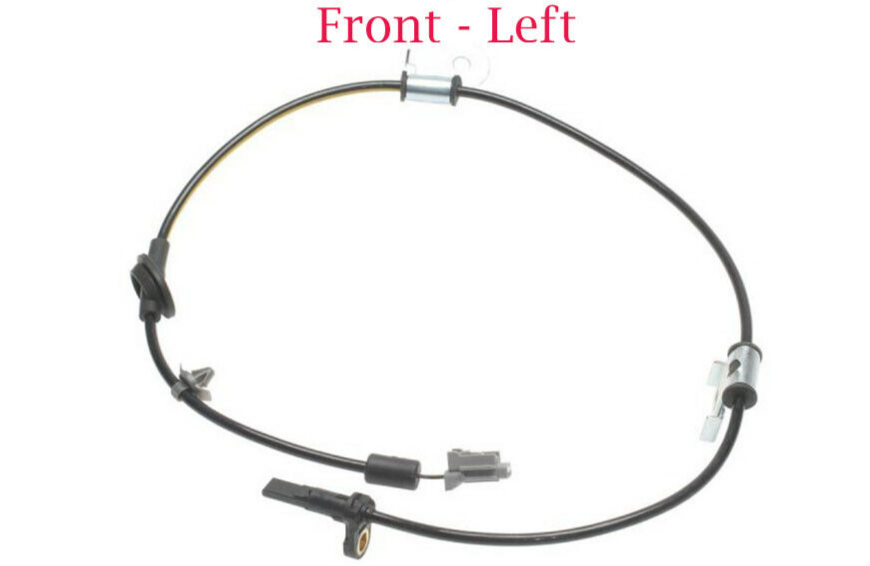

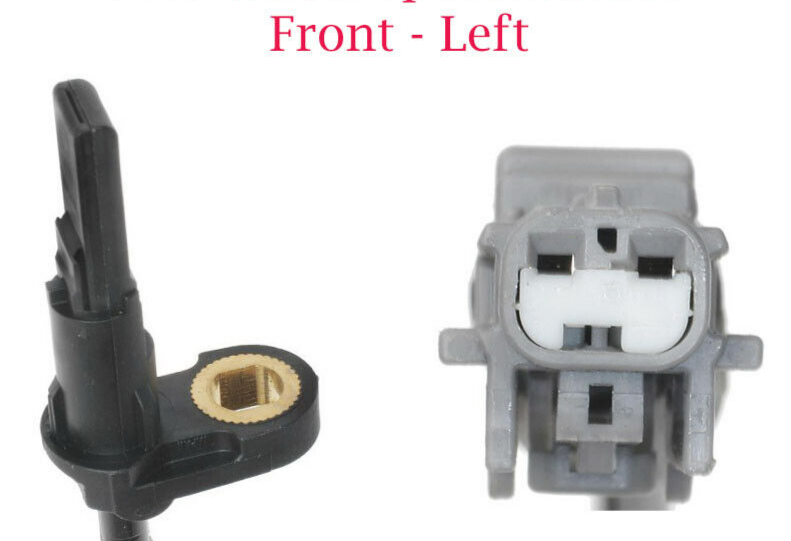

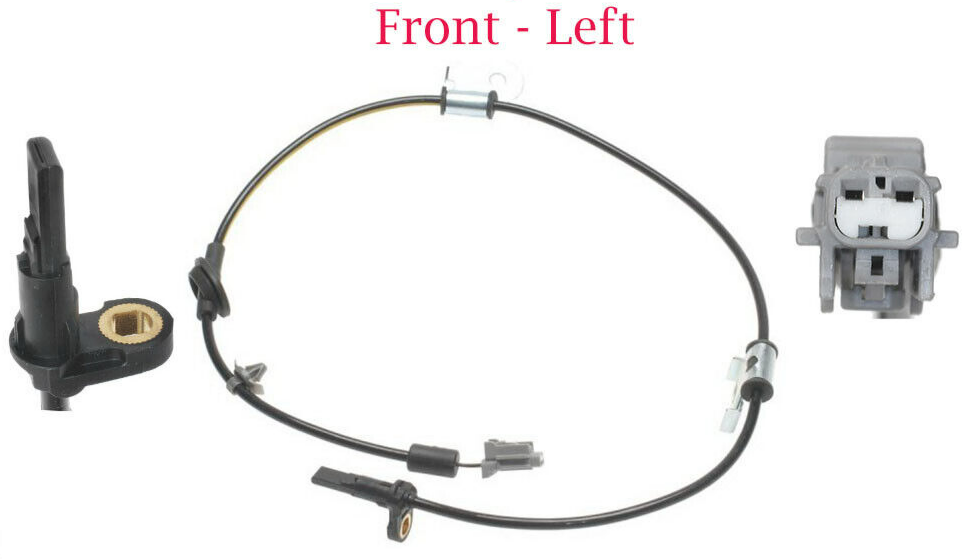

Front - Left 27540-AG110

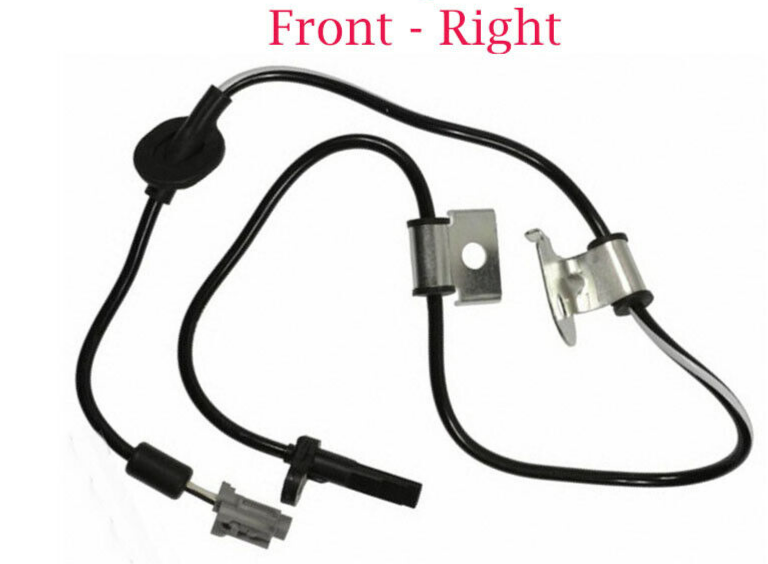

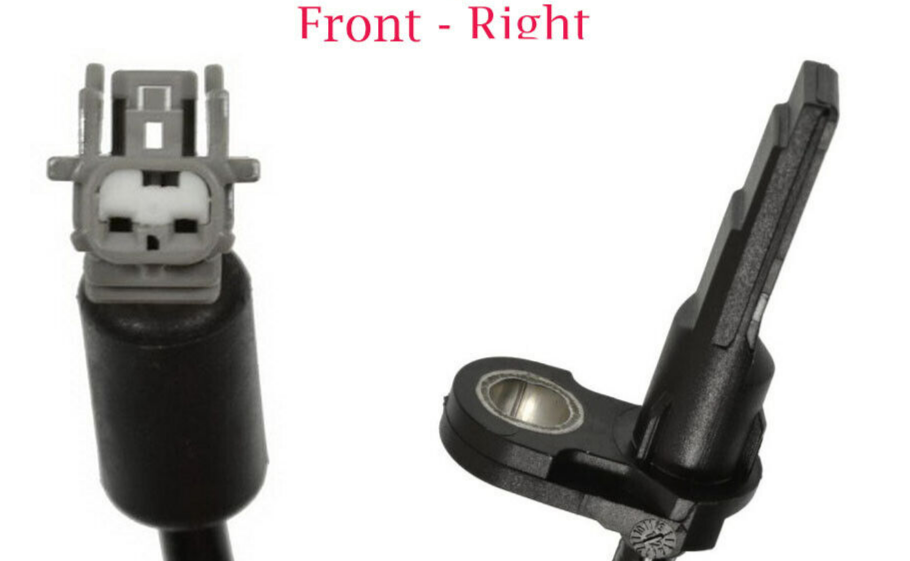

Front - Right 27540-AG100
===================
Cross-Reference
Front - Right
2ABS1109
5S11307
ALS1585
ABS3422FR
AB0707
27540-AG100
27540AG101
27540-G101
===========
Cross-Reference
Front - Left
2ABS1110
5S11307
ALS1590
ABS3422FL
AB0707
27540-AG110
27540AG110
27540-AG111
===========
Specifications:
| Category | ABS Wheel Speed Sensor |
| Location | Front / Right |
| Connector Color | Grey |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Harness Length Left | 34.50 " / 876.3 mm |
| Harness Length - Right | 34.50" / 876.3 mm |
| Mounting Location | Spindle |
| Mounting Type | Flange |
| Number of Bolt Holes | 2 |
| O.E.M. Replacement | Yes |
| Terminal Gender | Female |
| Terminal Quantity | 2 |
| Terminal Type | Blade |
| Wiring Harness Included | Yes |
============================
Fits:
| SUBARU | FORESTER | 2009-2013 |
| SUBARU | IMPREZA | 2008-2013 |
| SUBARU | IMPREZA R | 2009-2011 |
| SUBARU | IMPREZA SPORT | 2008-2011 |
| SUBARU | OUTBACK | 2009 |
| SUBARU | TRIBECA | 2014 |
| SUBARU | WRX | 2014 |
| SUBARU | WRX STI | 2014 |
The wheel speed sensor will be located at each individual wheel or on axle housing
on vehicles equipped with a solid axle. The speed sensor may be part of the wheel hub
bearing assembly or as an individual component where the sensor protrudes through the
bearing assembly or into the brake back plate.
What It Does: The wheel speed sensors are responsible for reporting individual wheel speed
to the Anti-Lock Brake Control Module. The wheel speed sensor can be an analog type
sensor or digital.
Failure Symptom: ABS brake light illumination, false activation of the ABS system due to an
on vehicles equipped with a solid axle. The speed sensor may be part of the wheel hub
bearing assembly or as an individual component where the sensor protrudes through the
bearing assembly or into the brake back plate.
What It Does: The wheel speed sensors are responsible for reporting individual wheel speed
to the Anti-Lock Brake Control Module. The wheel speed sensor can be an analog type
sensor or digital.
Failure Symptom: ABS brake light illumination, false activation of the ABS system due to an
inconsistent signal from a sensor
============================
