You Are Buying
Brand: ISUMO
Aftermarket Premium High Quality
LR024202

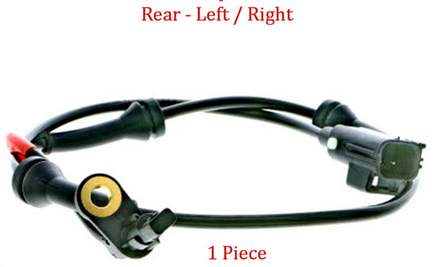

ABS Wheel Speed Sensor
Rear - Left / Right
Quantity:1 Piece
(Quantity Needed: 2 (1 Per Wheel)
============================
PART#
Rear - L/R
LR024202LR071974
ALS2740
2ABS3197
V40720052
ABS3426FLR
============
Specifications:
| Category | ABS Wheel Speed Sensor |
| Location | Front - Left / Right |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Shape | Square |
| Harness Length (inches) | 33 |
| Harness Length (mm) | 830 |
| Mounting Location | On Transmission |
| Mounting Type | Bolt Mount |
| Number of Bolt Holes | 1 |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Blade |
=====================================
Fits:
|
=============================================
The wheel speed sensor will be located at each individual wheel or on axle housing
on vehicles equipped with a solid axle. The speed sensor may be part of the wheel hub
bearing assembly or as an individual component where the sensor protrudes through the
bearing assembly or into the brake back plate.
What It Does: The wheel speed sensors are responsible for reporting individual wheel speed
to the Anti-Lock Brake Control Module. The wheel speed sensor can be an analog type
sensor or digital.
Failure Symptom: ABS brake light illumination, false activation of the ABS system due to an
on vehicles equipped with a solid axle. The speed sensor may be part of the wheel hub
bearing assembly or as an individual component where the sensor protrudes through the
bearing assembly or into the brake back plate.
What It Does: The wheel speed sensors are responsible for reporting individual wheel speed
to the Anti-Lock Brake Control Module. The wheel speed sensor can be an analog type
sensor or digital.
Failure Symptom: ABS brake light illumination, false activation of the ABS system due to an
inconsistent signal from a sensor
===========================
